Simhub
About the Simhub PCB
Simhub is an open source PCB design by dogman1214, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 60.5 mm, with 14 components from 3 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 13 switches and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

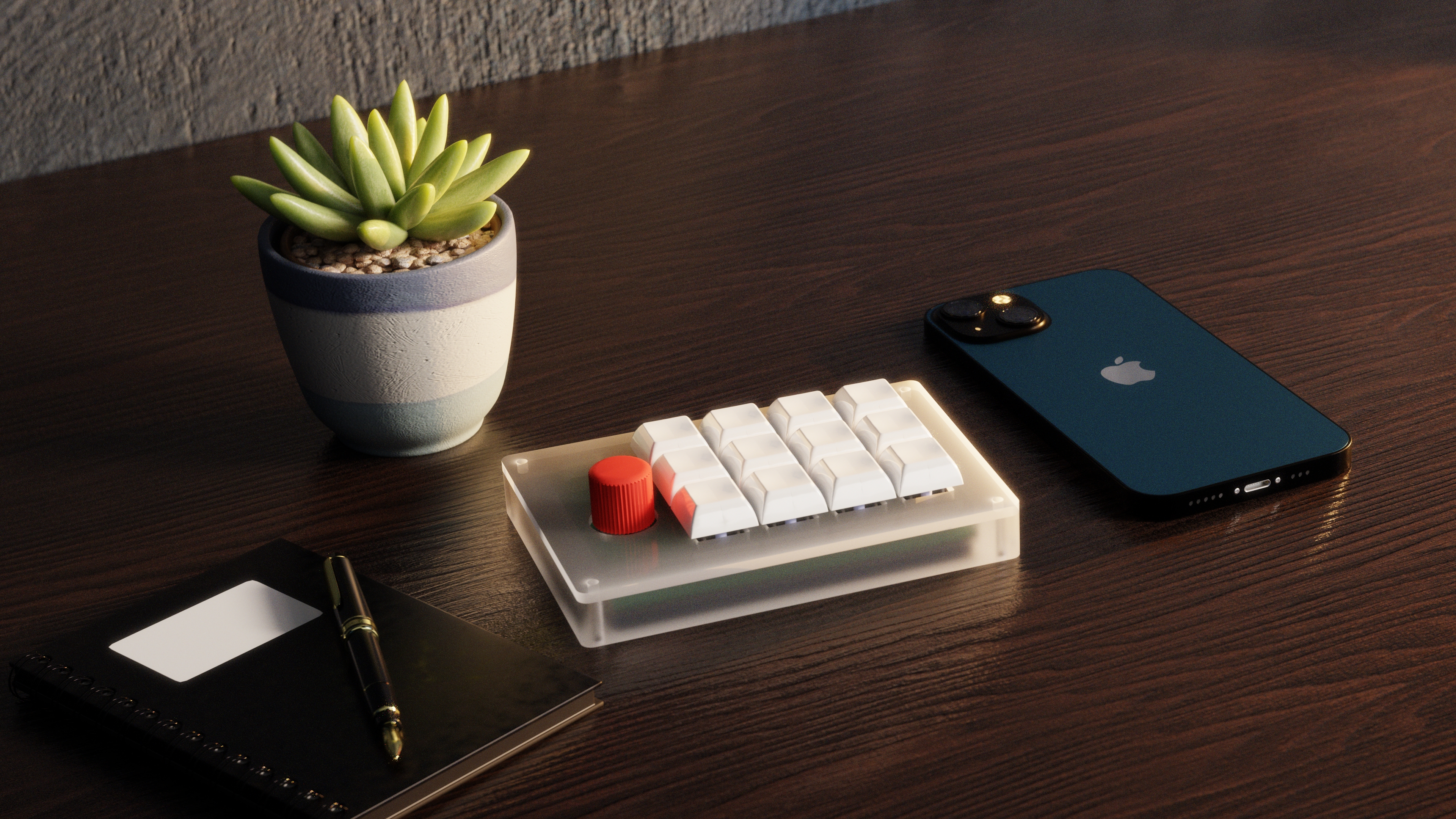

A custom-designed macropad for my sim-racing use, and for general purpose as well.
Everything is secured in place with 4 M3 screws and bolts, with the bolts serving a dual purpose as the base legs. The case is to be 3d-printed, along with the knob for the rotary encoder.
To swap between custom in-game keyboard usage and a normal numpad style keyboard, click down on the rotary encoder.
Main components on the Simhub
Simhub bill of materials (BOM)
14 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 12 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +4 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW17 |
Simhub design files
The KiCad project lives in the dogman1214/Simhub repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/simhubb.kicad_pcb
- Schematicpcb/simhubb.kicad_sch
- BOMBOM.csv
Simhub: common questions
How big is the Simhub PCB?
The Simhub measures 100 × 60.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Simhub?
14 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Simhub design files?
From the dogman1214/Simhub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Simhub design in my own project?
Yes, under the terms of its MIT license, which dogman1214 chose for the repository.
