NFC-card
About the NFC-card PCB
NFC-card is an open source PCB design by dragonruler1000, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 85.6 × 54 mm, with 4 components from 4 distinct parts.
Other key parts include the NT3H2111W0FHKH. By type, the board carries 1 IC, 1 diode, 1 capacitor and 1 resistor.
From the project

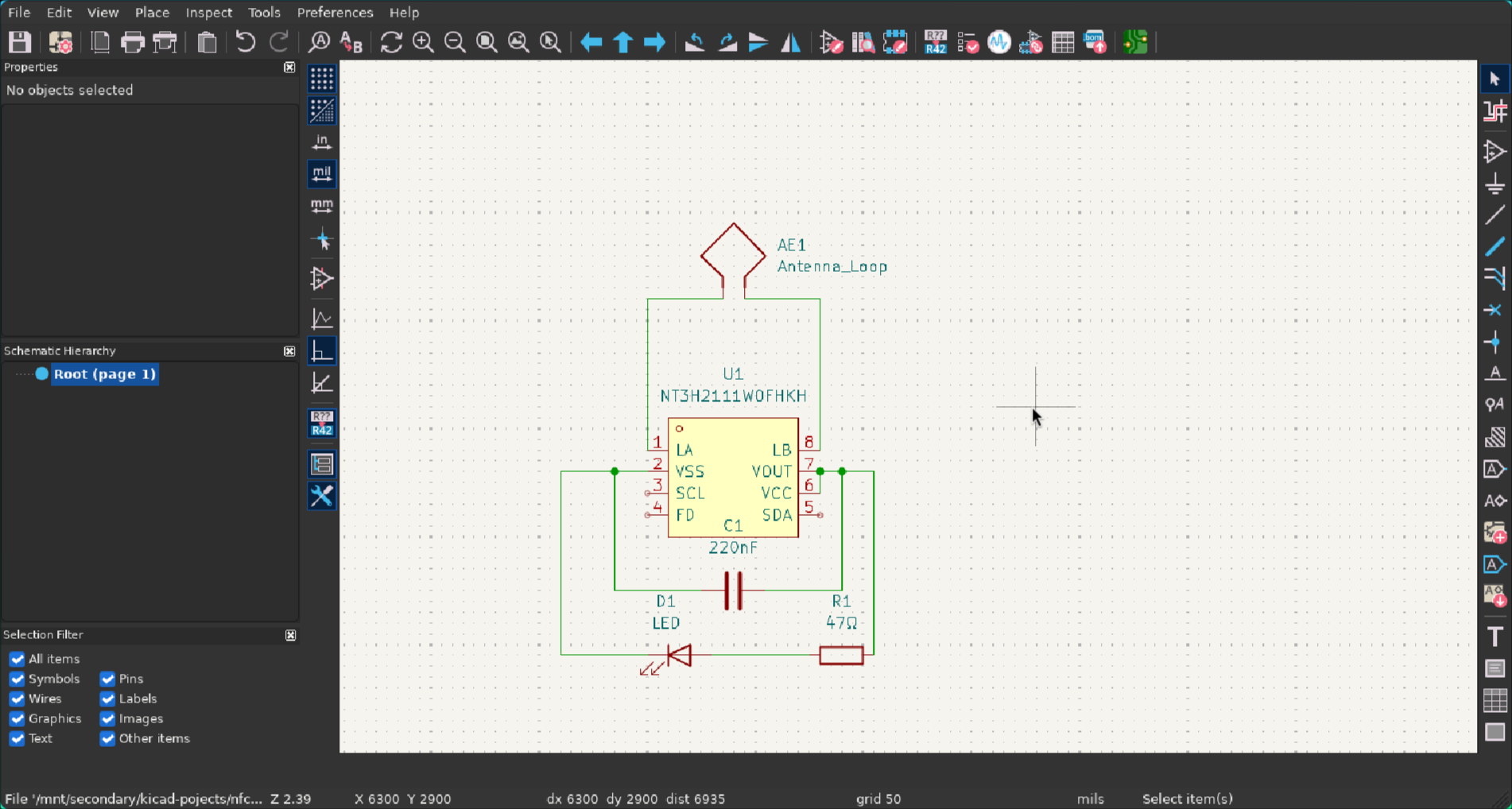

A NFC card to make sharing The Book of Mormon app easier
I have wanted to play around with NFC stuff for a while but just haven't got around to buying any NFC cards or pucks and i though i've been invited to share The Book of Mormon so i might as well make a custom NFC card to make sharing it easier.
To use this project all you need to do is order it as a PCBA (unless you want to hand solder smd componets) using the components listed in the BOM. Then when it arrives you can use it like any NFC card. so program it via NFC tools or another NFC programming app and use a nfc enabled phone to read the nfc card.
Main components on the NFC-card
NFC-card bill of materials (BOM)
4 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NT3H2111W0FHKH | TSSOP-8_L3.0-W3.0-P0.65-LS4.9-BL | U1 |
| 1 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 1 | 220NF 220nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1 |
| 1 | 47Ω | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1 |
NFC-card design files
The KiCad project lives in the dragonruler1000/NFC-card repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/nfc-card.kicad_pcb
- SchematicPCB/nfc-card.kicad_sch
- BOMPCB/production/bom.csv
