Puffer
About the Puffer PCB
Puffer is an open source PCB design by DuBento, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 116.1 × 92.5 mm, with 42 components from 9 distinct parts.
Other key parts include the nice_nano. By type, the board carries 18 switches, 18 diodes, 1 IC, 1 connector and 1 battery holder.
It belongs with the keyboards designs in this gallery.
From the project
Split Ergo Mechanical Keyboard

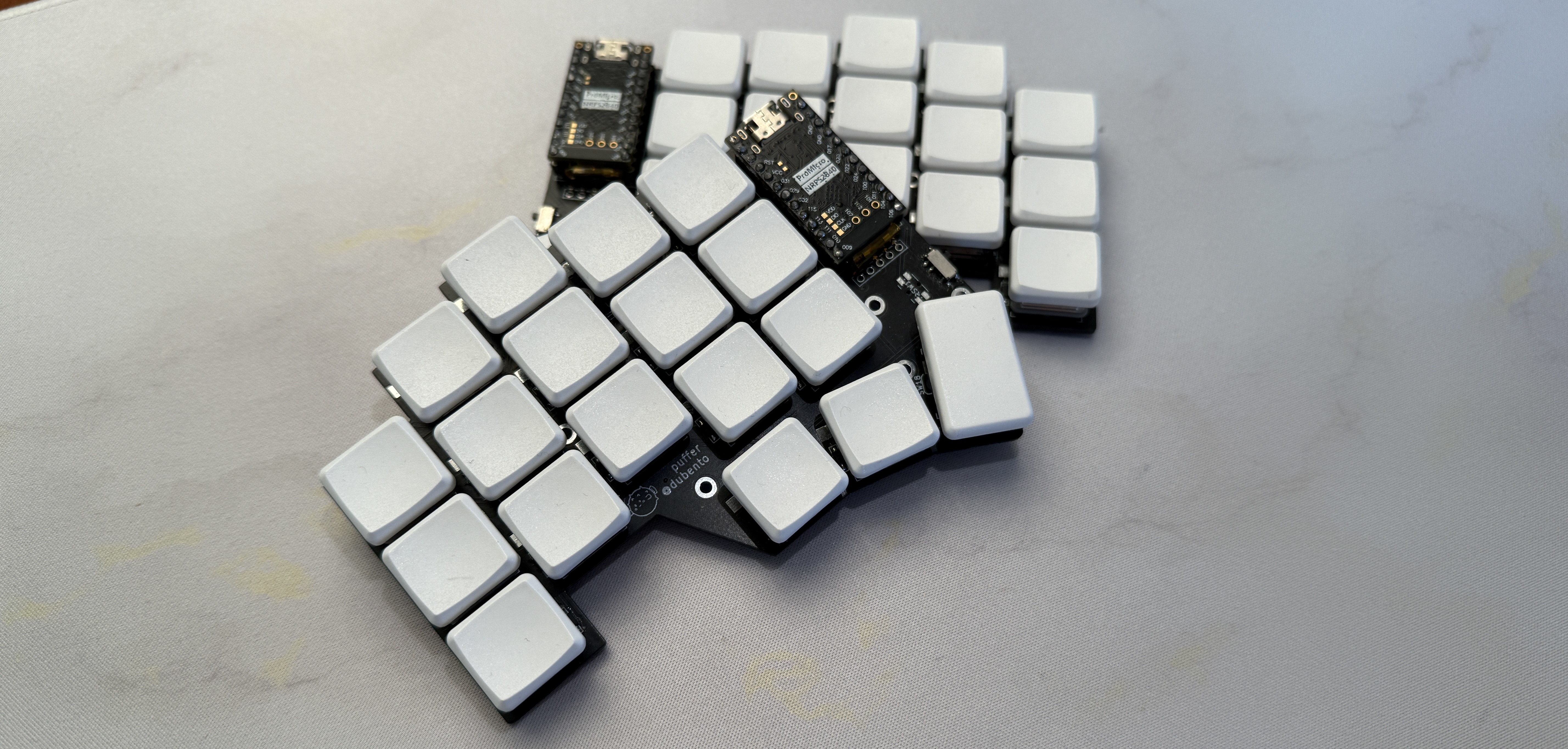

Wireless Ergo Split Mechanical Keyboard. Based on the temper keyboard, the Puffer has been upgraded for more comfortable use by those with larger hands.
- Increase spacing between keys, from choc spacing (18x17mm) to 19x18mm - Optional direct soldering of switches or hotswap pads - Added tenting puck support - Support for SMD Diodes only
- 36-key split keyboard 3 rows x 5 columns + 3 thumb keys per half - Wireless - Reversible PCB - Custom spacing 19x18mm - Nice!Nano (and similar) compatible
Main components on the Puffer
Puffer bill of materials (BOM)
42 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | nice_nano | ProMicro_jumpers | U1 |
| 1 | nice_view | nice_view_jumpers | J2 |
| 1 | Battery_Cell | Battery_pads_reversible | BT1 |
| 1 | SYM_Arrow45_Small | Tenting_puck | PUCK1 |
| 1 | SW_SPDT | power_switch_padreverse | PWR_SW1 |
| 1 | SW_PUSH | Panasonic_EVQPUL_EVQPUC_reversible | RSW1 |
| 15 | SW_PUSH | Kailh_socket_PG1350_optional_reversible_expanded | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +7 |
| 3 | SW_PUSH | Kailh_socket_PG1350_optional_reversible | SW16, SW17, SW18 |
| 18 | D | D3_SMD | D1, D2, D3, D4, D5, D6, D7, D8 +10 |
Puffer design files
The KiCad project lives in the DuBento/puffer repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/puffer.kicad_pcb
- Schematicpcb/puffer.kicad_sch
Puffer: common questions
How big is the Puffer PCB?
The Puffer measures 116.1 × 92.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Puffer?
42 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Puffer design files?
From the DuBento/puffer repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Puffer design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which DuBento chose for the repository.
