About the Testboardio PCB

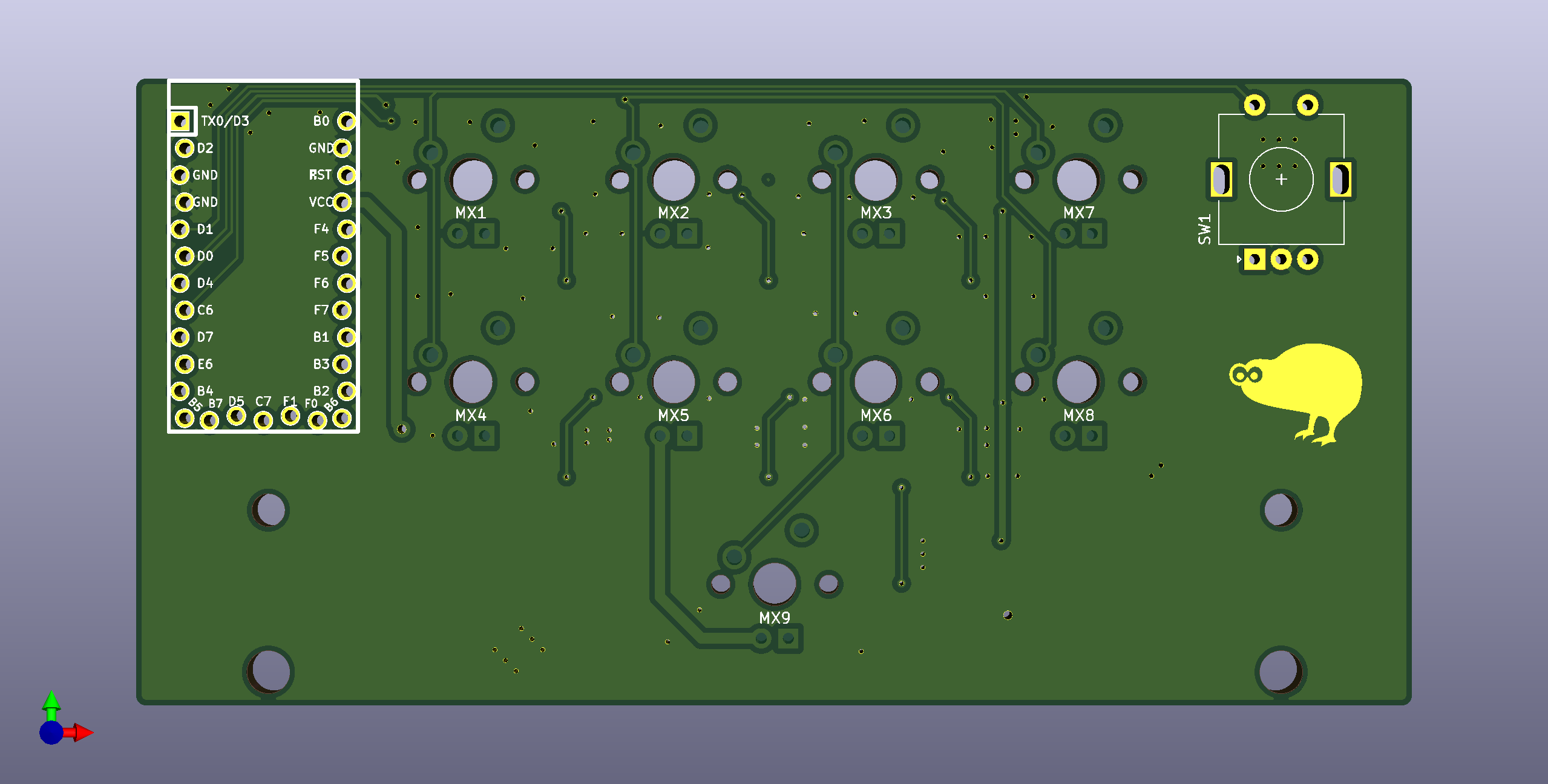

Testboardio is an open source PCB design by Duckle29, published on GitHub under the MIT license. It is a 2-layer board measuring 120 × 59 mm, with 33 components from 9 distinct parts.
Other key parts include the Elite-C. By type, the board carries 11 resistors, 10 diodes, 1 IC, 1 transistor and 1 switch.
It belongs with the keyboards designs in this gallery.
From the project
This is a simple example keyboard
This repository holds a small example keyboard, made for the purpose of the "add new keyboard" guide in QMK

Main components on the Testboardio
Testboardio bill of materials (BOM)
33 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Elite-C | Elite-C-ZigZag | U1 |
| 1 | Q_NMOS_GSD | SOT-23_Handsoldering | Q1 |
| 8 | MX-LED | MXOnly-1U | MX1, MX2, MX3, MX4, MX5, MX6, MX7, MX8 |
| 1 | MX-LED | MXOnly-6U-Centered | MX9 |
| 1 | Rotary_Encoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW1 |
| 10 | D_Small | D_SMA_Handsoldering | D1, D2, D3, D4, D5, D6, D7, D8 +2 |
| 9 | R_Small | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1, R2, R3, R4, R5, R6, R7, R8 +1 |
| 1 | 1k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R10 |
| 1 | 10k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R11 |
Testboardio design files
The KiCad project lives in the Duckle29/testboardio repository on GitHub; these links point at the commit this page was built from.
- Layouttestboardio.kicad_pcb
Testboardio: common questions
How big is the Testboardio PCB?
The Testboardio measures 120 × 59 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Testboardio?
33 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Testboardio design files?
From the Duckle29/testboardio repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Testboardio design in my own project?
Yes, under the terms of its MIT license, which Duckle29 chose for the repository.
