Interphase PCB layout, top view — open source board by Durburz
Simulate this board

About the Interphase PCB

Interphase is an open source PCB design by Durburz, published on GitHub under the MIT license. It is a 2-layer board measuring 142.2 × 132.1 mm, with 115 components from 13 distinct parts.

Other key parts include the Core51822B and MCP1640. By type, the board carries 66 diodes, 33 switches, 4 ICs, 4 capacitors, 4 resistors and 2 inductors.

It belongs with the keyboards designs in this gallery.

From the project

a mitosis clone with more keys!!1eleven

interphase is a open-source mechanical keyboard. Kudos to reversebias, as I got inspired by his fascinating mitosis keyboard (https://github.com/reversebias/mitosis-hardware). The only problem was the lack of keys for a full german layout + number row.

Therefor, interphase is a kind of ISO-compatible layout with some minor modifications.

Update on battery life: The AAA batteries (Duracell) per keyboard-half are still going strong. After 5 months of heavy usage at work, they only dropped to ~1.4V. Therefor the total lifetime of the batteries will be approximateley 1 - 1.5 years, as the…

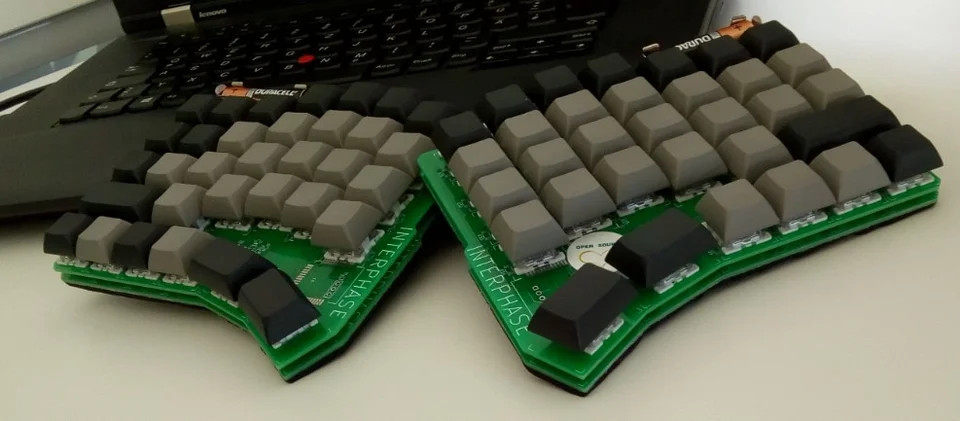

Interphase, from the project README
From the project README

Main components on the Interphase

Core51822BMCP1640

Interphase bill of materials (BOM)

115 components, 13 distinct parts.

QtyPartRefs
2
Core51822B
U1, U4
2
MCP1640
U2, U3
1
Conn_01x04_Male
J1
1
Battery_Cell
BT1
30
MOM-SPST
SW2, SW3, SW4, SW6, SW7, SW8, SW9, SW11 +22
1
MOM-SPST
SW5
2
MOM-SPST
SW26, SW31
66
D
D1, D2, D3, D4, D5, D6, D7, D8 +58
2
4,7µH
L1, L2
2
4,7µF
C1, C3
2
10µF
C2, C4
2
536K
R1, R6
2
309K
R2, R7

Interphase design files

The KiCad project lives in the Durburz/interphase repository on GitHub; these links point at the commit this page was built from.

Interphase: common questions

How big is the Interphase PCB?

The Interphase measures 142.2 × 132.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Interphase?

115 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Interphase design files?

From the Durburz/interphase repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Interphase design in my own project?

Yes, under the terms of its MIT license, which Durburz chose for the repository.
