PDNode-PDCard-4242 PCB layout, top view — open source STM32 board by DvidMakesThings

About the PDNode-PDCard-4242 PCB

PDNode-PDCard-4242 is an open source STM32 PCB design by DvidMakesThings, published on GitHub under the AGPL-3.0 license. It is a 6-layer board measuring 57.2 × 29.9 mm, with 74 components from 39 distinct parts.

Its main chip is the STM809TWX6F, from the STM32 family. Other key parts include the MCP1702T-3302E/CB, MPQ4242GVE-0001-AEC1-P, INA219BIDCNT, 24AA02E-OT and SN74LVC1G97QDCKRQ1. By type, the board carries 28 capacitors, 21 resistors, 6 ICs, 3 diodes, 2 connectors and 2 inductors.

It belongs with the power & battery designs in this gallery.

From the project

The PDNode-600 is a professional-grade, 600W USB Power Delivery Unit designed specifically for compact 10-inch rack systems, targeting embedded developers, homelab enthusiasts, test benches, and smart infrastructure. It delivers regulated, high-current power across 8x independent

The PDNode-600 is a professional-grade, 600W USB Power Delivery Unit designed specifically for compact 10-inch rack systems, targeting embedded developers, homelab enthusiasts, test benches, and smart infrastructure. It delivers regulated, high-current power across 8x independent USB-C PD outputs and 4x fixed 5V USB-A outputs.

At the core of the PDNode platform is a centralized industrial-grade 24V/25A power supply, distributing regulated DC to dedicated per-port buck or buck-boost converters. Each USB-C port is managed by an MPQ4242-AEC1 PD controller, enabling clean, autonomous negotiation…

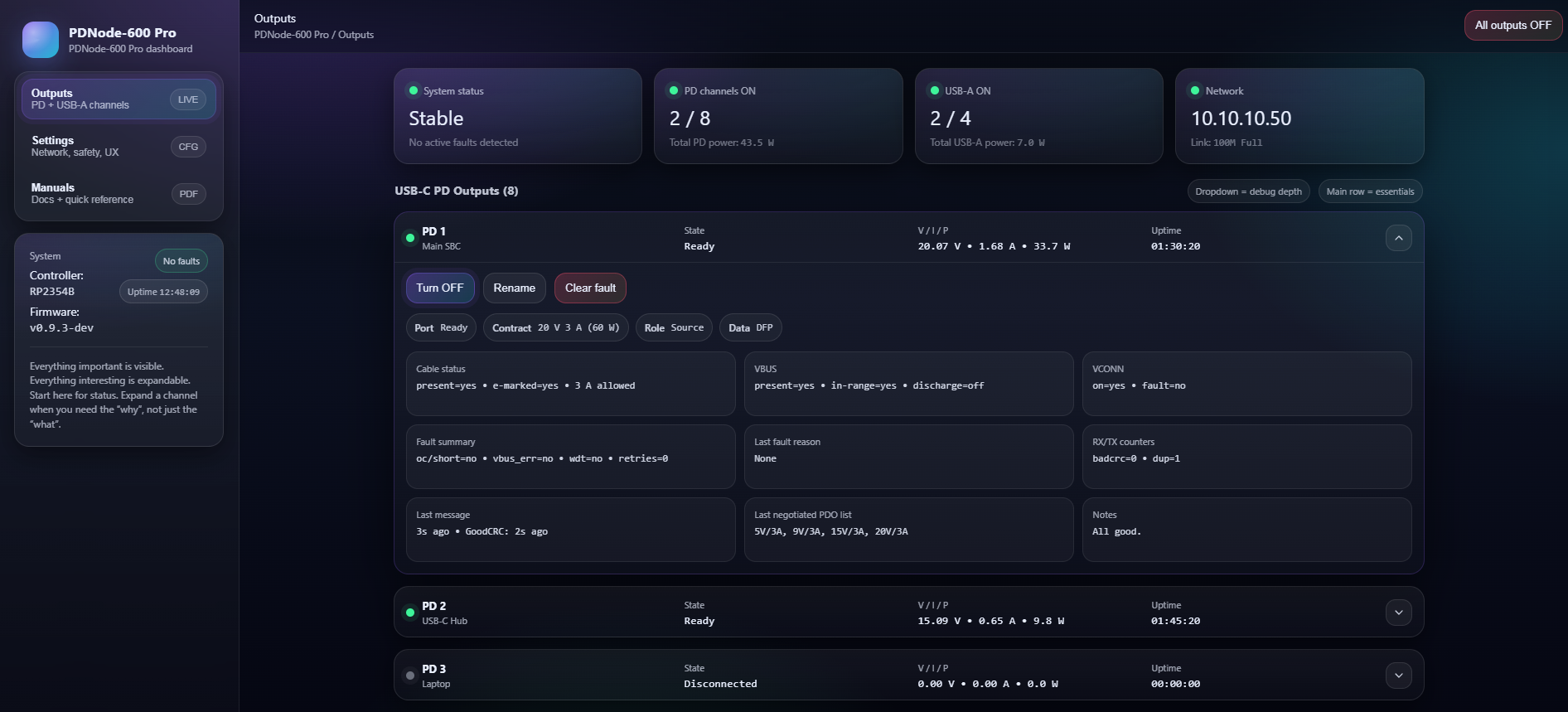

PDNode-PDCard-4242, from the project README
From the project README

Main components on the PDNode-PDCard-4242

MCP1702T-3302E/CBMPQ4242GVE-0001-AEC1-PINA219BIDCNT24AA02E-OTSN74LVC1G97QDCKRQ1STM809TWX6F

PDNode-PDCard-4242 bill of materials (BOM)

74 components, 39 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP1702T-3302E/CB
Microchip Technology
IC1
1
MPQ4242GVE-0001-AEC1-P
Monolithic Power Systems Inc.
IC2
1
INA219BIDCNT
Texas Instruments
IC3
1
24AA02E-OT
IC4
1
SN74LVC1G97QDCKRQ1
Texas Instruments
IC5
1
STM809TWX6F
STMicroelectronics
IC6
1
USB-TYPE-C-018
DEALON
J1
1
Conn_01x07_Pin
J3
8
~
CC1, CC2, PDA1, PDE1, PDO1, V24, VDRV1, VF24
2
7466313R
M3
Würth Elektronik
ST1, ST2
1
DMN4008LFG-7
Diodes Incorporated
T1
1
~
TP1
1
XL-1005UGC
Green
XINGLIGHT
D1
1
XL-1005UBC
Blue
XINGLIGHT
D2
1
TPD4EUSB30DQAR
Texas Instruments
D5
1
7443551470
4.7uH 13A
Würth Elektronik
L1
1
XAL5030-222MEC
2.2uH 9.7A
Coilcraft
L2
2
T55D107M025C0060
100uF 25V
Vishay
C1, C10
4
CL21A475KBQNNNE
4.7uF 50V
Samsung Electro-Mechanics
C2, C3, C5, C6
8
C307331
100nF 50V
C4, C11, C15, C18, C25, C31, C32, C41
Show 19 more
QtyPartRefs
1
C385032
2.2uF 25V
C7
2
C5159775
220nF 50V
C8, C9
1
CC0402KRX7R9BB471
470pF 50V
YAGEO
C14
1
C173242
1nF 2kV
Johanson Dielectrics
C23
2
C440198
10uF 50V
C24, C40
1
C1518208
1uF 50V
C26
1
CL31A106KBHNNNE
10uF 50V
Samsung Electro-Mechanics
C29
3
C14442
1nF 50V
C34, C35, C43
2
CGA0402C0G391J500GT
390pF 50V
HRE
C36, C37
5
RC0402FR-071RL
1R 1%
RALEC
R1, R3, R4, R28, R29
1
C127692
0.010R 1%
UNI-ROYAL
R2
4
C25744
10K 1%
ROHM
R5, R34, R35, R53
2
C17168
0R 1%
YAGEO
R8, R9
2
C2909330
2.2R 1%
UNI-ROYAL
R17, R18
2
C25741
100K 1%
FH
R20, R23
1
LR2512-22R005F4
0.005R 1% 2W
RALEC
R24
1
C17927
1M 1%
Uniohm
R26
2
C11702
1K 1%
FH
R41, R49
1
RC0402FR-0790K9L
90.9K 1%
YAGEO
R52

PDNode-PDCard-4242 design files

The KiCad project lives in the DvidMakesThings/HW_PDNode-600-Pro repository on GitHub; these links point at the commit this page was built from.

PDNode-PDCard-4242: common questions

What microcontroller does the PDNode-PDCard-4242 use?

The PDNode-PDCard-4242 is built around the STM809TWX6F, from the STM32 family.

How big is the PDNode-PDCard-4242 PCB?

The PDNode-PDCard-4242 measures 57.2 × 29.9 mm, has 6 copper layers and is 1.5784 mm thick.

How many components are on the PDNode-PDCard-4242?

74 components, from 39 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PDNode-PDCard-4242 design files?

From the DvidMakesThings/HW_PDNode-600-Pro repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PDNode-PDCard-4242 design in my own project?

Yes, under the terms of its AGPL-3.0 license, which DvidMakesThings chose for the repository.

Can I test firmware for the PDNode-PDCard-4242 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
