Torn Keyboard - Right

EanNewton·Awesome-Keebs·pcb files/torn-master/torn_right/torn_right.kicad_pcb

Torn Keyboard - Right PCB layout, top view — open source board by EanNewton
Simulate this board

About the Torn Keyboard - Right PCB

Torn Keyboard - Right is an open source PCB design by EanNewton, published on GitHub under the MIT license. It is a 2-layer board measuring 140.7 × 115.5 mm, with 56 components from 11 distinct parts.

Other key parts include the MCP23017_SP. By type, the board carries 22 switches, 22 diodes, 3 inductors, 3 resistors, 2 connectors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

A collection of keyboards & things.

The split keyboard kit made with through hole components. The design has been inspired by the Corne, Plaid and Discipline keyboards.

Torn uses an Atmega328P cpu, running QMK with VUSB: - QMK firmware. - Bootloader. - Compatible with VIA

Later this year you will be able to buy a Torn keyboard kit from splitkb.com. Alternatively you can also buy all the parts needed youself.

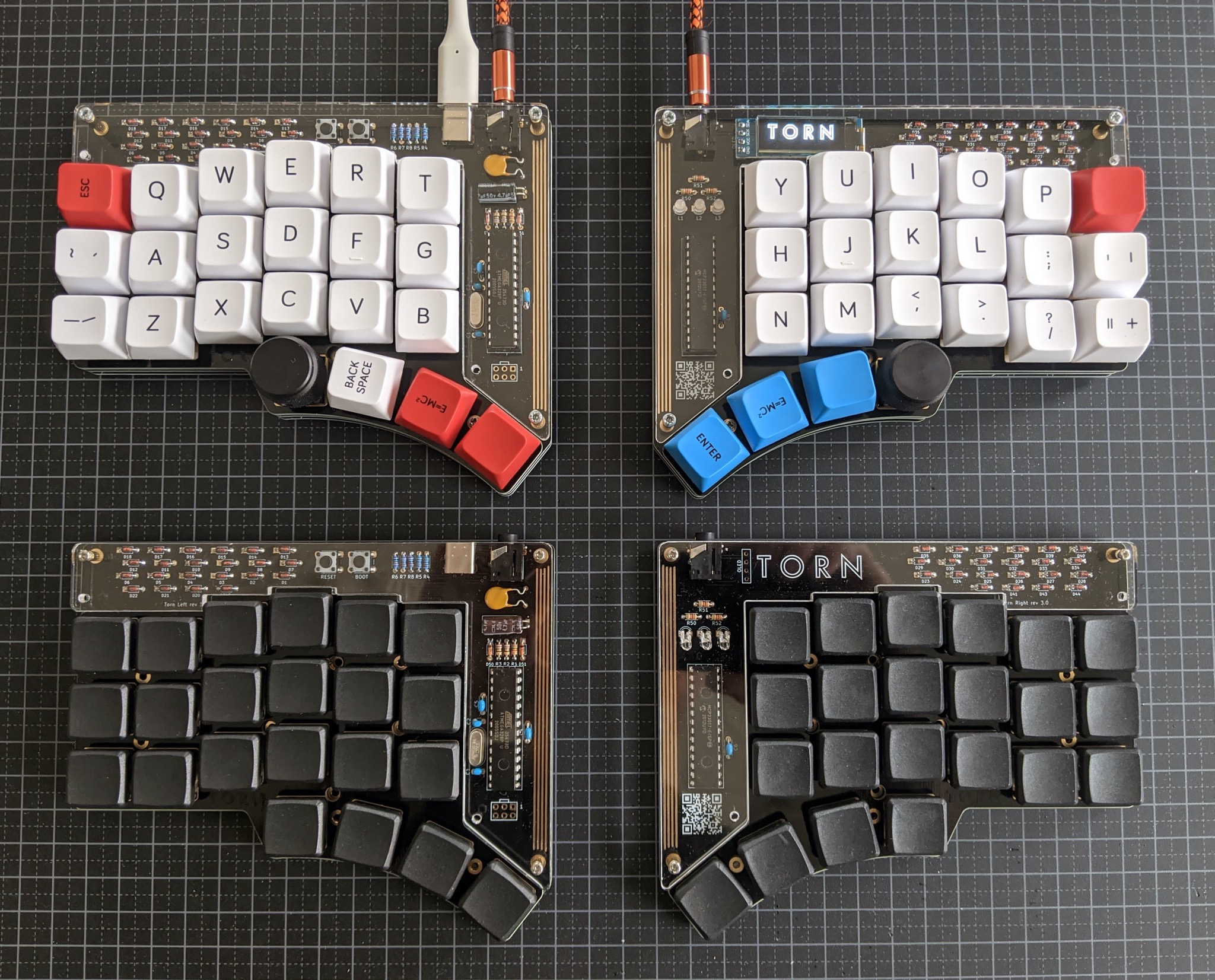

Torn Keyboard - Right, from the project README
From the project README

Main components on the Torn Keyboard - Right

MCP23017_SP

Torn Keyboard - Right bill of materials (BOM)

56 components, 11 distinct parts.

QtyPartRefs
1
MCP23017_SP
U2
1
SJ-43514
J2
1
Conn_01x04
J3
1
PUCK
PUCK1
1
SYM_Arrow45_Small
QR1
19
SW_Push
SW23, SW24, SW25, SW26, SW27, SW29, SW30, SW31 +11
3
Rotary_Encoder_Switch
SW28, SW41, SW44
22
1N4148
D23, D24, D25, D26, D27, D28, D29, D30 +14
3
LED
L1, L2, L3
1
100n
C6
3
5.1k
R50, R51, R52

Torn Keyboard - Right design files

The KiCad project lives in the EanNewton/Awesome-Keebs repository on GitHub; these links point at the commit this page was built from.

Torn Keyboard - Right: common questions

How big is the Torn Keyboard - Right PCB?

The Torn Keyboard - Right measures 140.7 × 115.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Torn Keyboard - Right?

56 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the Torn Keyboard - Right design files?

From the EanNewton/Awesome-Keebs repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Torn Keyboard - Right design in my own project?

Yes, under the terms of its MIT license, which EanNewton chose for the repository.
