About the Plate ble PCB
Plate ble is an open source PCB design by ebastler, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 272.4 × 111.9 mm, with 48 components from 1 distinct parts.
It belongs with the keyboards, iot & wireless and power & battery designs in this gallery.
From the project
ZMK-based replacement PCB for Cornelius keyboard

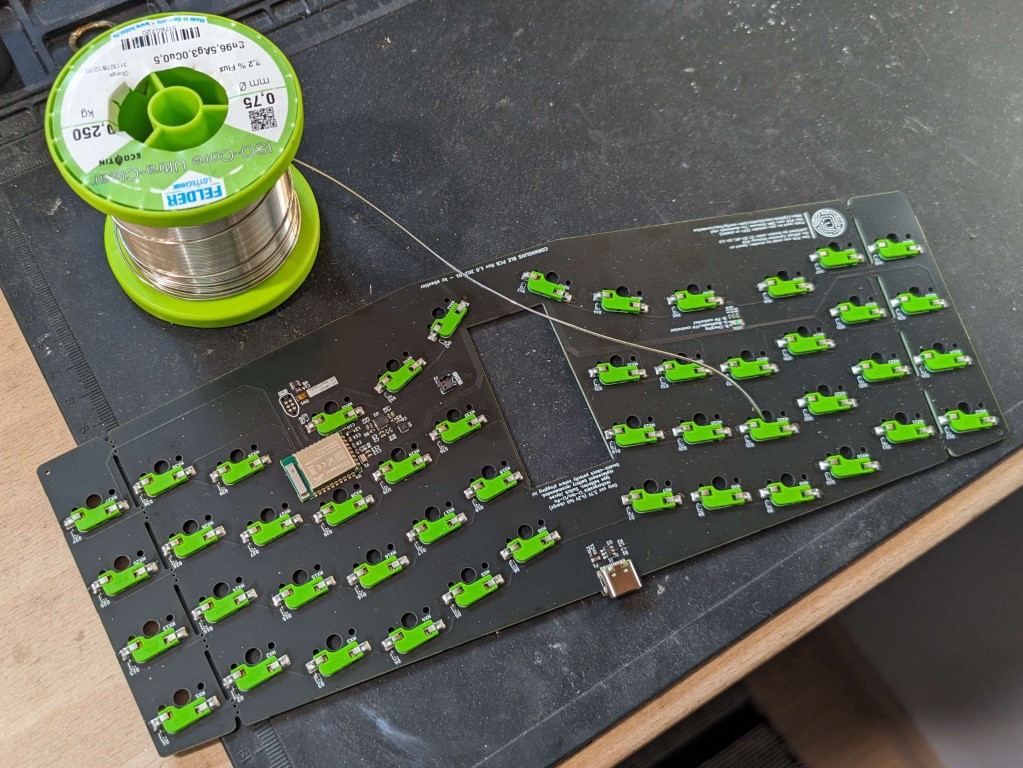

Cornholius is, first and foremost, a Bluetooth Low Energy capable replacement PCB for the Foostan Cornelius. Key and connector positions as well as PCB outline and plate were derived from the original Cornelius repository, but altered to fit the scope of this project - Thank you for open sourcing these files! In accordance with the license chosen by foostan, this project was published under the same license: CC BY-NC-SA 4.0.

Plate ble bill of materials (BOM)
48 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 48 | MX | Plate-M_MX_1u | H1, H2, H3, H4, H5, H6, H7, H8 +40 |
Plate ble design files
The KiCad project lives in the ebastler/cornholius repository on GitHub; these links point at the commit this page was built from.
Plate ble: common questions
How big is the Plate ble PCB?
The Plate ble measures 272.4 × 111.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Plate ble?
48 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Plate ble design files?
From the ebastler/cornholius repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Plate ble design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
