Add On Barrio del Hardware PCB layout, top view — open source board by ElectronicCats
Simulate this board

About the Add On Barrio del Hardware PCB

Add On Barrio del Hardware is an open source PCB design by ElectronicCats, published on GitHub. It is a 2-layer board measuring 34.2 × 54.9 mm, with 25 components from 13 distinct parts.

Other key parts include the PY32F002AA15M6TU. By type, the board carries 9 resistors, 7 diodes, 2 transistors, 2 switches, 2 capacitors and 1 IC.

It belongs with the wearables, usb & debug tools and displays & leds designs in this gallery.

From the project

BugCON Badge 2025

El Badge BugCon 2025 es un dispositivo de hardware abierto diseñado para la comunidad de hackers, desarrolladores y entusiastas de la tecnología. Cuenta con un potente procesador Linux capaz de ejecutar aplicaciones personalizadas, junto con una amplia variedad de interfaces para ampliar su funcionalidad.

El proyecto está dividido en dos directorios principales:

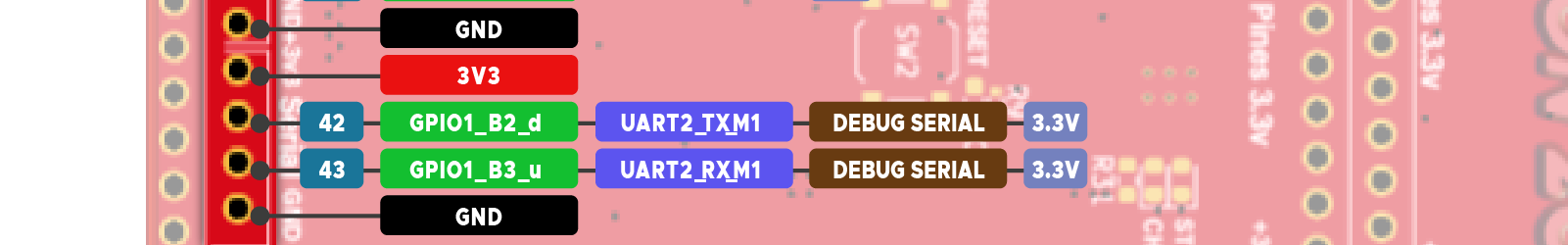

Add On Barrio del Hardware, from the project README
From the project README

Main components on the Add On Barrio del Hardware

PY32F002AA15M6TU

Add On Barrio del Hardware bill of materials (BOM)

25 components, 13 distinct parts.

QtyPartRefs
1
PY32F002AA15M6TU
U1
2
2N7002
Q1, Q2
1
Conn_02x03_Odd_Even
J2
1
Battery_Cell
BT1
1
SW_RST
SW1
1
On
SW2
1
White
D1
4
White
D2, D3, D4, D5
1
Red
D6
1
Green
D7
2
0.1uF
C1, C2
7
330R
R1, R2, R3, R4, R5, R8, R9
2
100K
R6, R7

Add On Barrio del Hardware design files

The KiCad project lives in the ElectronicCats/badge-bugcon-2025 repository on GitHub; these links point at the commit this page was built from.

Add On Barrio del Hardware: common questions

How big is the Add On Barrio del Hardware PCB?

The Add On Barrio del Hardware measures 34.2 × 54.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Add On Barrio del Hardware?

25 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Add On Barrio del Hardware design files?

From the ElectronicCats/badge-bugcon-2025 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Add On Barrio del Hardware design in my own project?

The repository has no license, so all rights stay with ElectronicCats. Use it as a reference, and ask the author before reusing the design.
