Berlin bahn

elektrojupp·berlin_bahn·hw/berlin_bahn.kicad_pcb

Berlin bahn PCB layout, top view — open source board by elektrojupp

About the Berlin bahn PCB

Berlin bahn is an open source PCB design by elektrojupp, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 153 × 107 mm, with 320 components from 1 distinct parts.

Other key parts include the XL-1010RGBC-WS2812B.

It belongs with the displays & leds designs in this gallery.

From the project

There are some commercial maps of similar design out there. They mostly use multiple LEDs per station and show less complexity by splitting services into separate maps.

There are some commercial maps of similar design out there. They mostly use multiple LEDs per station and show less complexity by splitting services into separate maps.

This project shows the complete maps for Berlin’s suburban rail and subway. It uses 312 NeoPixel-compatible RGB LEDs for 314 stations on a two-layer board. The firmware targets an ESP32-S3 DevKitC-1 N16R8 with 8 MB PSRAM.

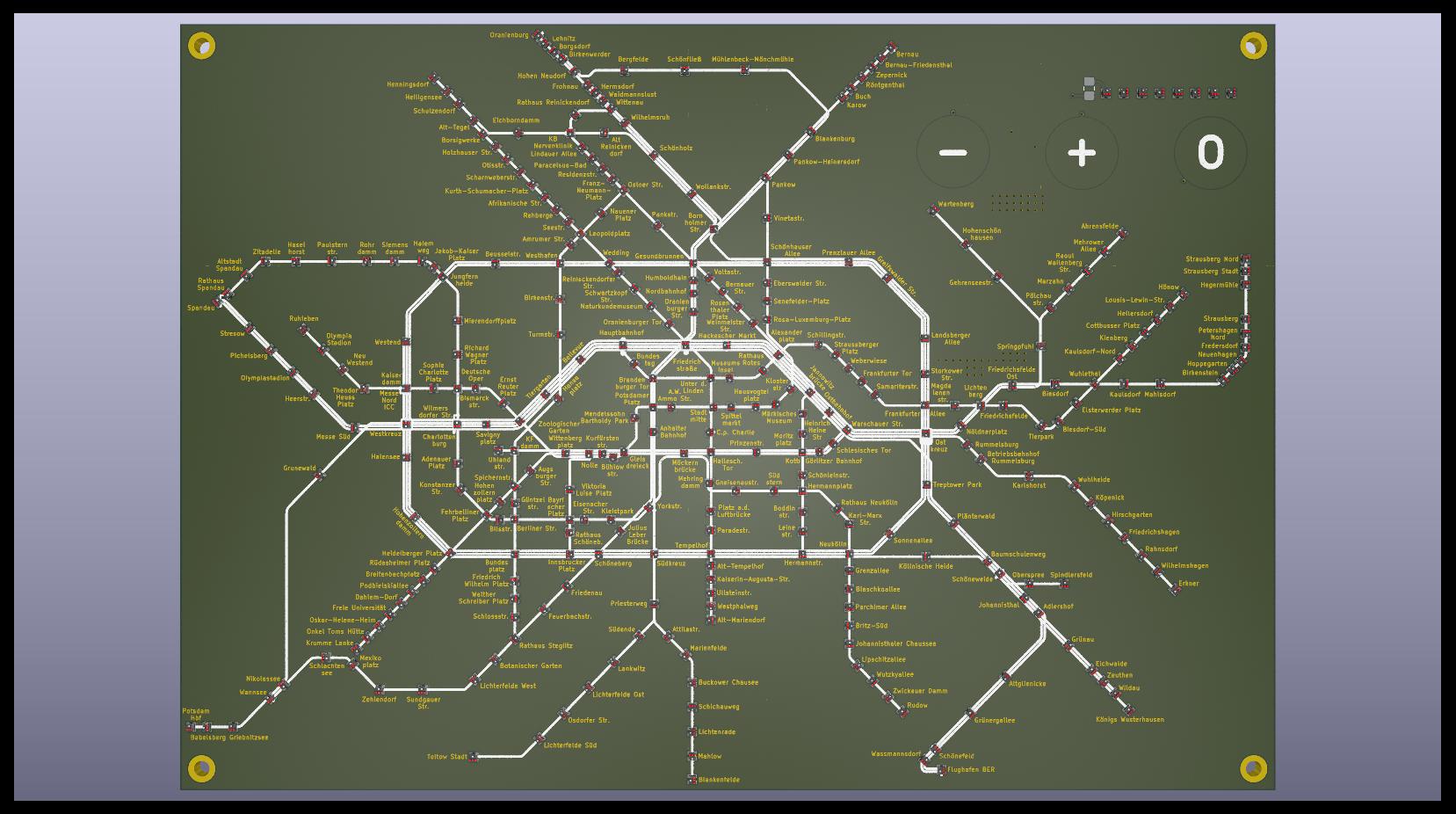

Berlin bahn, from the project README
From the project README

Main components on the Berlin bahn

XL-1010RGBC-WS2812B

Berlin bahn bill of materials (BOM)

320 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
320
XL-1010RGBC-WS2812B
U1, U2, U3, U4, U5, U6, U7, U8 +312

Berlin bahn design files

The KiCad project lives in the elektrojupp/berlin_bahn repository on GitHub; these links point at the commit this page was built from.

Berlin bahn: common questions

How big is the Berlin bahn PCB?

The Berlin bahn measures 153 × 107 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Berlin bahn?

320 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Berlin bahn design files?

From the elektrojupp/berlin_bahn repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Berlin bahn design in my own project?

Yes, under the terms of its Apache-2.0 license, which elektrojupp chose for the repository.
