About the Hackpad PCB

Hackpad is an open source PCB design by elia-pia, published on GitHub. It is a 2-layer board measuring 19 × 57 mm, with 4 components from 2 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 3 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

the hackpad i made for stardance

| | | | | | | | | || |/ |/ | |/ / ' \ / |/ | | | (| | (| <| |) | (| | (| | || ||\,|\||\\ ./ \,|\,| |_|

A 3-key macropad, built for Hack Club's Stardance Challenge.

- hackpad.kicadpro, hackpad.kicadsch, hackpad.kicadpcb — KiCad project, schematic, and PCB layout - enclosure.stl / caselid.stl — 3D-printable case files - hackpadcase.png` ## Building it

1. Open hackpad.kicadpro in KiCad to view or edit the schematic and PCB. 2. Order the PCB from JLCPCB of choice using the KiCad project files. 3. 3D print enclosure.stl and caselid.stl. 4. Assemble the PCB into the printed case

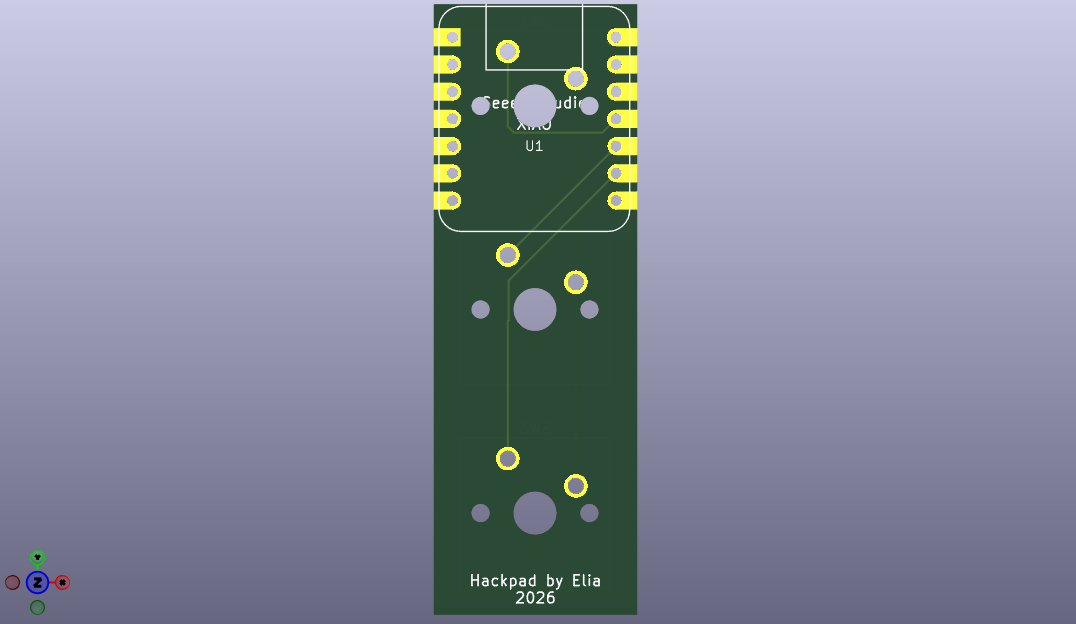

Hackpad, from the project README
From the project README

Main components on the Hackpad

MOUDLE-SEEEDUINO-XIAO

Hackpad bill of materials (BOM)

4 components, 2 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
3
SW_Push
SW1, SW2, SW3

Hackpad design files

The KiCad project lives in the elia-pia/Hackpad repository on GitHub; these links point at the commit this page was built from.

Hackpad: common questions

How big is the Hackpad PCB?

The Hackpad measures 19 × 57 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hackpad?

4 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hackpad design files?

From the elia-pia/Hackpad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hackpad design in my own project?

The repository has no license, so all rights stay with elia-pia. Use it as a reference, and ask the author before reusing the design.
