Analog

About the Analog PCB

Analog is an open source PCB design by elliotnash, published on GitHub. It is a 2-layer board, with 62 components from 18 distinct parts.

Other key parts include the TLP3441TP_F, ${SIM.PARAMS} and ADG621BRMZ. By type, the board carries 26 resistors, 12 capacitors, 10 ICs, 8 test points, 4 diodes and 2 connectors.

It belongs with the test & measurement designs in this gallery.

From the project

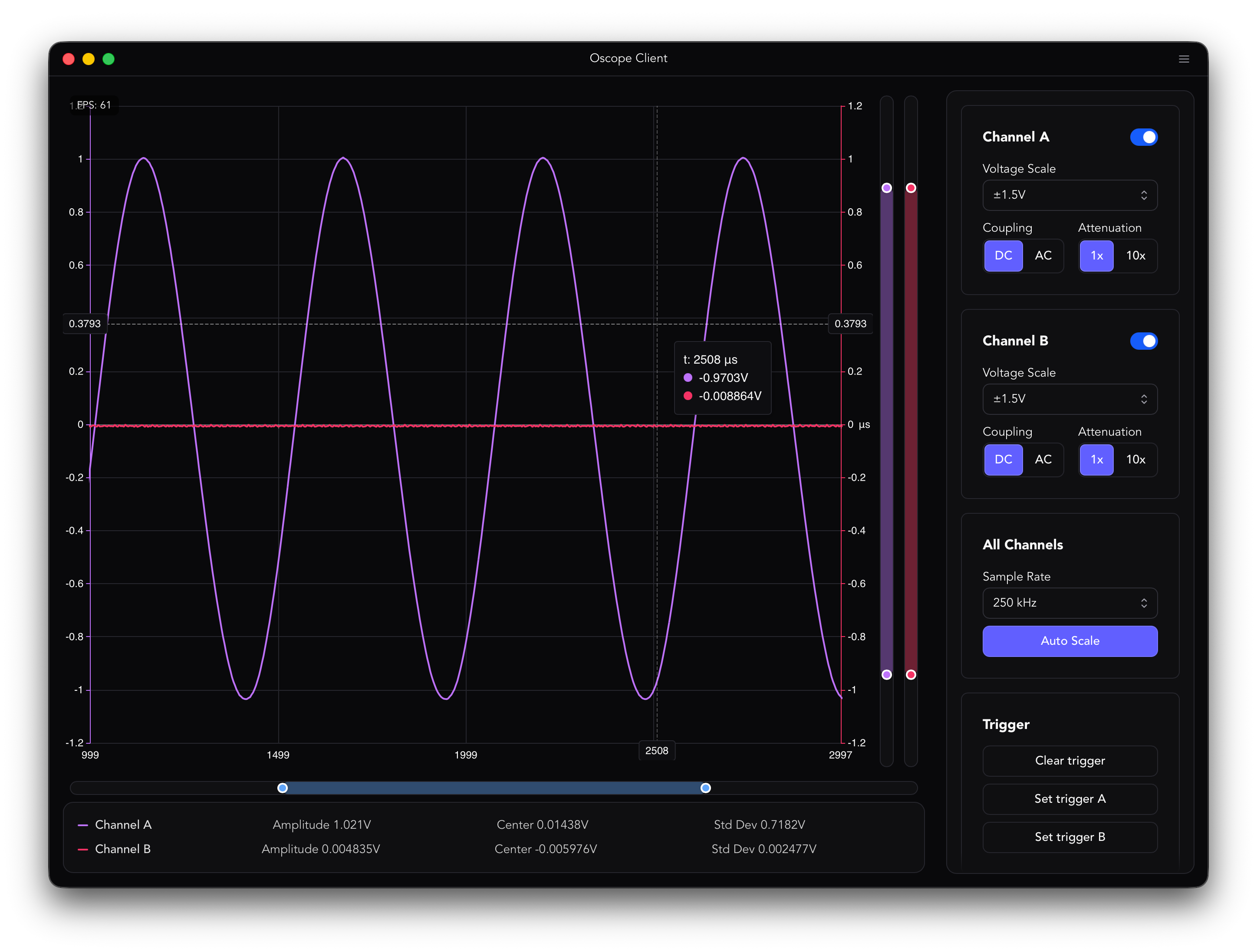

Fully Rust-based USB Oscilloscope

A Dual Channel USB Oscilloscope designed for OSU ECE342 Junior Design 2

- hardware/ - Contains KiCad schematic and PCB design files for a RP2350 based oscilloscope board.

- firmware/ - Rust firmware that runs on the oscilloscope board. Built using the Embassy async framework for embedded systems, targeting the RP2350 microcontroller. Handles ADC sampling / USB communication.

Main components on the Analog

TLP3441TP_F${SIM.PARAMS}ADG621BRMZ

Analog bill of materials (BOM)

62 components, 18 distinct parts.

QtyPartRefs
2
TLP3441TP_F
U8, U13
6
${SIM.PARAMS}
U9, U11, U12, U14, U16, U17
2
ADG621BRMZ
U10, U15
2
73101-0570
J2, J3
8
TestPoint
TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8
4
D
D1, D2, D3, D4
2
10n
C29, C38
8
100n
C31, C32, C33, C34, C39, C40, C41, C42
2
30p
C35, C43
2
200
R14, R23
2
1M
R15, R24
2
320
R16, R25
4
1k
R17, R22, R26, R31
2
0
R18, R20
2
51
R19, R28
2
470
R32, R33
6
100k
R34, R35, R40, R41, R42, R43
4
200k
R36, R37, R38, R39

Analog design files

The KiCad project lives in the elliotnash/OSU-ECE342-Oscilloscope repository on GitHub; these links point at the commit this page was built from.

Analog: common questions

How big is the Analog PCB?

The Analog has 2 copper layers and is 1.6 mm thick.

How many components are on the Analog?

62 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Analog design files?

From the elliotnash/OSU-ECE342-Oscilloscope repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Analog design in my own project?

The repository has no license, so all rights stay with elliotnash. Use it as a reference, and ask the author before reusing the design.
