Riscpc adapter

ep-infosec·50_google_myelin-acorn-electron-hardware·a3000_rom_emulator/riscpc_adapter_pcb/riscpc_adapter.kicad_pcb

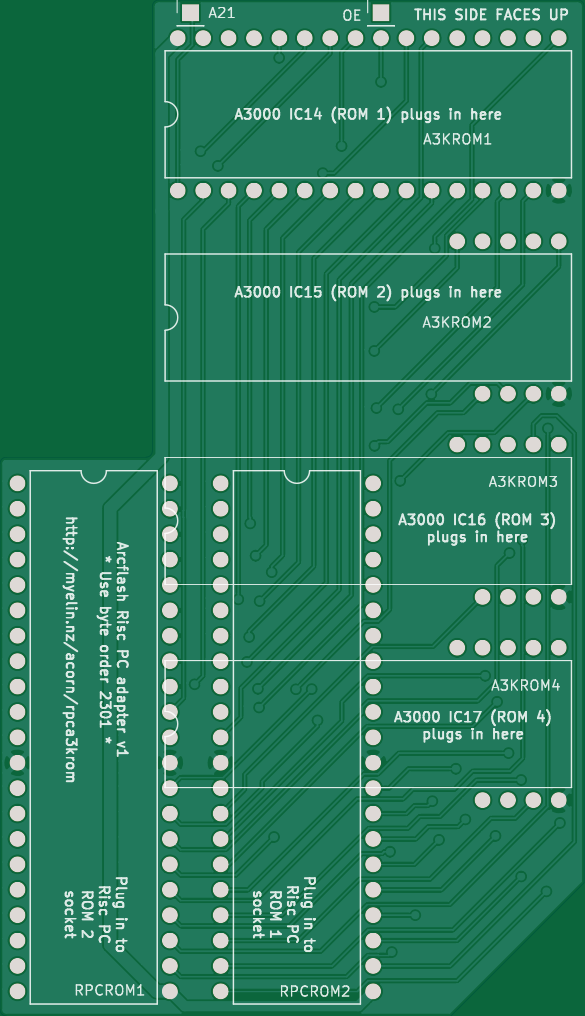

Riscpc adapter PCB layout, top view — open source board by ep-infosec

About the Riscpc adapter PCB

Riscpc adapter is an open source PCB design by ep-infosec, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 58.4 × 101.6 mm, with 107 components from 5 distinct parts.

Other key parts include the ROM header.

From the project

Adapter board to allow an "arcflash" A3000 ROM emulator to work on a Risc PC.

Riscpc adapter, from the project README
From the project README

Main components on the Riscpc adapter

ROM header

Riscpc adapter bill of materials (BOM)

107 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ROM header
A3KROM1
3
ROM header
A3KROM2, A3KROM3, A3KROM4
1
—
A21
2
ROM header
RPCROM1, RPCROM2
100
—
staple_single1, staple_single2, staple_single3, staple_single4, staple_single5, staple_single6, staple_single7, staple_single8 +92

Riscpc adapter design files

The KiCad project lives in the ep-infosec/50_google_myelin-acorn-electron-hardware repository on GitHub; these links point at the commit this page was built from.

Riscpc adapter: common questions

How big is the Riscpc adapter PCB?

The Riscpc adapter measures 58.4 × 101.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Riscpc adapter?

107 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Riscpc adapter design files?

From the ep-infosec/50_google_myelin-acorn-electron-hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Riscpc adapter design in my own project?

Yes, under the terms of its Apache-2.0 license, which ep-infosec chose for the repository.
