Ss relay

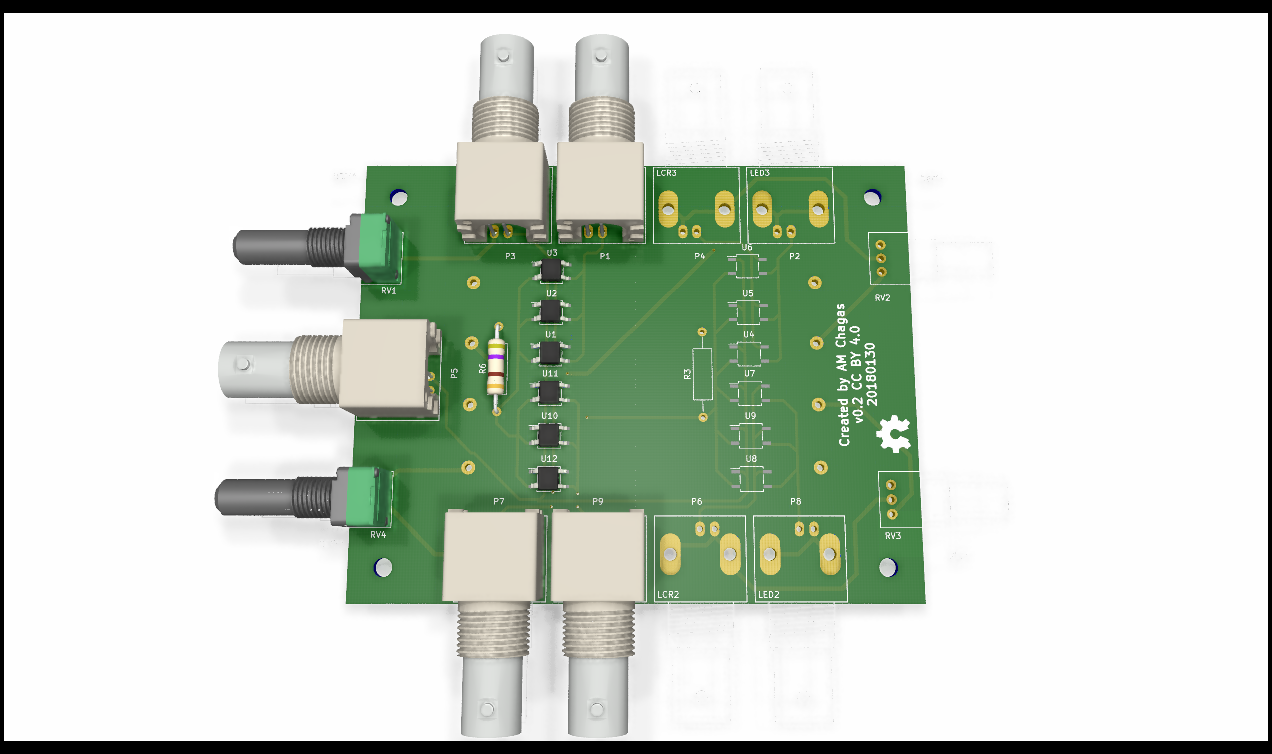

About the Ss relay PCB
Ss relay is an open source PCB design by eulerlab, published on GitHub under the MIT license. It is a 2-layer board measuring 98 × 78 mm, with 31 components from 13 distinct parts.
Other key parts include the AQY221R2S. By type, the board carries 12 ICs, 9 connectors and 2 resistors.
It belongs with the test & measurement designs in this gallery.
From the project
An arbitrary-spectrum spatial visual stimulator for vision research
This board controls the LED power lines from the Lightcrafter by opening and closing them using solid state relays. The relays are controlled by a 5V signal (in this case the inverted blanking signal).
Main components on the Ss relay
Ss relay bill of materials (BOM)
31 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 12 | AQY221R2S TLP291 Panasonic | SOP-4_3.8x4.1mm_Pitch2.54mm | U1, U2, U3, U4, U5, U6, U7, U8 +4 |
| 1 | 1-1337542-0 LED4 TE | BNC_Socket_TYCO-AMP_LargePads | P1 |
| 1 | 1-1337542-0 LED3 TE | BNC_Socket_TYCO-AMP_LargePads | P2 |
| 1 | 1-1337542-0 LCR4 TE | BNC_Socket_TYCO-AMP_LargePads | P3 |
| 1 | 1-1337542-0 LCR3 TE | BNC_Socket_TYCO-AMP_LargePads | P4 |
| 1 | 1-1337542-0 blanking TE | BNC_Socket_TYCO-AMP_LargePads | P5 |
| 1 | 1-1337542-0 LCR2 TE | BNC_Socket_TYCO-AMP_LargePads | P6 |
| 1 | 1-1337542-0 LCR1 TE | BNC_Socket_TYCO-AMP_LargePads | P7 |
| 1 | 1-1337542-0 LED2 TE | BNC_Socket_TYCO-AMP_LargePads | P8 |
| 1 | 1-1337542-0 LED1 TE | BNC_Socket_TYCO-AMP_LargePads | P9 |
| 4 | 026TB32R250B1A1 500 CTS | Potentiometer_Alps_RK097_Single_Vertical | RV1, RV2, RV3, RV4 |
| 4 | 10 | R_Axial_Power_L50.0mm_W9.0mm_P60.96mm | group 1, group 2, group 3, group 4 |
| 2 | 1.00KXBK 270 Multicomp | R_Axial_DIN0309_L9.0mm_D3.2mm_P15.24mm_Horizontal | R3, R6 |
Ss relay design files
The KiCad project lives in the eulerlab/open-visual-stimulator repository on GitHub; these links point at the commit this page was built from.
Ss relay: common questions
How big is the Ss relay PCB?
The Ss relay measures 98 × 78 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ss relay?
31 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ss relay design files?
From the eulerlab/open-visual-stimulator repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Ss relay design in my own project?
Yes, under the terms of its MIT license, which eulerlab chose for the repository.
