Rpi pico button shield
About the Rpi pico button shield
Rpi pico button shield is an open source PCB design by evdlabs, published on GitHub under the MIT license. It is a 2-layer board measuring 47.2 × 68.1 mm, with 10 components from 4 distinct parts.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

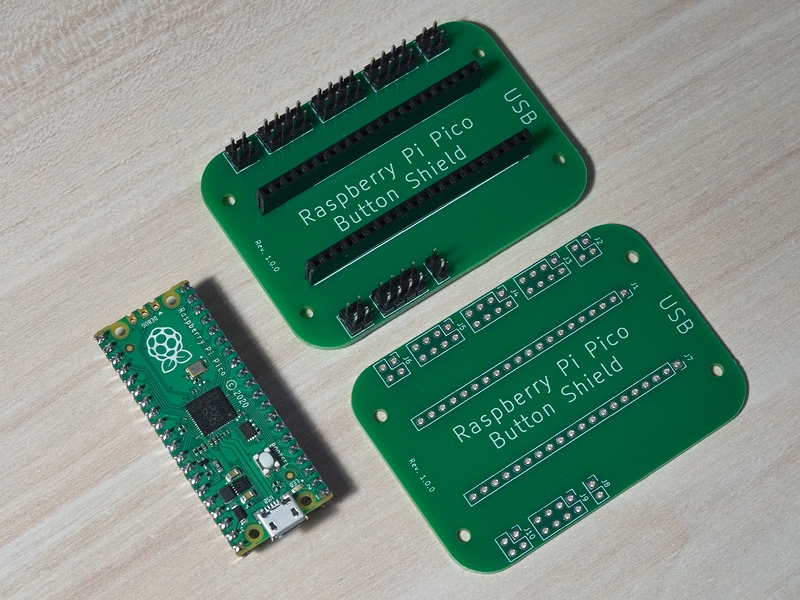

KiCad design files for a simple shield for the Raspberry Pi Pico
KiCad design files for a simple shield for the Raspberry Pi Pico. The shield is designed to easily break out most of the Pico's GPIO pins to multiple 2-pin 2.54mm pitch male headers. This makes it convenient for connecting external components like buttons, switches, LEDs, or sensors using standard Dupont wires. Ideal for prototyping or creating simple custom interfaces.
Rpi pico button shield bill of materials (BOM)
10 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x20_Socket | PinSocket_1x20_P2.54mm_Vertical | J1, J7 |
| 3 | Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical | J2, J6, J10 |
| 4 | Conn_02x04_Odd_Even | PinHeader_2x04_P2.54mm_Vertical | J3, J4, J5, J9 |
| 1 | Conn_02x01 | PinHeader_2x01_P2.54mm_Vertical | J8 |
Rpi pico button shield design files
The KiCad project lives in the evdlabs/rpi-pico-button-shield repository on GitHub; these links point at the commit this page was built from.
Rpi pico button shield: common questions
How big is the Rpi pico button shield?
The Rpi pico button shield measures 47.2 × 68.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rpi pico button shield?
10 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rpi pico button shield design files?
From the evdlabs/rpi-pico-button-shield repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rpi pico button shield design in my own project?
Yes, under the terms of its MIT license, which evdlabs chose for the repository.
