Evtivity ev tester

EVtivity·evtivity-ev-tester·jlcpcb/ac-tester-production.kicad_pcb

Evtivity ev tester PCB layout, top view — open source board by EVtivity

Simulate this board

About the Evtivity ev tester PCB

Evtivity ev tester is an open source PCB design by EVtivity, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 100 × 64 mm, with 51 components from 33 distinct parts.

Other key parts include the C51118 and C1848341. By type, the board carries 19 resistors, 8 capacitors, 6 diodes, 5 transistors, 5 connectors and 2 ICs.

It belongs with the iot & wireless designs in this gallery.

From the project

An open-source, EV-side charging simulator. It emulates an electric vehicle so you can test AC charging stations (EVSE) and CSMS backends on the bench, without a real car.

An open-source, EV-side charging simulator. It emulates an electric vehicle so you can test AC charging stations (EVSE) and CSMS backends on the bench, without a real car.

Built around a Seeed XIAO ESP32-S3 on a small carrier PCB, it drives the SAE J1772 / IEC 61851-1 Control Pilot line through states A, B, and C, reads the charger's offered current from the CP PWM, and reports proximity. A charger sees a full session lifecycle: vehicle detect, transaction start, Charging status, offered current, transaction stop.

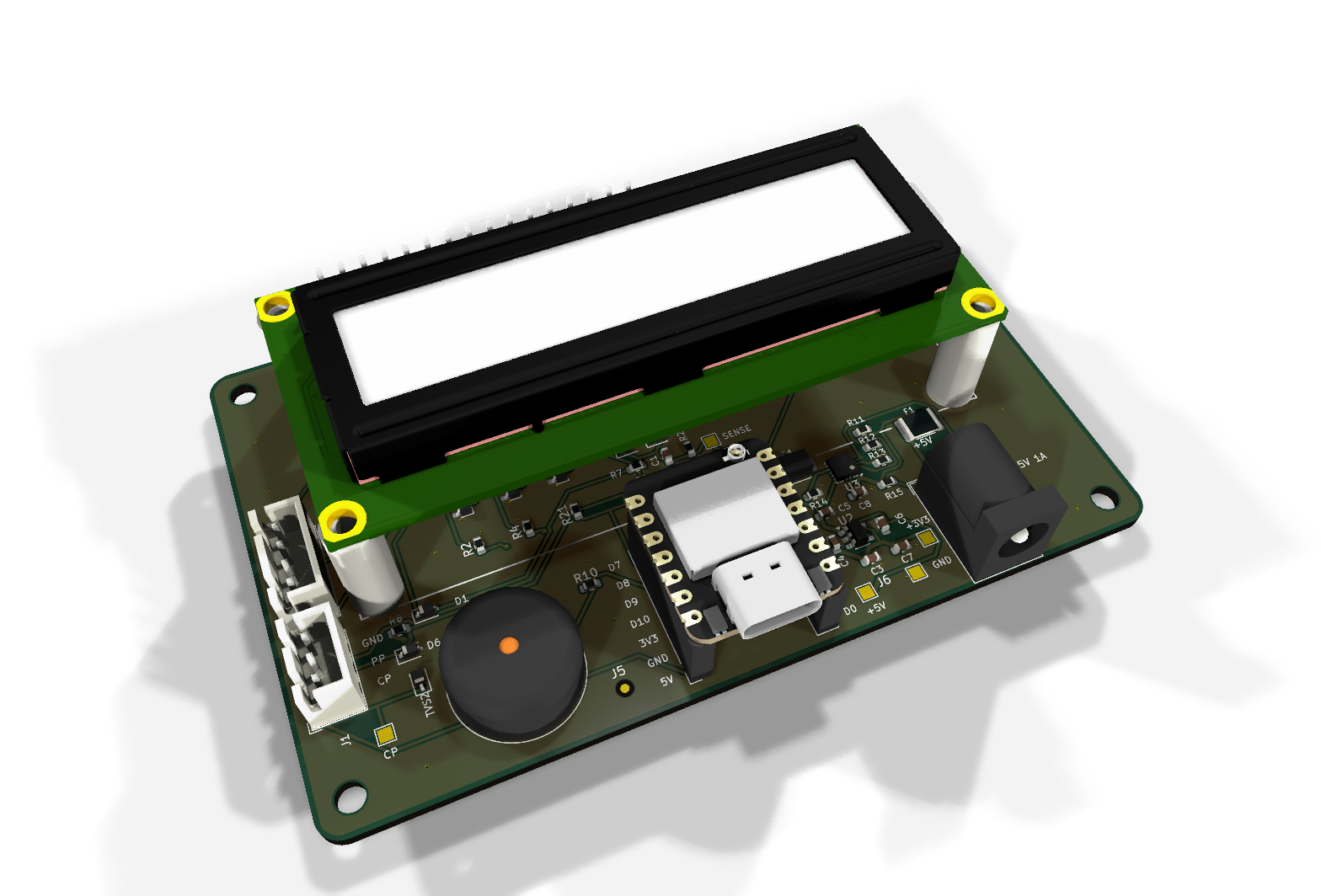

Evtivity ev tester, from the project README — From the project README

Main components on the Evtivity ev tester

C51118 C1848341

Evtivity ev tester bill of materials (BOM)

51 components, 33 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	C51118 AP2112K-3.3	SOT-23-5	U2
1	C1848341 TPS26621	Texas_DRC0010J	U3
5	2N7002	SOT-23	Q1, Q2, Q5, Q6, Q7
1	J1772 CP/PP/GND	JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical	J1
1	DC 5V	BarrelJack_CUI_PJ-102AH_Horizontal	J2
1	I2C LCD 5V	JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical	J3
1	XIAO PWR	PinSocket_1x07_P2.54mm_Vertical	J5
1	XIAO IO	PinSocket_1x07_P2.54mm_Vertical	J6
1	C142747 PTC 1A	Fuse_1812_4532Metric	F1
1	piezo	Buzzer_15x7.5RM7.6	LS1
1	MODE	JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical	SW1
1	SELECT	JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical	SW2
1	C10683 SMAJ6.0A	D_SMA	TVS1
1	C720654 CDSOD323-T15C	D_SOD-323	TVS2
1	C2128 1N4148WS	D_SOD-323	D1
2	BAT54WS	D_SOD-323	D2, D3
1	C2687129 PESD3V3	D_SOD-323	D6
2	C179428 PMEG2005AEA	D_SOD-323	D7, D8
2	C163508 1nF	C_0603_1608Metric	C1, C2
2	C96446 10uF	C_0603_1608Metric	C3, C5

Show 13 more

Qty	Part	Footprint	Refs
3	C14663 100nF	C_0603_1608Metric	C4, C6, C7
1	C559769 1uF	C_0603_1608Metric	C8
1	C22944 2.74k	R_0603_1608Metric	R1
5	C25803 100k	R_0603_1608Metric	R2, R4, R15, R20, R21
1	C22767 1.3k	R_0603_1608Metric	R3
1	C4216 33k	R_0603_1608Metric	R7
1	C23138 330	R_0603_1608Metric	R8
1	C21190 1k	R_0603_1608Metric	R9
1	C22962 220	R_0603_1608Metric	R10
1	C137735 390k	R_0603_1608Metric	R11
1	C23196 51k	R_0603_1608Metric	R12
1	C25805 110k	R_0603_1608Metric	R13
5	C98220 10k	R_0603_1608Metric	R14, R16, R17, R18, R19

Evtivity ev tester design files

The KiCad project lives in the EVtivity/evtivity-ev-tester repository on GitHub; these links point at the commit this page was built from.

Layoutjlcpcb/ac-tester-production.kicad_pcb
Schematicjlcpcb/ac-tester-production.kicad_sch
BOMjlcpcb/ac-tester-bom.csv

Evtivity ev tester: common questions

How big is the Evtivity ev tester PCB?

The Evtivity ev tester measures 100 × 64 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Evtivity ev tester?

51 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Evtivity ev tester design files?

From the EVtivity/evtivity-ev-tester repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Evtivity ev tester design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which EVtivity chose for the repository.
