Nano488
About the Nano488 PCB
Nano488 is an open source PCB design by fachat, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 106.8 × 75.9 mm, with 23 components from 17 distinct parts.
Other key parts include the 75160, 75161P, 74LS86N, 74LS06N and PORT_IEEE_CONN. By type, the board carries 9 ICs, 5 capacitors, 4 connectors, 2 jumpers, 1 LED and 1 resistor.
From the project

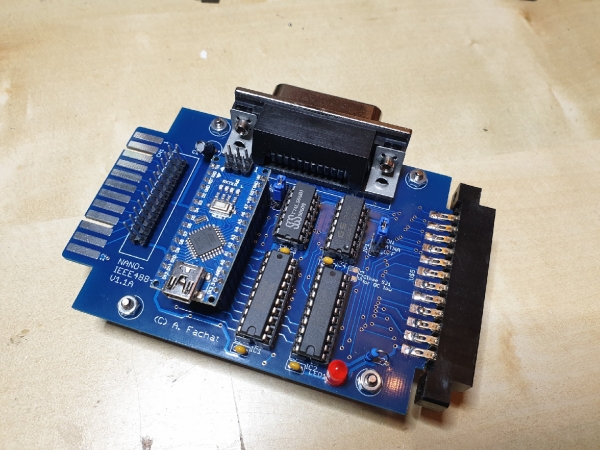

An IEEE488 interface for the PC using USB and an Arduino Nano (tm)
An IEEE488 interface for the PC using USB and an Arduino Nano (tm)
This IEEE488 interfaces uses an Arduino Nano (tm) and its serial-over-USB interface to have a PC control the IEEE488 interface.
The design is made to be able to work as both, a controller or a device, but the main purpose is to work as a disk drive for the Commodore PET computers.
The design is inspired by https://github.com/Twilight-Logic/AR488 but I had to rearrange some lines to add the Commodore disk drive's ATNA response circuit.
Main components on the Nano488
Nano488 bill of materials (BOM)
23 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 75160 | DIL20 | IC1 |
| 1 | 75161P | DIL20 | IC2 |
| 1 | 74LS86N | DIL14 | IC3 |
| 1 | 74LS06N | DIL14 | IC4 |
| 4 | — | 3,2 | U$1, U$2, U$3, U$4 |
| 1 | PORT_IEEE_CONN | MA156_12-2_SHORT | U$5 |
| 1 | PORT_IEEE_EDGE | MA156_12-2_IEEE | CN1 |
| 1 | NANO_FOOTPRINT | NANO | J1 |
| 1 | IEEE488BOX | FLAT24BOX | P1 |
| 1 | IEEE488 | 24HP | P2 |
| 1 | ATNA | JP2 | JP1 |
| 1 | LED/REN | JP2 | JP2 |
| 1 | DC | SJW | SJ1 |
| 1 | — | LED3MM | LED1 |
| 1 | 33u | E2,5-7 | C1 |
| 4 | 100n | C025-025X050 | C2, C3, C4, C5 |
| 1 | 1k | 0204_5 | R1 |
Nano488 design files
The KiCad project lives in the fachat/nano488 repository on GitHub; these links point at the commit this page was built from.
Nano488: common questions
How big is the Nano488 PCB?
The Nano488 measures 106.8 × 75.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Nano488?
23 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the Nano488 design files?
From the fachat/nano488 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Nano488 design in my own project?
Yes, under the terms of its GPL-3.0 license, which fachat chose for the repository.
