Adafruit Ultimate Macropad - Baseboard

Fescron·Ultimate_Adafruit_MacroPad·pcb/ultimate-adafruit-macropad-baseboard/ultimate-adafruit-macropad-baseboard.kicad_pcb

Adafruit Ultimate Macropad - Baseboard PCB layout, top view — open source board by Fescron

About the Adafruit Ultimate Macropad - Baseboard PCB

Adafruit Ultimate Macropad - Baseboard is an open source PCB design by Fescron, published on GitHub under the MIT license. It is a 2-layer board measuring 105.4 × 108 mm, with 3 components from 2 distinct parts.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

An upgraded Adafruit Macropad with easier macro-layer-switching using additional NeoKey buttons (and OLED display). Also includes keyboard-layout switching and dimming as well as a lot of macro-definitions.

This repository contains necessary components and fabrication instructions for my Ultimate Adafruit Macropad, as well as the code and macro-definitions I run on it. Configuration and usage instructions are also listed here.

I've basically added two NeoKey 1x4 boards next to the Adafruit Macropad to simplify macro-layer-switching. I've found that pressing a button to change a macro-layer on the Macropad is much faster than rotating the encoder, certainly if there are (currently) more than 25 layers defined. The encoder is repurposed to change macro-selection-layers on the NeoKey buttons. To…

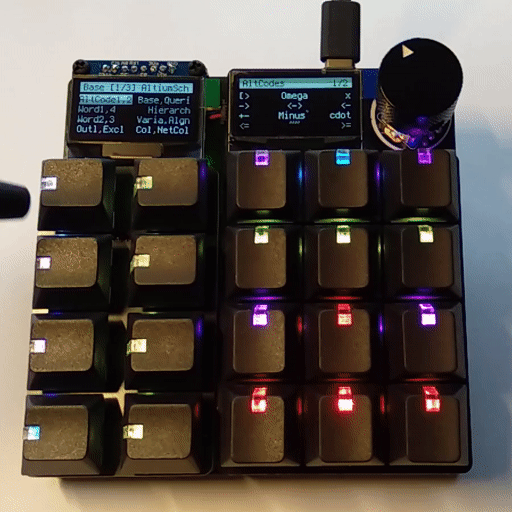

Adafruit Ultimate Macropad - Baseboard, from the project README
From the project README

Adafruit Ultimate Macropad - Baseboard bill of materials (BOM)

3 components, 2 distinct parts.

QtyPartRefs
2
Conn_01x06
J1, J2
1
Conn_01x08
J3

Adafruit Ultimate Macropad - Baseboard design files

The KiCad project lives in the Fescron/Ultimate_Adafruit_MacroPad repository on GitHub; these links point at the commit this page was built from.

Adafruit Ultimate Macropad - Baseboard: common questions

How big is the Adafruit Ultimate Macropad - Baseboard PCB?

The Adafruit Ultimate Macropad - Baseboard measures 105.4 × 108 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Adafruit Ultimate Macropad - Baseboard?

3 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Adafruit Ultimate Macropad - Baseboard design files?

From the Fescron/Ultimate_Adafruit_MacroPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Adafruit Ultimate Macropad - Baseboard design in my own project?

Yes, under the terms of its MIT license, which Fescron chose for the repository.
