About the ErgoTravelXT PCB

ErgoTravelXT is an open source PCB design by FIXMBR, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 157 × 90 mm, with 70 components from 8 distinct parts.

Other key parts include the ProMicro. By type, the board carries 29 relays, 28 diodes, 5 connectors, 2 resistors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

Portable, low profile keyboard with extra XT60s.

Portable, low profile keyboard with extra XT60s.

Based on original ErgoTravel by jpconstantineau here

- Kalih Choc switches only (no MX switches) - Tighter key grid (only 17.5x16.5mm Kalih keycaps supported) - Removed LEDs because I was lazy - One extra key - 10 XT60 connectors - Foldable - Connectable (if you connect the two halves you don't need TRRS cable)

Build process is pretty similiar to original ErgoTravel.

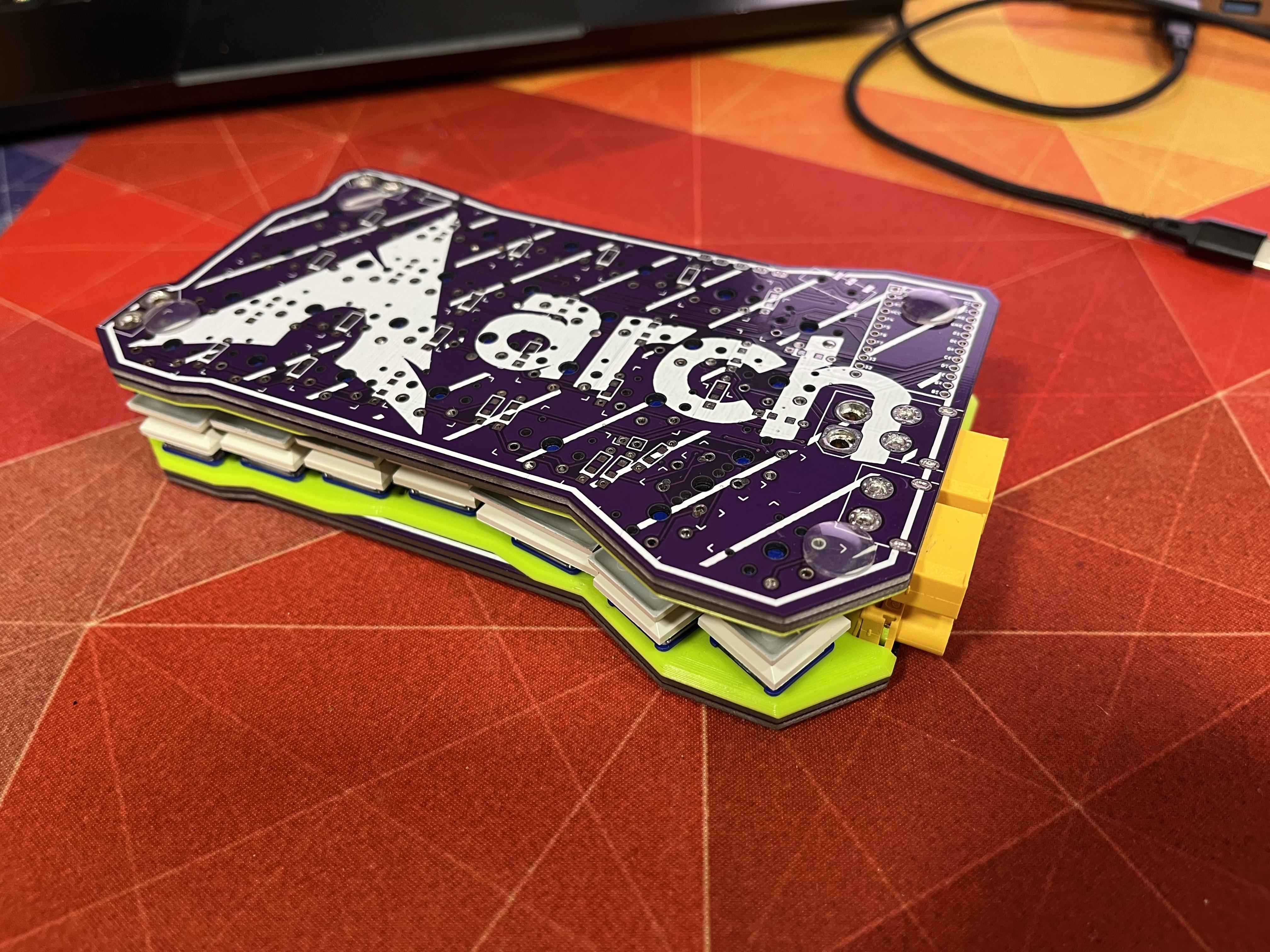

ErgoTravelXT, from the project README
From the project README

Main components on the ErgoTravelXT

ProMicro

ErgoTravelXT bill of materials (BOM)

70 components, 8 distinct parts.

QtyPartRefs
1
ProMicro
U1
2
Conn_01x02
J1, J4
2
Audio-Jack-4
J2, J3
1
Conn_01x02
J13
29
KEYSW
K1, K2, K3, K4, K5, K6, K7, K8 +21
5
SOLDER_JUMPER
SJ1, SJ2, SJ3, SJ4, SJ5
28
D
D1, D2, D3, D4, D5, D6, D7, D8 +20
2
4.7k
R1, R2

ErgoTravelXT design files

The KiCad project lives in the FIXMBR/ErgoTravelXT repository on GitHub; these links point at the commit this page was built from.

ErgoTravelXT: common questions

How big is the ErgoTravelXT PCB?

The ErgoTravelXT measures 157 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ErgoTravelXT?

70 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the ErgoTravelXT design files?

From the FIXMBR/ErgoTravelXT repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ErgoTravelXT design in my own project?

Yes, under the terms of its GPL-3.0 license, which FIXMBR chose for the repository.
