Basic STM32 Bluepill

flamerten·Basic_STM32_Bluepill·project/Basic_STM32_Bluepill.kicad_pcb

Basic STM32 Bluepill PCB layout, top view — open source STM32 board by flamerten
Simulate this board

About the Basic STM32 Bluepill PCB

Basic STM32 Bluepill is an open source STM32 PCB design by flamerten, published on GitHub. It is a 2-layer board measuring 43 × 34 mm, with 28 components from 16 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 13 capacitors, 5 resistors, 4 connectors, 2 ICs, 1 crystal and 1 switch.

From the project

KiCAD design of STM32 board based on the Bluepill MCU

KiCAD PCB Design based on the STM32 Bluepill. Done with guidance from Phil's Lab STM32 PCB Design Tutorial from Youtube.

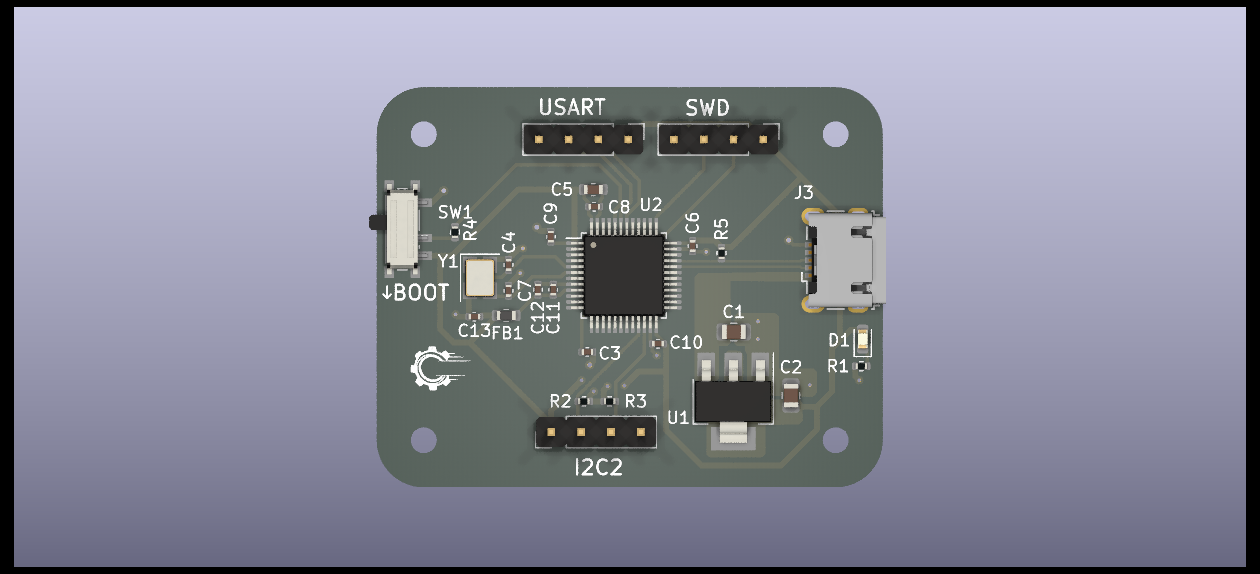

Basic STM32 Bluepill, from the project README
From the project README

Main components on the Basic STM32 Bluepill

AMS1117-3.3STM32F103C8T6

Basic STM32 Bluepill bill of materials (BOM)

28 components, 16 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
STM32F103C8T6
U2
1
16 MHz
Y1
3
Conn_01x04_Pin
J1, J2, J4
1
USB_B_Micro
J3
1
SW_SPDT
SW1
1
RED
D1
1
120R
FB1
2
22u
C1, C2
5
100n
C3, C6, C8, C9, C10
2
10p
C4, C7
1
10u
C5
1
10n
C11
2
1u
C12, C13
4
1k5
R1, R2, R3, R5
1
10k
R4

Basic STM32 Bluepill design files

The KiCad project lives in the flamerten/Basic_STM32_Bluepill repository on GitHub; these links point at the commit this page was built from.

Basic STM32 Bluepill: common questions

What microcontroller does the Basic STM32 Bluepill use?

The Basic STM32 Bluepill is built around the STM32F103C8T6, from the STM32 family.

How big is the Basic STM32 Bluepill PCB?

The Basic STM32 Bluepill measures 43 × 34 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Basic STM32 Bluepill?

28 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the Basic STM32 Bluepill design files?

From the flamerten/Basic_STM32_Bluepill repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Basic STM32 Bluepill design in my own project?

The repository has no license, so all rights stay with flamerten. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Basic STM32 Bluepill without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
