Hdmi breakout
About the Hdmi breakout
Hdmi breakout is an open source PCB design by flaviut, published on GitHub. It is a 4-layer board measuring 35 × 29 mm, with 6 components from 3 distinct parts.
By type, the board carries 4 connectors and 2 resistors.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

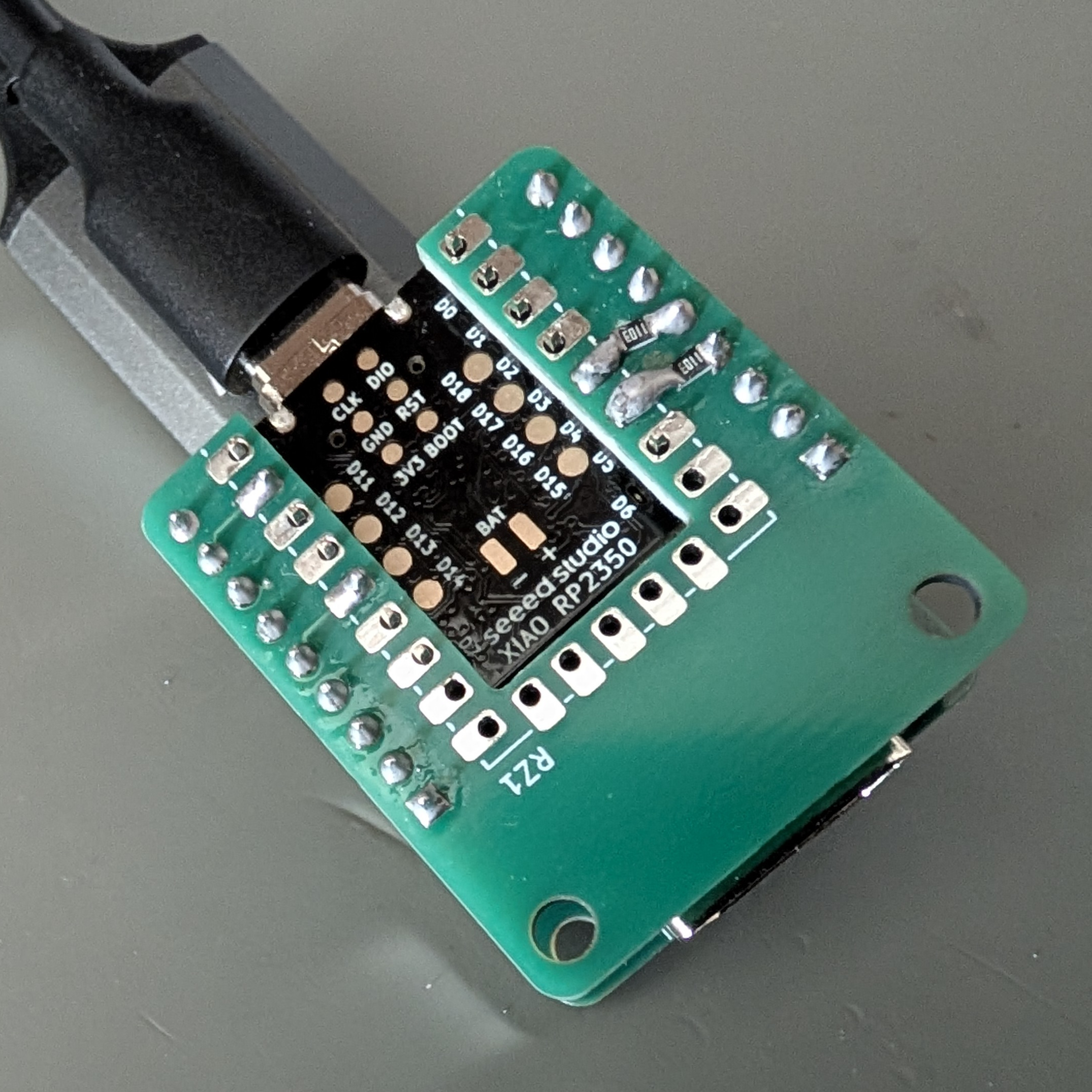

The CECLink is a small device that can be used to allow a Linux computer to control a TV using the CEC protocol over HDMI. This is particularly helpful for HTPCs, which often do not have the required hardware to do so built-in.
The CECLink is a small device that can be used to allow a Linux computer to control a TV using the CEC protocol over HDMI. This is particularly helpful for HTPCs, which often do not have the required hardware to do so built-in.
What's unique about this device is that it supports higher HDMI bandwidths. It is designed to work with and tested on a 4k, 10-bit HDR, 60FPS signal. This is done through following best practices for high-speed data lines.
Hdmi breakout bill of materials (BOM)
6 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x09 | PinHeader_1x09_P2.54mm_Vertical | J1, J4 |
| 2 | HDMI_A_1.4 | HDMI_A_Molex_208658-1001_Horizontal | J2, J3 |
| 2 | 100k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
Hdmi breakout design files
The KiCad project lives in the flaviut/ceclink repository on GitHub; these links point at the commit this page was built from.
Hdmi breakout: common questions
How big is the Hdmi breakout?
The Hdmi breakout measures 35 × 29 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Hdmi breakout?
6 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Hdmi breakout design files?
From the flaviut/ceclink repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Hdmi breakout design in my own project?
The repository has no license, so all rights stay with flaviut. Use it as a reference, and ask the author before reusing the design.
