KiCad-Prime-D PCB layout, top view — open source AVR/Arduino board by florida-space-institute-nc-lab

About the KiCad-Prime-D PCB

KiCad-Prime-D is an open source AVR/Arduino PCB design by florida-space-institute-nc-lab, published on GitHub. It is a 2-layer board measuring 68.6 × 53.3 mm, with 33 components from 22 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. By type, the board carries 16 connectors, 6 resistors, 3 diodes, 3 capacitors, 2 transistors and 2 switches.

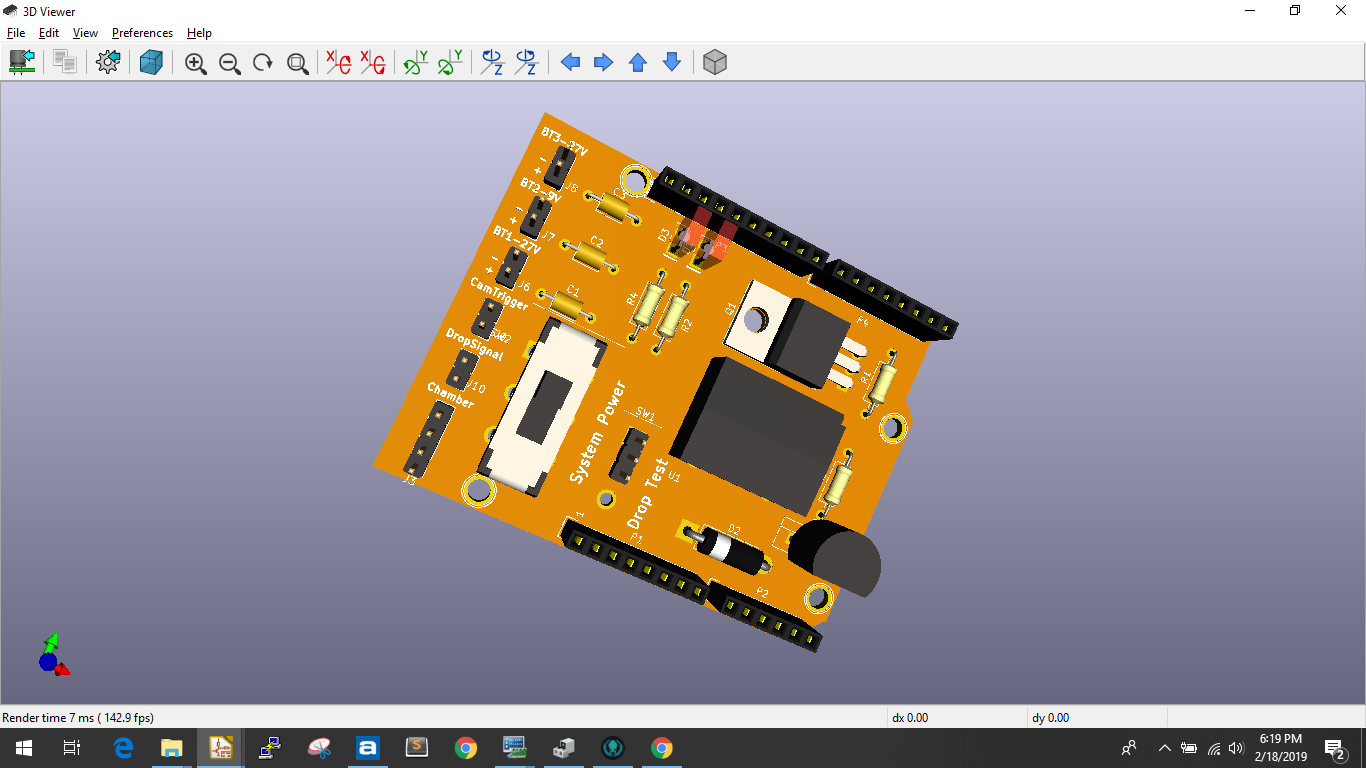

KiCad-Prime-D, from the project README
From the project README

KiCad-Prime-D bill of materials (BOM)

33 components, 22 distinct parts.

QtyPartRefs
1
IRLI3705N
Q1
1
NPN-2N2222
Q2
2
GS2
J1, J2
1
Connector_Chamber
J3
1
BAT1_27V
J6
1
BAT2_9V
J7
1
BAT3_27V
J8
1
CameraTrigger
J9
1
DropSignal
J10
1
Power
P1
1
Analog
P2
1
Digital
P3
1
Digital
P4
4
CONN_01X01
P5, P6, P7, P8
1
ORWH-SH-105D1F,000
K1
1
RED-SW_Push_SPDT
SW1
1
SW_DPDT_x2
SW2
2
LED
D1, D3
1
1N4007
D2
3
1uF
C1, C2, C3
Show 2 more
QtyPartRefs
4
100K
R1, R2, R5, R6
2
150
R3, R4

KiCad-Prime-D design files

The KiCad project lives in the florida-space-institute-nc-lab/KiCad-Prime-D repository on GitHub; these links point at the commit this page was built from.

KiCad-Prime-D: common questions

What microcontroller does the KiCad-Prime-D use?

The KiCad-Prime-D is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the KiCad-Prime-D PCB?

The KiCad-Prime-D measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad-Prime-D?

33 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the KiCad-Prime-D design files?

From the florida-space-institute-nc-lab/KiCad-Prime-D repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the KiCad-Prime-D design in my own project?

The repository has no license, so all rights stay with florida-space-institute-nc-lab. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the KiCad-Prime-D without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
