Output stage for Mk2PVRouter

FredM67·PVRouter-KiCad·output_stage/Output_stage.kicad_pcb

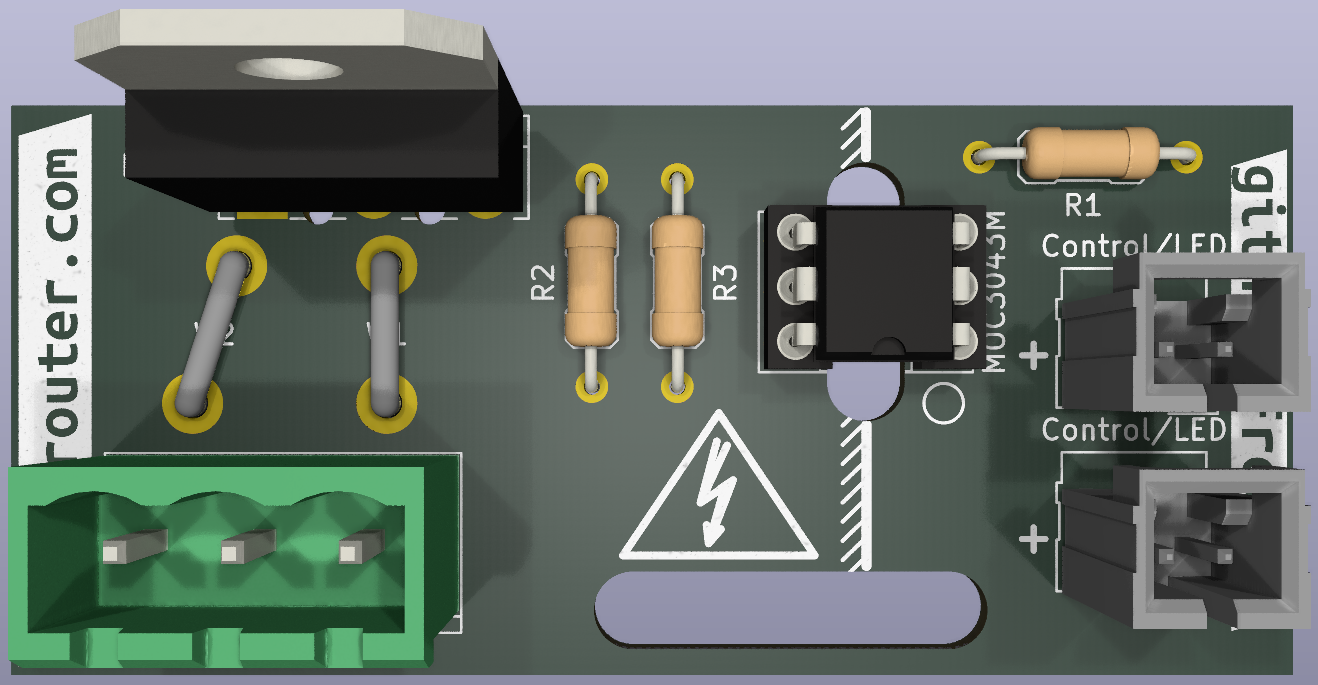

Output stage for Mk2PVRouter PCB layout, top view — open source board by FredM67

About the Output stage for Mk2PVRouter PCB

Output stage for Mk2PVRouter is an open source PCB design by FredM67, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 62.9 × 27.9 mm, with 8 components from 7 distinct parts.

Other key parts include the MOC3043M. By type, the board carries 3 connectors, 3 resistors, 1 IC and 1 transistor.

From the project

Carte de sortie à triac pour le Mk2 PV Router. Chaque carte pilote une charge secteur (chauffe-eau, radiateur, etc.) via un triac de puissance commandé par optocoupleur à passage par zéro.

Carte de sortie à triac pour le Mk2 PV Router. Chaque carte pilote une charge secteur (chauffe-eau, radiateur, etc.) via un triac de puissance commandé par optocoupleur à passage par zéro.

L'étage de sortie assure l'isolation galvanique entre la logique basse tension du routeur et la charge secteur. Il utilise un optocoupleur MOC3043M à détection de passage par zéro pour commander un triac de puissance BTA41-600B (41 A / 600 V).

Output stage for Mk2PVRouter, from the project README — From the project README

Main components on the Output stage for Mk2PVRouter

Output stage for Mk2PVRouter bill of materials (BOM)

8 components, 7 distinct parts.

Qty	Part	Footprint	Refs
1	MOC3043M	DIP-6_W7.62mm_Socket_LongPads	U1
1	BTA41	TO-218-3_Vertical	Q1
1	Conn_01x03_Socket	PhoenixContact_MSTBVA_2,5_3-G-5,08_1x03_P5.08mm_Vertical	J1
2	Control/LED	Molex_SL_171971-0002_1x02_P2.54mm_Vertical	J2, J3
1	220	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R1
1	330	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R2
1	360	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R3

Output stage for Mk2PVRouter design files

The KiCad project lives in the FredM67/PVRouter-KiCad repository on GitHub; these links point at the commit this page was built from.

Layoutoutput_stage/Output_stage.kicad_pcb
Schematicoutput_stage/Output_stage.kicad_sch

Output stage for Mk2PVRouter: common questions

How big is the Output stage for Mk2PVRouter PCB?

The Output stage for Mk2PVRouter measures 62.9 × 27.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Output stage for Mk2PVRouter?

8 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Output stage for Mk2PVRouter design files?

From the FredM67/PVRouter-KiCad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Output stage for Mk2PVRouter design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which FredM67 chose for the repository.
