About the Perfplusplus PCB

Perfplusplus is an open source AVR/Arduino PCB design by FyberLabs, published on GitHub. It is a 2-layer board measuring 68.6 × 53.3 mm, with 457 components from 7 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. By type, the board carries 24 jumpers and 8 connectors.

From the project

Perf board designs based on perf+2 - https://www.crowdsupply.com/ben-wang/perf-2

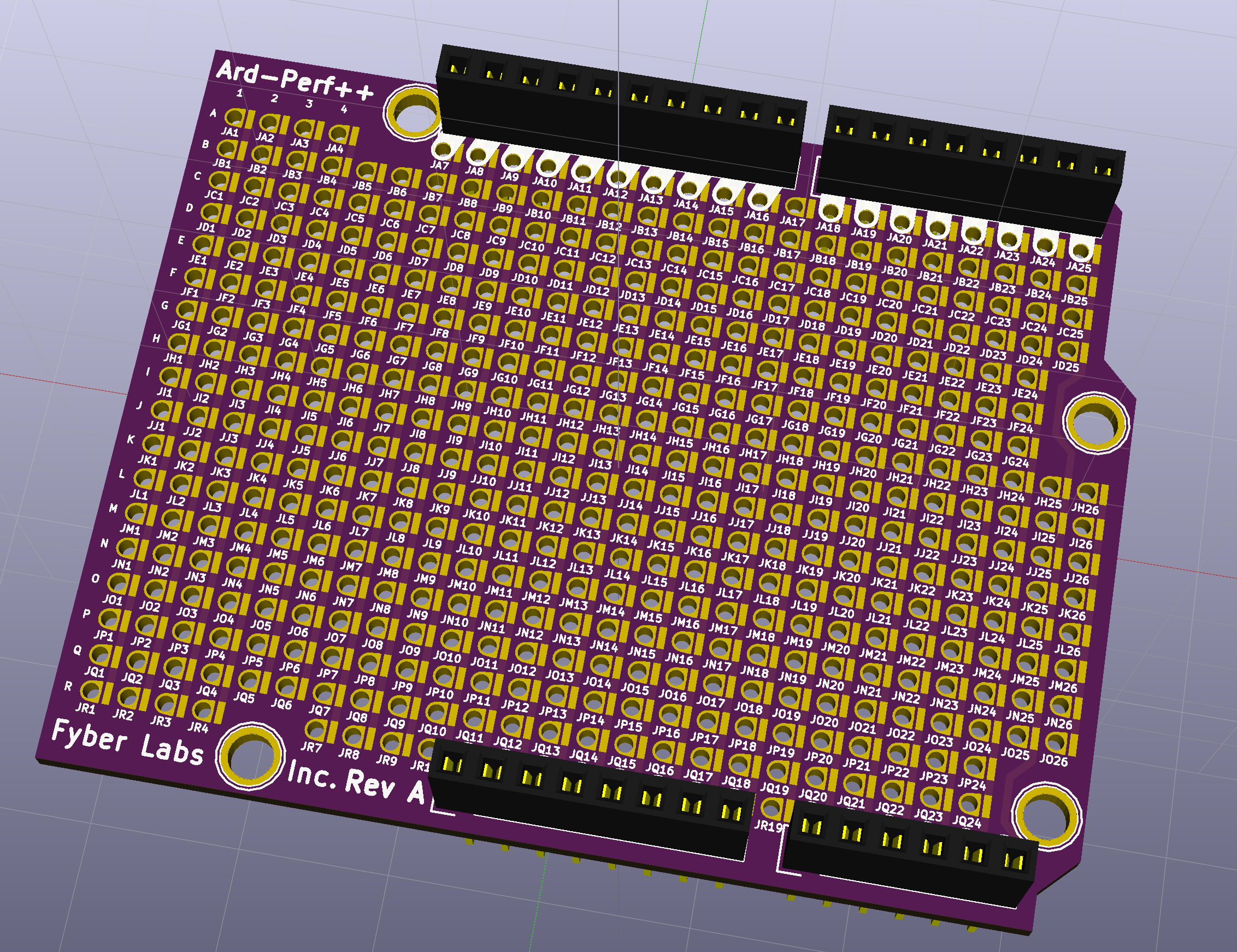

Perfplusplus, from the project README
From the project README

Perfplusplus bill of materials (BOM)

457 components, 7 distinct parts.

QtyPartRefs
1
Power
P1
1
Analog
P2
1
Digital
P3
1
Digital
P4
4
CONN_01X01
P5, P6, P7, P8
425
perf+2
JA1, JA2, JA3, JA4, JA7, JA8, JA9, JA10 +417
24
perf+2
JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 +16

Perfplusplus design files

The KiCad project lives in the FyberLabs/perfplusplus repository on GitHub; these links point at the commit this page was built from.

Perfplusplus: common questions

What microcontroller does the Perfplusplus use?

The Perfplusplus is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the Perfplusplus PCB?

The Perfplusplus measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Perfplusplus?

457 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Perfplusplus design files?

From the FyberLabs/perfplusplus repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Perfplusplus design in my own project?

The repository has no license, so all rights stay with FyberLabs. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Perfplusplus without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
