Gejipad 8s4re

gejigeji-com·gejipad_8s4re

Gejipad 8s4re PCB layout, top view — open source board by gejigeji-com

About the Gejipad 8s4re PCB

Gejipad 8s4re is an open source PCB design by gejigeji-com, published on GitHub. It is a 2-layer board measuring 153 × 65 mm, with 14 components from 4 distinct parts.

Other key parts include the 102900. By type, the board carries 13 switches and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

自作キーボード「gejipad_8s4re」のハードウェア設計データ(KiCad)を公開するリポジトリです。

自作キーボード「gejipad_8s4re」のハードウェア設計データ(KiCad)を公開するリポジトリです。

production/gerbers/ 内のガーバーデータをPCB製造業者(JLCPCBなど)にアップロード

1. 部品は production/gejipad8s4re-BOM.csv を参照 2. 組み立て方法は docs/assembly.md` を参照

本キーボードのファームウェアは QMK Firmware への統合を申請中です(統合先パス: keyboards/gejigeji/gejipad8s4re/`)。現時点では未マージのため、ハードウェア(本リポジトリ)とは別管理とし、キーマップ等のファームウェア関連ファイルはこのリポジトリには含めていません。

マージ後はQMK Firmwareの keyboards/gejigeji/gejipad8s4re/` に統合される予定です。

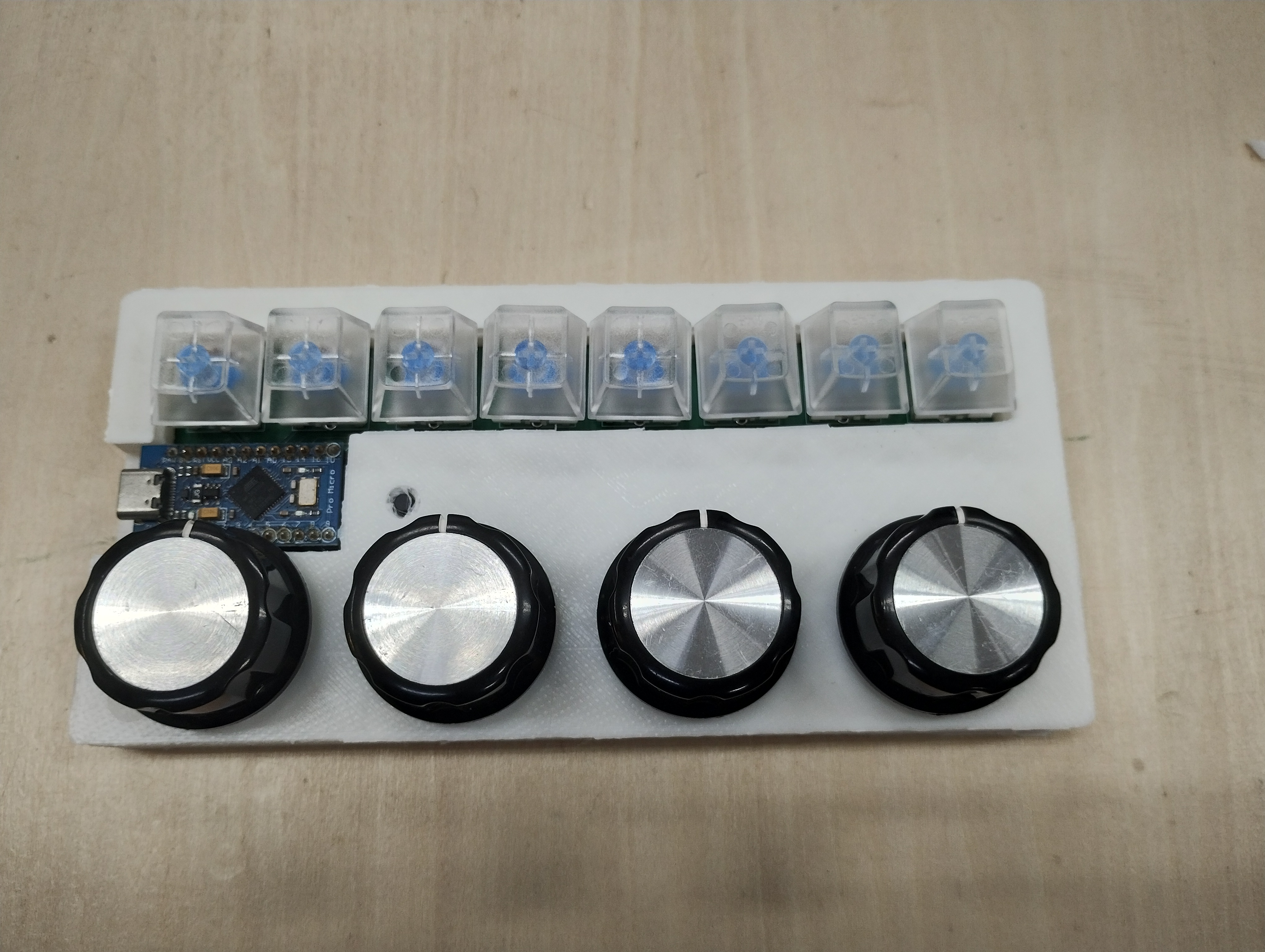

Gejipad 8s4re, from the project README
From the project README

Main components on the Gejipad 8s4re

102900

Gejipad 8s4re bill of materials (BOM)

14 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
102900
ProMicro
U1
1
103647
RESET
SW1
4
106357
RotaryEncoder
アルプスアルパイン株式会社
SW2, SW3, SW4, SW5
8
SW_Push
SW6, SW7, SW8, SW9, SW10, SW11, SW12, SW13

Gejipad 8s4re design files

The KiCad project lives in the gejigeji-com/gejipad_8s4re repository on GitHub; these links point at the commit this page was built from.

Gejipad 8s4re: common questions

How big is the Gejipad 8s4re PCB?

The Gejipad 8s4re measures 153 × 65 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gejipad 8s4re?

14 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Gejipad 8s4re design files?

From the gejigeji-com/gejipad_8s4re repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Gejipad 8s4re design in my own project?

The repository has no license, so all rights stay with gejigeji-com. Use it as a reference, and ask the author before reusing the design.
