About the Moisture sensor PCB
Moisture sensor is an open source STM32 PCB design by gratinDeTopinambour, published on GitHub. It is a 2-layer board measuring 24 × 100 mm, with 22 components from 15 distinct parts.
Its main chip is the STM32U073C8Tx, from the STM32 family. Other key parts include the LCD_3_DIGIT. By type, the board carries 12 capacitors, 3 switches, 2 ICs, 2 connectors, 2 resistors and 1 diode.
It belongs with the displays & leds, sensors and power & battery designs in this gallery.
From the project

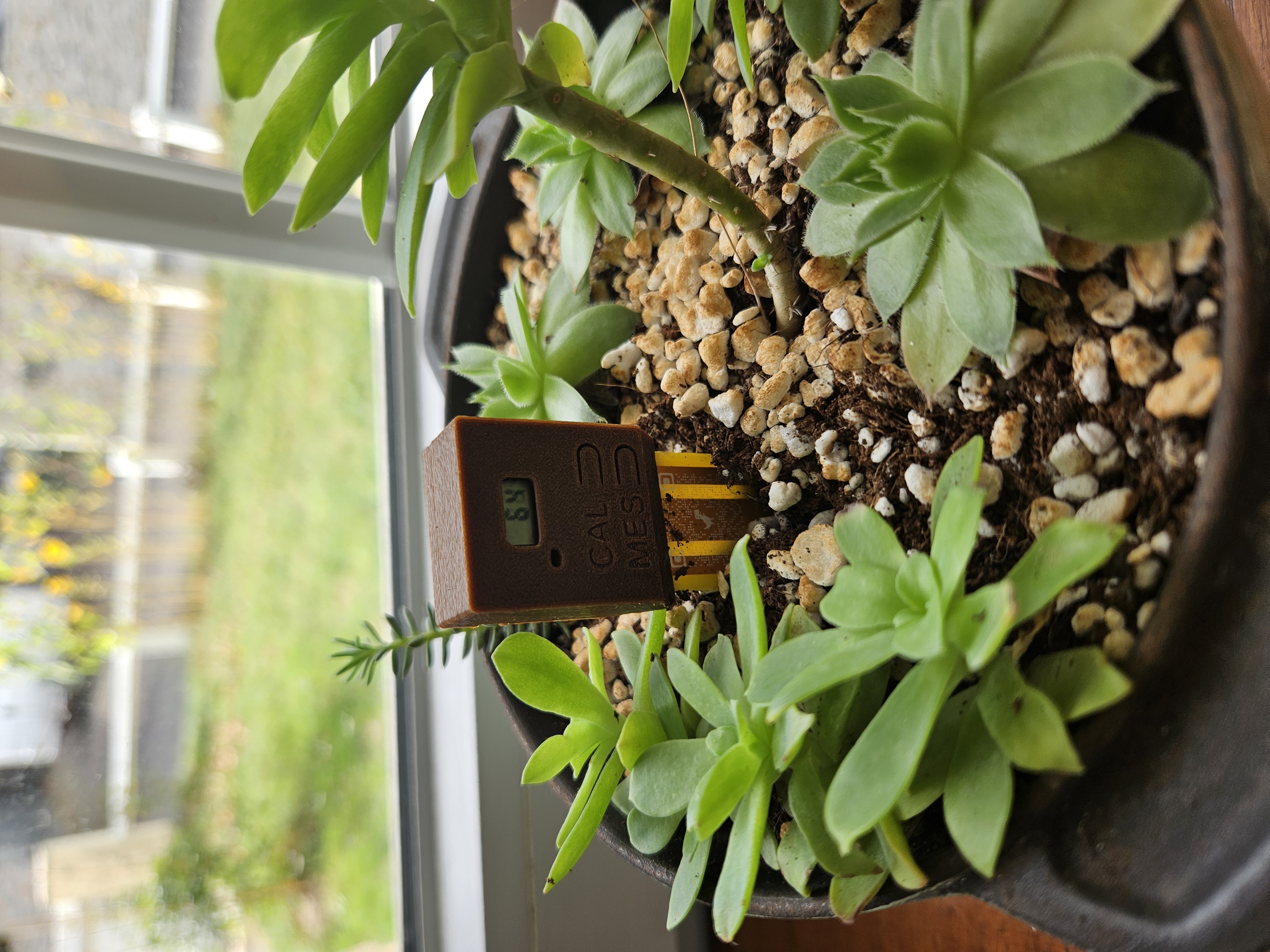

A low-power capacitive soil moisture sensor with an LCD display for indoor plant monitoring.
A complete open-source capacitive soil moisture sensor project based on the STM32U073CB microcontroller.
This repository contains all resources for the project: 📐 3D Design: Modular enclosure for 3D printing. 🔌 Electronics (V1 & V2): KiCad files, Gerbers, BOM, PDF schematics, and 3D models. 💻 Firmware: C/C++ source code optimized for STM32 (STM32CubeIDE / STM32CubeMX project). 📖 Documentation: User manual and component datasheets.

Main components on the Moisture sensor
Moisture sensor bill of materials (BOM)
22 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32U073C8Tx | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | LCD_3_DIGIT | LCD_DISPLAY_THT_10PIN | U4 |
| 1 | CR2032_holder_smd | Porte_Pile_CR2032_smd | J1 |
| 1 | ST-link | PinSocket_1x04_P1.27mm_Vertical | J3 |
| 1 | NRST | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | SW1 |
| 1 | SwA | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | SW2 |
| 1 | SwB | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | SW3 |
| 1 | RED_LED | LED_0805_2012Metric | D1 |
| 1 | 10uF | C_0805_2012Metric | C1 |
| 7 | 100nF | C_0603_1608Metric | C5, C6, C8, C9, C11, C12, C13 |
| 2 | 1uF | C_0603_1608Metric | C7, C10 |
| 1 | Cprobe | C_Soil_Moisture_Probe | C15 |
| 1 | 47nF | C_1206_3216Metric | C16 |
| 1 | 1k | R_0603_1608Metric | R2 |
| 1 | 200 | R_0603_1608Metric | R3 |
Moisture sensor design files
The KiCad project lives in the gratinDeTopinambour/Moisture-sensor repository on GitHub; these links point at the commit this page was built from.
Moisture sensor: common questions
What microcontroller does the Moisture sensor use?
The Moisture sensor is built around the STM32U073C8Tx, from the STM32 family.
How big is the Moisture sensor PCB?
The Moisture sensor measures 24 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Moisture sensor?
22 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Moisture sensor design files?
From the gratinDeTopinambour/Moisture-sensor repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Moisture sensor design in my own project?
The repository has no license, so all rights stay with gratinDeTopinambour. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Moisture sensor without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
