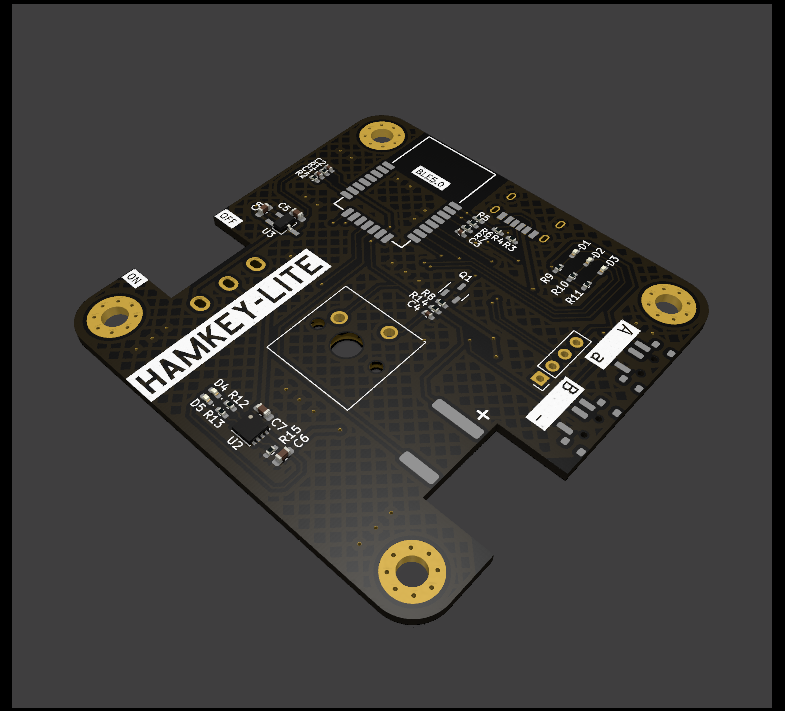

Lite PCB layout, top view — open source Nordic nRF board by HAM-Key

About the Lite PCB

Lite is an open source Nordic nRF PCB design by HAM-Key, published on GitHub under the MIT license. It is a 2-layer board measuring 61 × 60.2 mm, with 39 components from 27 distinct parts.

Its main chip is the nRF52810_module, from the Nordic nRF family. By type, the board carries 14 resistors, 8 capacitors, 5 diodes, 4 switches, 3 ICs and 1 transistor.

Lite, from the project README
From the project README

Lite bill of materials (BOM)

39 components, 27 distinct parts.

QtyPartRefs
1
~
U1
1
~
U2
1
~
U3
1
DTC143Z
Q1
1
Conn_01x04
J2
1
Battery_Cell
BATT1
1
Buzzer
BZ1
1
SW_Push
SW1
1
SW_SPDT
SW2
2
SW_SPDT
SW3, SW4
1
USB_C_Receptacle_PowerOnly_6P
USB1
2
RED
D1, D5
2
BLUE
D2, D4
1
WHITE
D3
3
0.1uF
C1, C2, C3
1
0.47uF
C4
3
1uF
C5, C6, C7
1
4.7uF
C8
1
470k
R1
1
1M
R2
Show 7 more
QtyPartRefs
3
5.1k
R3, R4, R7
1
10R
R6
1
100k
R8
3
470R
R9, R10, R11
2
1k
R12, R13
1
100R
R14
1
10k
R15

Lite design files

The KiCad project lives in the HAM-Key/Lite-layout repository on GitHub; these links point at the commit this page was built from.

Lite: common questions

What microcontroller does the Lite use?

The Lite is built around the nRF52810_module, from the Nordic nRF family.

How big is the Lite PCB?

The Lite measures 61 × 60.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lite?

39 components, from 27 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lite design files?

From the HAM-Key/Lite-layout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Lite design in my own project?

Yes, under the terms of its MIT license, which HAM-Key chose for the repository.

Can I test firmware for the Lite without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
