TOTEM

GEIGEIGEIST·TOTEM·PCB/totem_0-3/totem_0_3.kicad_pcb

TOTEM PCB layout, top view — open source Nordic nRF board by GEIGEIGEIST
Simulate this board

About the TOTEM PCB

TOTEM is an open source Nordic nRF PCB design by GEIGEIGEIST, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 258.8 × 94.4 mm, with 85 components from 7 distinct parts.

Its main chip is the xiao-ble, from the Nordic nRF family. By type, the board carries 2 ICs and 2 connectors.

It belongs with the keyboards, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

TOTEM is a 38 keys column-staggered split keyboard. It meant to be used with a SEEED XIAO BLE or RP2040

- download the ZIP file - upload the ZIP file to the website of the manufacturer. - sometimes the Gerber preview from JLCPCB can't display the PCB, even when the files are fine. In this case use these dimensions: 258.7mm * 94.35mm - PCB Thickness 1.6mm - 2 layers - PCB Qty as much as you like. One PCB is a full keyboard. - PCB Color Black (or any other color you like) - No impedance control - Surface Finish HASL(with lead) if you want the easiest soldering experience or LeadFree HASL. - Remove Order Number Yes

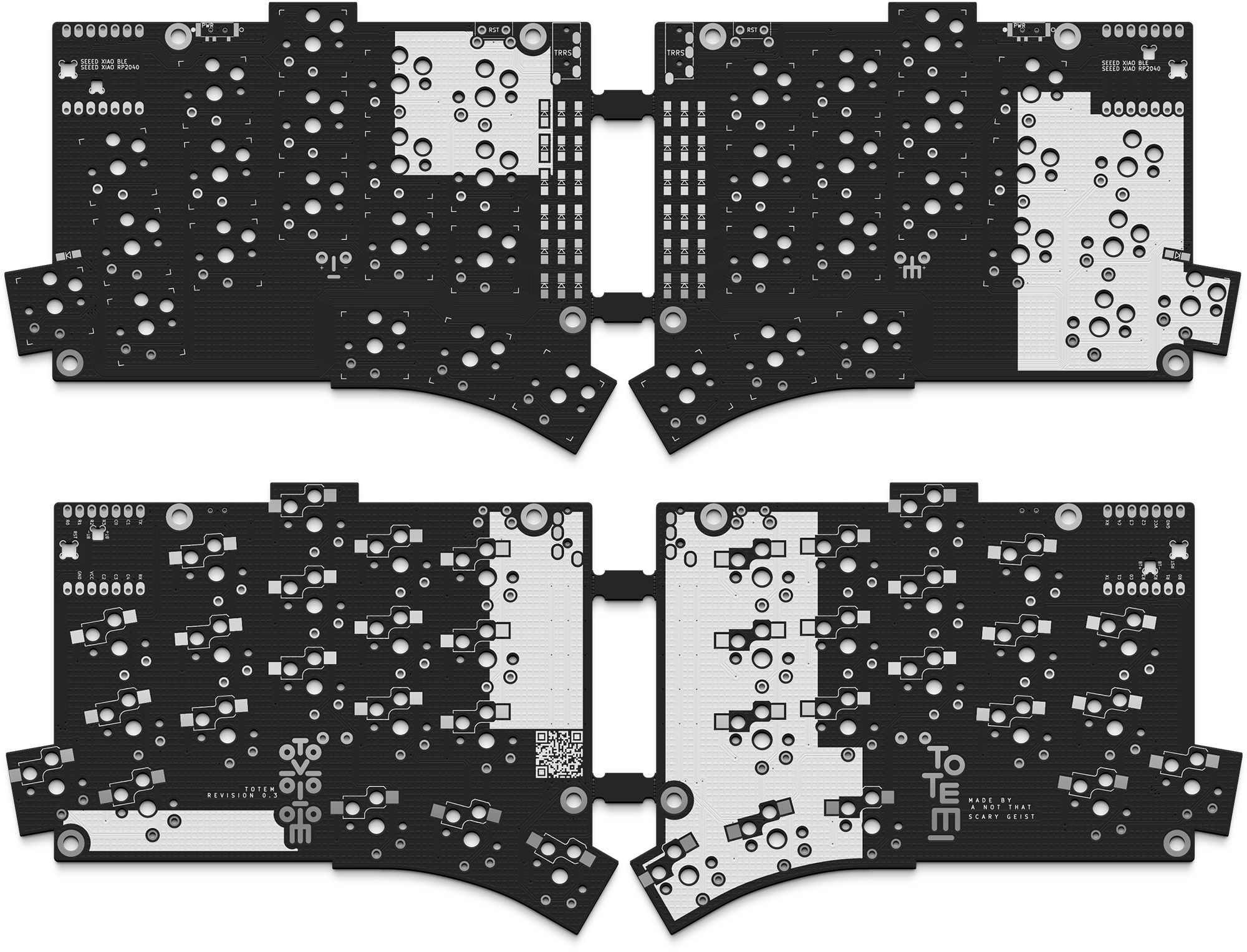

TOTEM, from the project README
From the project README

Main components on the TOTEM

xiao-ble

TOTEM bill of materials (BOM)

85 components, 7 distinct parts.

QtyPartRefs
2
xiao-ble
U1, U2
2
MJ-4PP-9
J1, J2
2
+
BAT+1, BAT+2
2
-
BATGND1, BATGND2
38
D_Small
DL1, DL2, DL3, DL4, DL5, DL6, DL7, DL8 +30
1
SW_Push
RSW1
38
SW_Push_45deg
SWL1, SWL2, SWL3, SWL4, SWL5, SWL6, SWL7, SWL8 +30

TOTEM design files

The KiCad project lives in the GEIGEIGEIST/TOTEM repository on GitHub; these links point at the commit this page was built from.

TOTEM: common questions

What microcontroller does the TOTEM use?

The TOTEM is built around the xiao-ble, from the Nordic nRF family.

How big is the TOTEM PCB?

The TOTEM measures 258.8 × 94.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TOTEM?

85 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the TOTEM design files?

From the GEIGEIGEIST/TOTEM repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the TOTEM design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which GEIGEIGEIST chose for the repository.

Can I test firmware for the TOTEM without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
