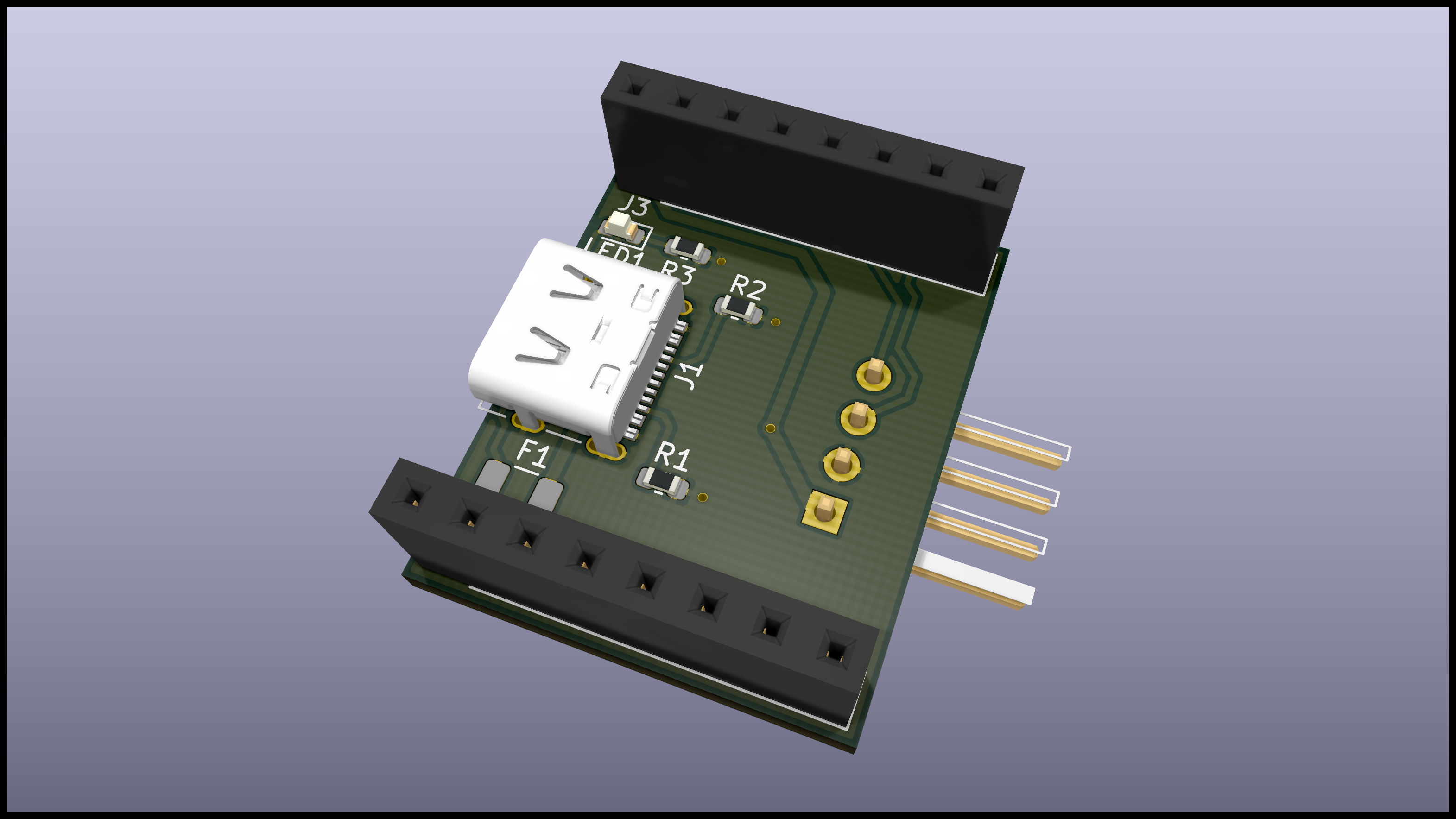

Esp32-cam power board
About the Esp32-cam power board
Esp32-cam power board is an open source PCB design by hampussandberg, published on GitHub. It is a 2-layer board measuring 21.7 × 26.7 mm, with 11 components from 9 distinct parts.
By type, the board carries 4 connectors, 4 resistors, 1 fuse, 1 switch and 1 LED.
From the project
Various ESP8266 and ESP32 boards
- GitHub repository - Interactive BOM{target="\_blank"}, created using InteractiveHtmlBom
Esp32-cam power board bill of materials (BOM)
11 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_Palconn_UTC16-G | J1 |
| 2 | Conn_01x08_Female | PinSocket_1x08_P2.54mm_Vertical | J2, J3 |
| 1 | Conn_01x04_Male | PinHeader_1x04_P2.54mm_Horizontal | J4 |
| 1 | 0ZCJ0100FF2E | Fuse_1206_3216Metric | F1 |
| 1 | SW_Push | SW_SPST_4x3x2mm | SW1 |
| 1 | Green | LED_0603_1608Metric | LED1 |
| 2 | 5k1 | R_0603_1608Metric | R1, R2 |
| 1 | 4k7 | R_0603_1608Metric | R3 |
| 1 | 10k | R_0603_1608Metric | R4 |
Esp32-cam power board design files
The KiCad project lives in the hampussandberg/esp-boards repository on GitHub; these links point at the commit this page was built from.
Esp32-cam power board: common questions
How big is the Esp32-cam power board?
The Esp32-cam power board measures 21.7 × 26.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Esp32-cam power board?
11 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Esp32-cam power board design files?
From the hampussandberg/esp-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Esp32-cam power board design in my own project?
The repository has no license, so all rights stay with hampussandberg. Use it as a reference, and ask the author before reusing the design.
