ESP8266-LED-Controller-Board
About the ESP8266-LED-Controller-Board

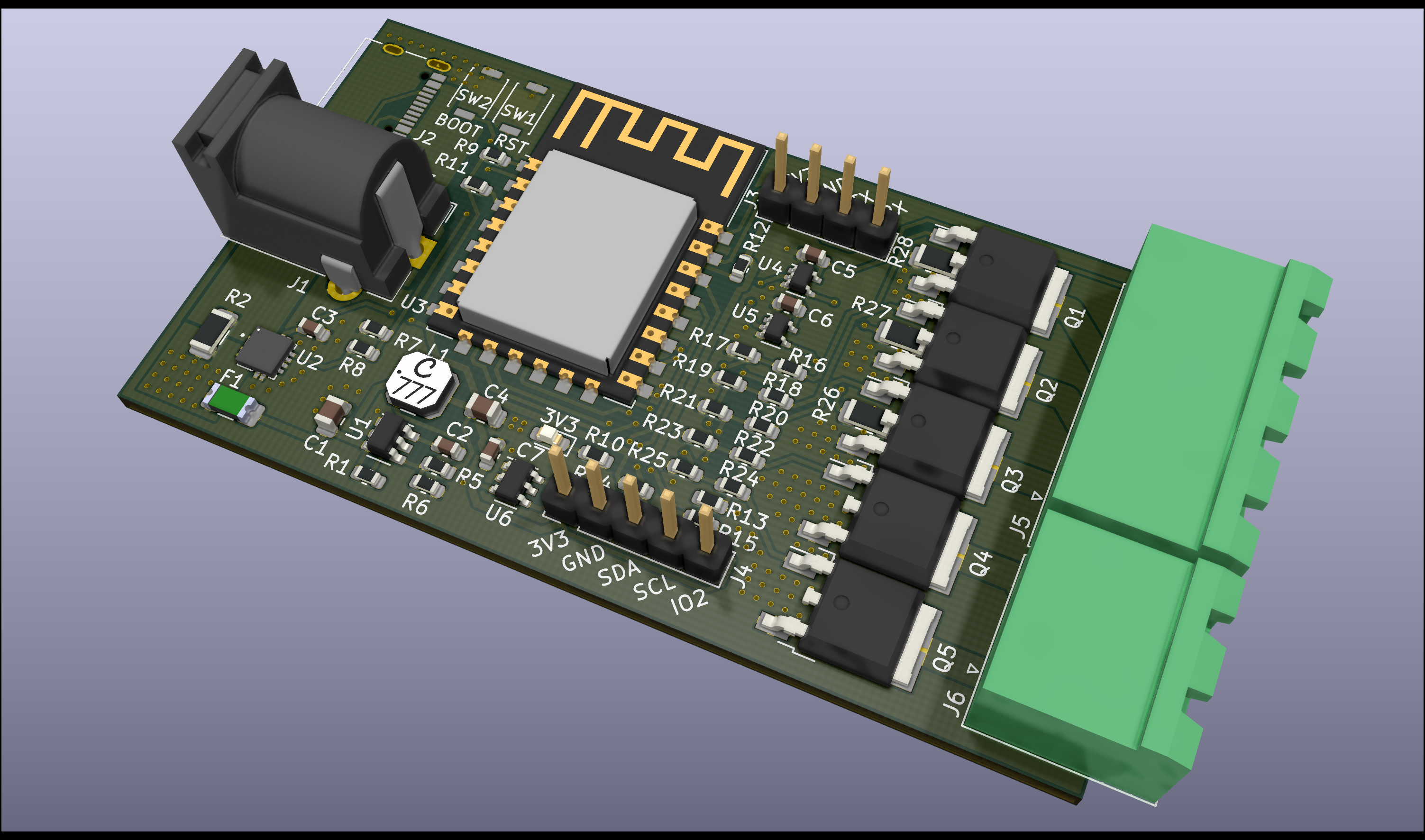

ESP8266-LED-Controller-Board is an open source ESP8266 PCB design by hampussandberg, published on GitHub. It is a 2-layer board measuring 70 × 38 mm, with 57 components from 24 distinct parts.
Its main chip is the ESP-12F, from the ESP8266 family. Other key parts include the TPS563200, ACS70331EESATR-005U3, SN74LV1T34DCKR and PCT2075GVX. By type, the board carries 28 resistors, 7 capacitors, 6 ICs, 6 connectors, 5 transistors and 2 switches.
It belongs with the displays & leds, iot & wireless and sensors designs in this gallery.
From the project
Various ESP8266 and ESP32 boards
- GitHub repository - Interactive BOM{target="\_blank"}, created using InteractiveHtmlBom
Main components on the ESP8266-LED-Controller-Board
ESP8266-LED-Controller-Board bill of materials (BOM)
57 components, 24 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPS563200 | SOT-23-6 | U1 |
| 1 | ACS70331EESATR-005U3 | ALLEGRO_ACS70331EESATR-005U3 | U2 |
| 1 | ESP-12F | ESP-12E | U3 |
| 2 | SN74LV1T34DCKR | SOT-353_SC-70-5 | U4, U5 |
| 1 | PCT2075GVX | TSOP-6_1.65x3.05mm_P0.95mm | U6 |
| 5 | NTD5867NLT4G | TO-252-2 | Q1, Q2, Q3, Q4, Q5 |
| 1 | Barrel_Jack_Switch | BarrelJack_CUI_PJ-102AH_Horizontal | J1 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_Palconn_UTC16-G | J2 |
| 1 | Conn_01x04_Male | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | Conn_01x05_Male | PinHeader_1x05_P2.54mm_Vertical | J4 |
| 1 | Screw_Terminal_01x04 | PhoenixContact_MSTBA_2,5_4-G_1x04_P5.00mm_Horizontal | J5 |
| 1 | Screw_Terminal_01x02 | PhoenixContact_MSTBA_2,5_2-G-5,08_1x02_P5.08mm_Horizontal | J6 |
| 1 | 0ZCJ0050AF2E | Fuse_0ZCJ_1206 | F1 |
| 2 | SW_Push | SW_SPST_4x3x2mm | SW1, SW2 |
| 1 | RED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | 3V3 |
| 1 | 2.2uH | L_Coilcraft_LPS4012 | L1 |
| 2 | 22u | C_0805_2012Metric | C1, C4 |
| 5 | 100n | C_0603_1608Metric | C2, C3, C5, C6, C7 |
| 15 | 10k | R_0603_1608Metric | R1, R6, R7, R9, R10, R11, R12, R13 +7 |
| 4 | 0R | R_1206_3216Metric | R2, R26, R27, R28 |
Show 4 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 5k1 | R_0603_1608Metric | R3, R4 |
| 1 | 33k2 | R_0603_1608Metric | R5 |
| 1 | 22k | R_0603_1608Metric | R8 |
| 5 | 100R | R_0603_1608Metric | R16, R18, R20, R22, R24 |
ESP8266-LED-Controller-Board design files
The KiCad project lives in the hampussandberg/esp-boards repository on GitHub; these links point at the commit this page was built from.
ESP8266-LED-Controller-Board: common questions
What microcontroller does the ESP8266-LED-Controller-Board use?
The ESP8266-LED-Controller-Board is built around the ESP-12F, from the ESP8266 family.
How big is the ESP8266-LED-Controller-Board?
The ESP8266-LED-Controller-Board measures 70 × 38 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ESP8266-LED-Controller-Board?
57 components, from 24 distinct parts. The full bill of materials is listed on this page.
Where can I download the ESP8266-LED-Controller-Board design files?
From the hampussandberg/esp-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ESP8266-LED-Controller-Board design in my own project?
The repository has no license, so all rights stay with hampussandberg. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the ESP8266-LED-Controller-Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
