FT230X-Serial-Board

hampussandberg·esp-boards·FT230X-Serial-Board/FT230X-Serial-Board.kicad_pcb

FT230X-Serial-Board layout, top view — open source board by hampussandberg

About the FT230X-Serial-Board

FT230X-Serial-Board is an open source PCB design by hampussandberg, published on GitHub. It is a 4-layer board measuring 34 × 19.3 mm, with 27 components from 17 distinct parts.

Other key parts include the FT230XQ. By type, the board carries 11 resistors, 5 capacitors, 4 connectors, 4 LEDs, 1 IC and 1 fuse.

It belongs with the usb & debug tools designs in this gallery.

From the project

Various ESP8266 and ESP32 boards

- GitHub repository - Interactive BOM{target="\_blank"}, created using InteractiveHtmlBom

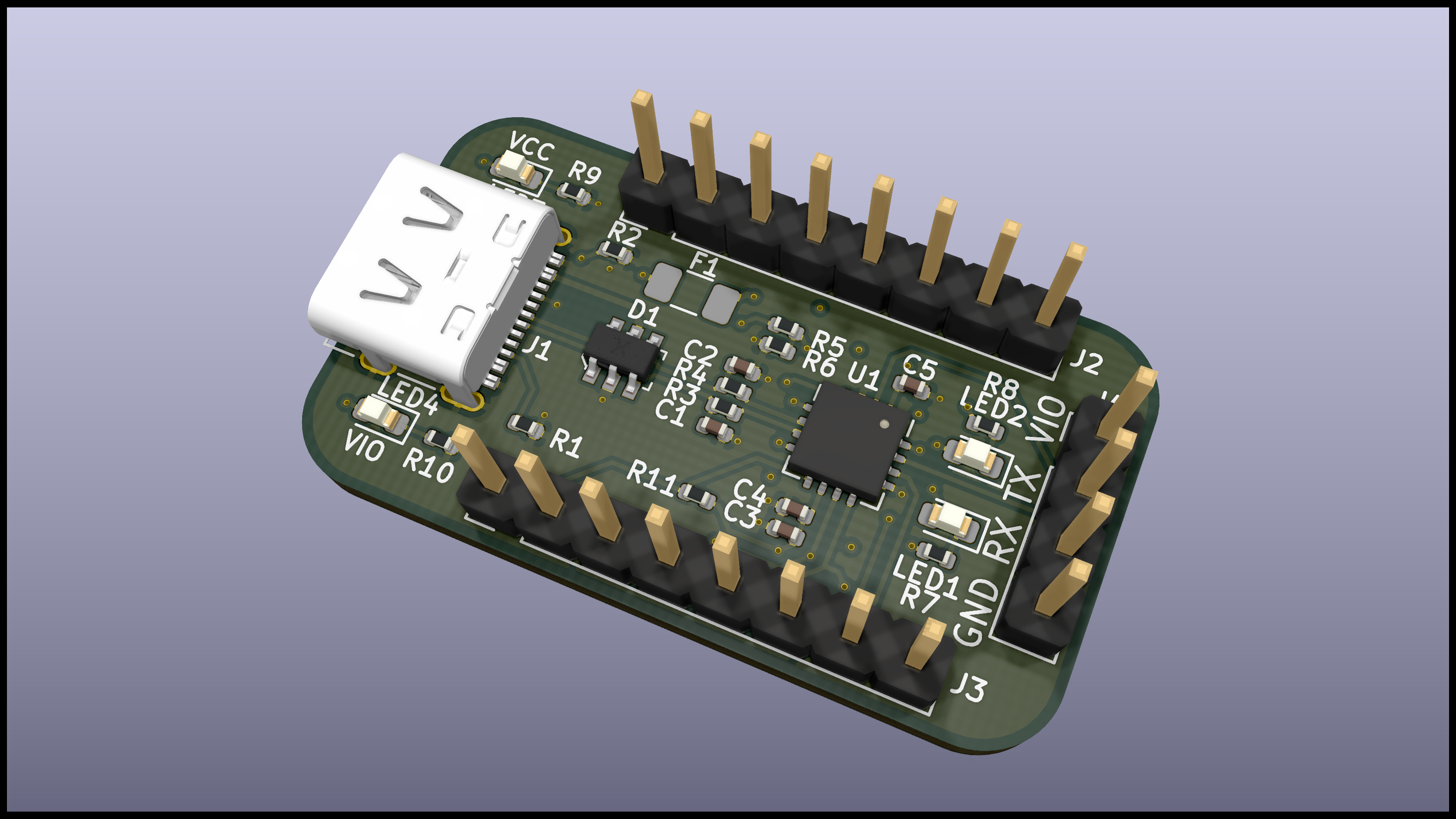

FT230X-Serial-Board, from the project README — From the project README

Main components on the FT230X-Serial-Board

FT230X-Serial-Board bill of materials (BOM)

27 components, 17 distinct parts.

Qty	Part	Footprint	Refs
1	FT230XQ	QFN-16-1EP_4x4mm_P0.65mm_EP2.1x2.1mm	U1
1	USB_C_Receptacle_USB2.0	USB_C_Receptacle_Palconn_UTC16-G	J1
2	Conn_01x08_Male	PinHeader_1x08_P2.54mm_Vertical	J2, J3
1	Conn_01x04_Male	PinHeader_1x04_P2.54mm_Vertical	J4
1	0ZCJ0100FF2E	Fuse_1206_3216Metric	F1
1	Red	LED_0603_1608Metric	LED1
3	Green	LED_0603_1608Metric	LED2, LED3, LED4
1	IP4234CZ6	SC-74	D1
2	47pF	C_0402_1005Metric	C1, C2
1	4u7	C_0402_1005Metric	C3
2	100n	C_0402_1005Metric	C4, C5
2	5k1	R_0402_1005Metric	R1, R2
2	27	R_0402_1005Metric	R3, R4
3	4k7	R_0402_1005Metric	R5, R9, R10
1	10k	R_0402_1005Metric	R6
2	270	R_0402_1005Metric	R7, R8
1	nc	R_0402_1005Metric	R11

FT230X-Serial-Board design files

The KiCad project lives in the hampussandberg/esp-boards repository on GitHub; these links point at the commit this page was built from.

LayoutFT230X-Serial-Board/FT230X-Serial-Board.kicad_pcb

FT230X-Serial-Board: common questions

How big is the FT230X-Serial-Board?

The FT230X-Serial-Board measures 34 × 19.3 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the FT230X-Serial-Board?

27 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the FT230X-Serial-Board design files?

From the hampussandberg/esp-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the FT230X-Serial-Board design in my own project?

The repository has no license, so all rights stay with hampussandberg. Use it as a reference, and ask the author before reusing the design.
