Yrm100-rfid flipper board
About the Yrm100-rfid flipper board
Yrm100-rfid flipper board is an open source PCB design by Hanz-Tech, published on GitHub under the MIT license. It is a 2-layer board measuring 64 × 54.6 mm, with 10 components from 9 distinct parts.
Other key parts include the Flipper_Zero. By type, the board carries 3 connectors, 2 capacitors, 2 resistors, 1 module, 1 switch and 1 diode.
From the project

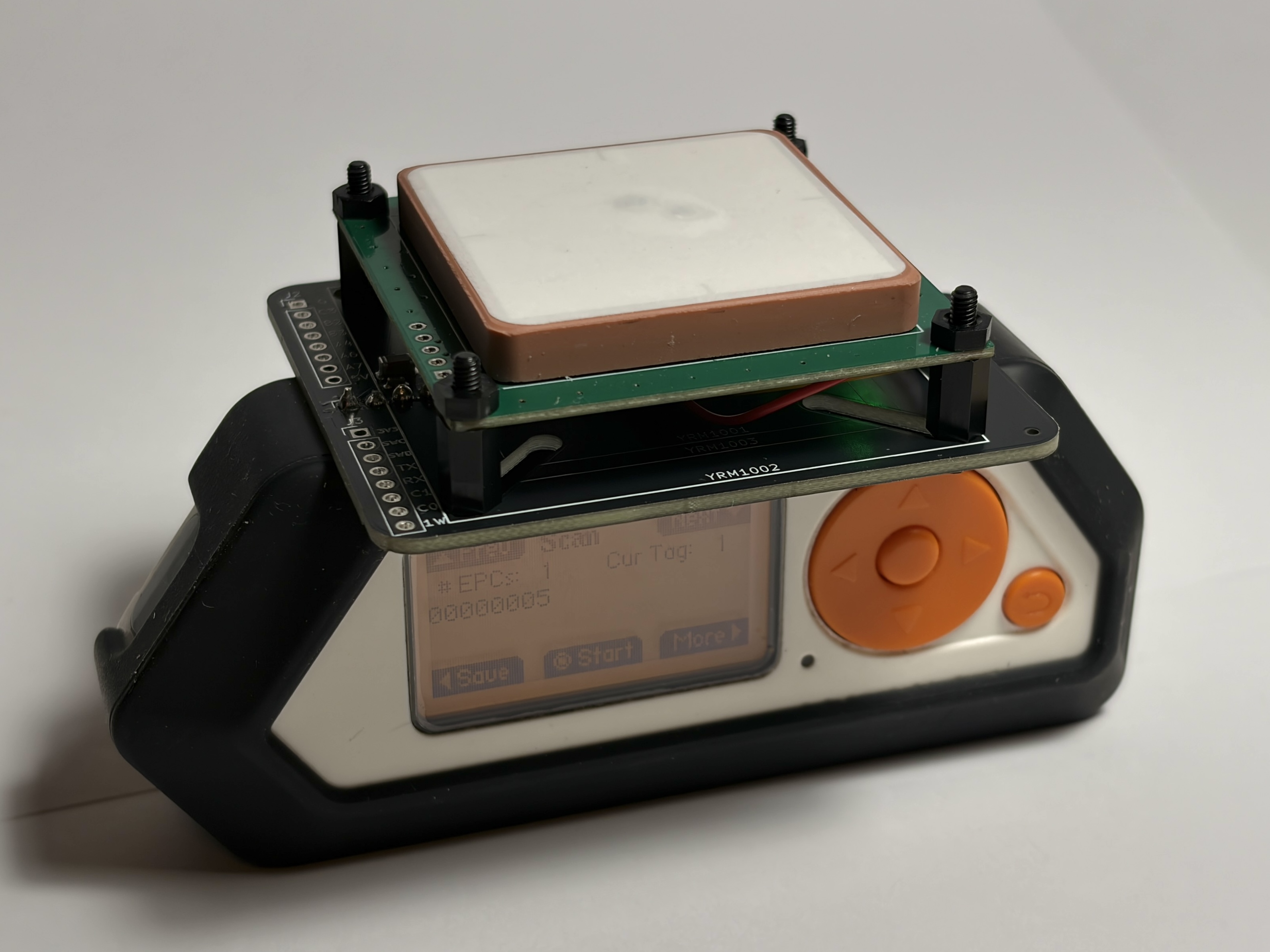

A adapter board for YRM100* UHF RFID for Flipper Zero
A hat-style adapter PCB that plugs directly into the Flipper Zero and connects to the YRM100/1/2/3 UHF RFID module, enabling long-range RFID reading/writing out of the box. Works with YRM1001/YRM1002/YRM1003 boards.
Available for purchase from Tindie or Etsy
This adapter board bridges the Flipper Zero's GPIO headers to the YRM100 UHF RFID module via a plug-and-play form factor. It provides:
Main components on the Yrm100-rfid flipper board
Yrm100-rfid flipper board bill of materials (BOM)
10 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Flipper_Zero | Flipper_Zero_Angled | A1 |
| 1 | 1.25T-5P Conn_01x05_Pin BOOMELE | CONN-SMD_5P-P1.25_1.25T-5PWT | J1 |
| 2 | Conn_01x08_Socket | PinHeader_1x08_P2.54mm_Vertical | J2, J3 |
| 1 | SW_NIDEC_CAS-120A1 SW_Nidec_CAS-120A1 | SW-SMD_K3-1235S-K1 | SW2 |
| 1 | KT-0805G LED Hubei KENTO Elec | LED_0805_2012Metric | D1 |
| 1 | CC0603KRX7R9BB104 100nF YAGEO | C_0603_1608Metric | C1 |
| 1 | CL31A226KAHNNNE 22uF Samsung | C_1206_3216Metric | C2 |
| 1 | 0603WAF1002T5E 10k UniOhm | R_0603_1608Metric | R1 |
| 1 | 0603WAF1001T5E 1K UniOhm | R_0603_1608Metric | R2 |
Yrm100-rfid flipper board design files
The KiCad project lives in the Hanz-Tech/yrm100-rfid-flipper-board repository on GitHub; these links point at the commit this page was built from.
- Layoutyrm100_adapter.kicad_pcb
- Schematicyrm100_adapter.kicad_sch
- BOMproduction/bom.csv
Yrm100-rfid flipper board: common questions
How big is the Yrm100-rfid flipper board?
The Yrm100-rfid flipper board measures 64 × 54.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Yrm100-rfid flipper board?
10 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Yrm100-rfid flipper board design files?
From the Hanz-Tech/yrm100-rfid-flipper-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Yrm100-rfid flipper board design in my own project?
Yes, under the terms of its MIT license, which Hanz-Tech chose for the repository.
