Micro sd spi breakout module layout, top view — open source board by Harshavar8jdm

About the Micro sd spi breakout module

Micro sd spi breakout module is an open source PCB design by Harshavar8jdm, published on GitHub. It is a 2-layer board measuring 28 × 22 mm, with 6 components from 5 distinct parts.

Other key parts include the TF-SMD_TF-PUSH. By type, the board carries 2 capacitors, 2 resistors, 1 IC and 1 connector.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A compact, high-performance, 2-layer MicroSD Card Breakout Board designed in KiCad for embedded microcontrollers using the SPI (Serial Peripheral Interface) bus.

A compact, high-performance, 2-layer MicroSD Card Breakout Board designed in KiCad for embedded microcontrollers using the SPI (Serial Peripheral Interface) bus.

Designed specifically for 3.3V native logic ecosystems (STM32, ESP32, RP2040, SAMD, Nordic, etc.), this module provides clean power decoupling, signal pull-ups, and a low-EMI ground plane layout.

Native 3.3V Operation: Designed without slow active/passive level shifters, maximizing SPI bus speeds (up to 25 MHz) with zero signal propagation delay. Transient Power Decoupling: Dedicated 10 uF bulk ceramic cap (C1) and 100 nF…

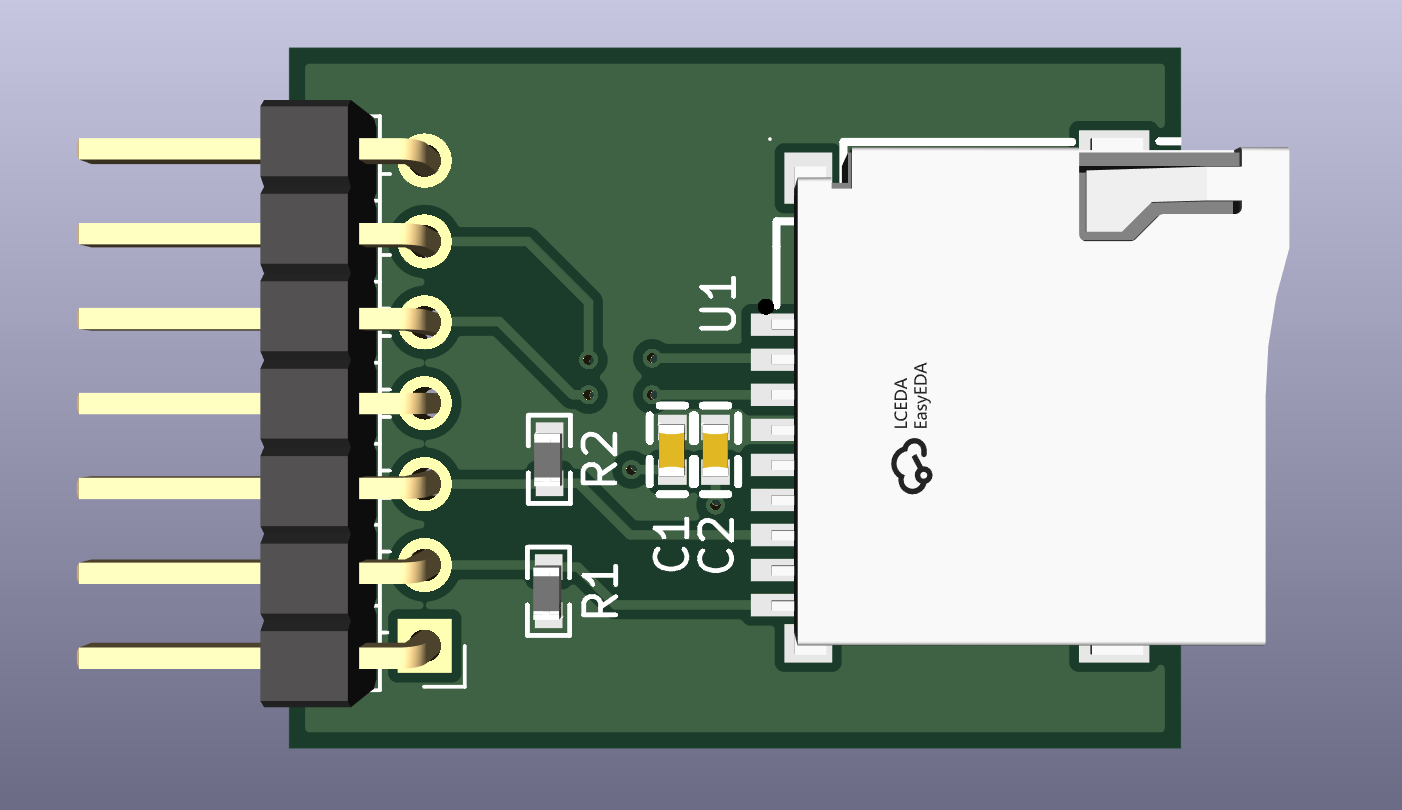

Micro sd spi breakout module, from the project README
From the project README

Main components on the Micro sd spi breakout module

TF-SMD_TF-PUSH

Micro sd spi breakout module bill of materials (BOM)

6 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TF-SMD_TF-PUSH
U1
1
Conn_01x07_Pin
J1
1
10uF
C1
1
100nF
C2
2
10K
R1, R2

Micro sd spi breakout module design files

The KiCad project lives in the Harshavar8jdm/micro-sd-spi-breakout-module repository on GitHub; these links point at the commit this page was built from.

Micro sd spi breakout module: common questions

How big is the Micro sd spi breakout module?

The Micro sd spi breakout module measures 28 × 22 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Micro sd spi breakout module?

6 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Micro sd spi breakout module design files?

From the Harshavar8jdm/micro-sd-spi-breakout-module repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Micro sd spi breakout module design in my own project?

The repository has no license, so all rights stay with Harshavar8jdm. Use it as a reference, and ask the author before reusing the design.
