About the W5500 hardware PCB
W5500 hardware is an open source PCB design by hasanyucelcogal, published on GitHub. It is a board, with 39 components from 18 distinct parts.
Other key parts include the W5500. By type, the board carries 19 capacitors, 15 resistors, 1 IC, 1 crystal, 1 connector and 1 test point.
From the project

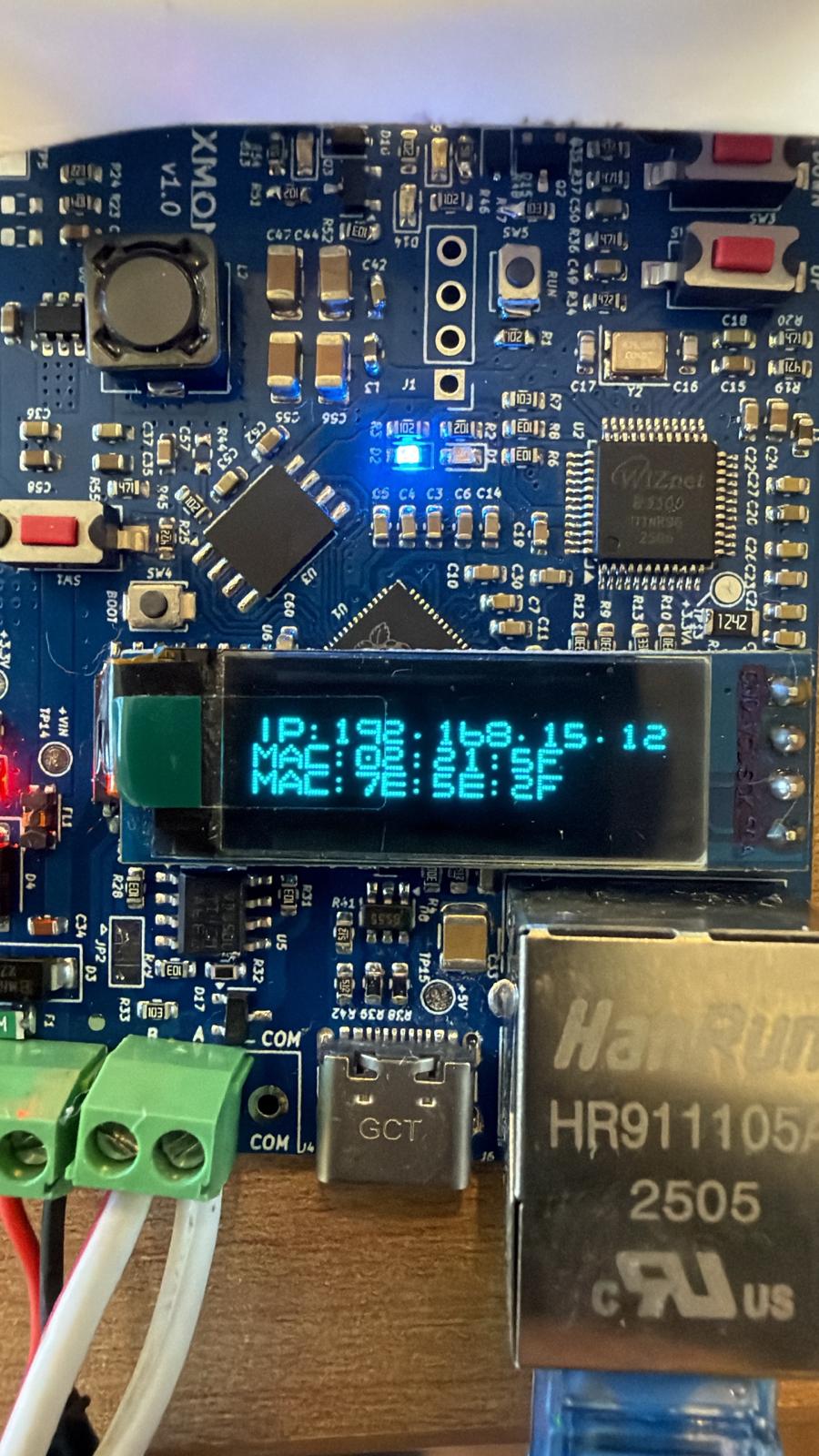

W5500 Ethernet controller Kicad schematic for use as subsheet. Design verified physically, parts chosen, packages given, extra notes and features added.
* Recommended to use as subsheets for sustainable designs. Connect as bus (ETHERNET bus) this schematic. Call from root page. If flat schematic type will be use, just place labels (L Key).
* W5500 needs typically 150mA input current. Recommended to set apart 300mA from source.
* Set PHY Operation Mode (PMODE) pins for your applications requirements. Default held high. Truth table below.
Main components on the W5500 hardware
W5500 hardware bill of materials (BOM)
39 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W5500 | LQFP-48_7x7mm_P0.5mm | U2 |
| 1 | RH100-25.000-10-F-2030-E 25MHz | Crystal_SMD_Abracon_ABM8AIG-4Pin_3.2x2.5mm | Y2 |
| 1 | HR911105A RJ45_Hanrun_HR911105A_Horizontal | RJ45_Hanrun_HR911105A_Horizontal | J2 |
| 1 | TestPoint_Small | TestPoint_Pad_D1.5mm | TP13 |
| 1 | BLM18KG121TN1D 120R @ 100MHz | L_0603_1608Metric | L1 |
| 2 | CL10A105KB8NNNC 1uF | C_0603_1608Metric | C15, C20 |
| 2 | CC0603JRNPO9BN180 18pF | C_0603_1608Metric | C16, C17 |
| 10 | CL10B104KB8NNNC 100nF | C_0603_1608Metric | C18, C19, C21, C22, C23, C25, C26, C27 +2 |
| 1 | CL10B475KQ8NQNC 4.7uF | C_0603_1608Metric | C24 |
| 2 | CL10B682KB8NNNC 6.8nF | C_0603_1608Metric | C28, C29 |
| 1 | CL10B223KB8NNNC 22nF | C_0603_1608Metric | C32 |
| 1 | CL32B102KJFNNNE 1nF | C_1210_3225Metric | C33 |
| 3 | AC0603JR-0710KL 10k | R_0603_1608Metric | R6, R7, R8 |
| 4 | RC0603JR-0733RL 33R | R_0603_1608Metric | R9, R10, R12, R13 |
| 1 | RC0603FR-0712K4L 12.4k | R_0603_1608Metric | R11 |
| 4 | ERA-3AEB49R9V 49.9R | R_0603_1608Metric | R14, R15, R16, R17 |
| 1 | RC0603FR-0710RL 10R | R_0603_1608Metric | R18 |
| 2 | RC0603JR-07470RL 470R | R_0603_1608Metric | R19, R20 |
W5500 hardware design files
The KiCad project lives in the hasanyucelcogal/w5500_hardware_kicad repository on GitHub; these links point at the commit this page was built from.
- Schematicw5500_hardware_kicad.kicad_sch
W5500 hardware: common questions
How many components are on the W5500 hardware?
39 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the W5500 hardware design files?
From the hasanyucelcogal/w5500_hardware_kicad repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the W5500 hardware design in my own project?
The repository has no license, so all rights stay with hasanyucelcogal. Use it as a reference, and ask the author before reusing the design.
