Ally13 Top PCB layout, top view — open source board by hatanoh

About the Ally13 Top PCB

Ally13 Top is an open source PCB design by hatanoh, published on GitHub. It is a 2-layer board measuring 261.3 × 79.9 mm, with 57 components from 12 distinct parts.

Other key parts include the BLE-Micro-Pro-2 and TPS61221. By type, the board carries 36 switches, 2 ICs, 2 connectors, 2 capacitors, 1 battery holder and 1 inductor.

It belongs with the keyboards designs in this gallery.

From the project

my various 30% keyboards

キーボードとしての基本的な動作には問題がないことは確認していますが、多少ネジ穴位置や組み立て難易度に難があります。

トッププレート裏にBMPを配置しているのでProMicroを重ねないタイプの普通のキーボードぐらいの厚さ(7mmスペーサー使用)になっています (Bootleg31除く/Bootleg31は11mm)

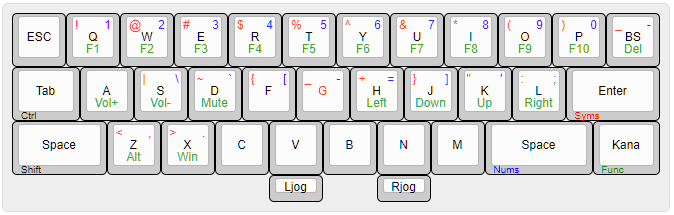

Ally13 Top, from the project README
From the project README

Main components on the Ally13 Top

BLE-Micro-Pro-2TPS61221

Ally13 Top bill of materials (BOM)

57 components, 12 distinct parts.

QtyPartRefs
1
BLE-Micro-Pro-2
U1
1
TPS61221
U2
1
Conn_01x16
J1
1
Conn_01x04
J2
1
Battery_Cell
BT1
12
MountingHole
H1, H2, H3, H4, H5, H6, H7, H8 +4
1
Conn_01x04
JModulo1
34
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +26
1
SW_RST
SW38
1
SW_PWR
SW39
1
4.7uH
L1
2
10uF
C1, C2

Ally13 Top design files

The KiCad project lives in the hatanoh/30p repository on GitHub; these links point at the commit this page was built from.

Ally13 Top: common questions

How big is the Ally13 Top PCB?

The Ally13 Top measures 261.3 × 79.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ally13 Top?

57 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ally13 Top design files?

From the hatanoh/30p repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Ally13 Top design in my own project?

The repository has no license, so all rights stay with hatanoh. Use it as a reference, and ask the author before reusing the design.
