About the TSRCT-PT100-SSR-PID-Temperature-Controller PCB

TSRCT-PT100-SSR-PID-Temperature-Controller is an open source AVR/Arduino PCB design by hefinn-lab, published on GitHub under the Custom license license. It is a 2-layer board measuring 90 × 80 mm, with 42 components from 16 distinct parts.

Its main chip is the ABX00033, from the AVR/Arduino family. Other key parts include the MAX31865ATP+. By type, the board carries 11 capacitors, 8 resistors, 7 diodes, 2 ICs, 2 connectors and 2 inductors.

It belongs with the sensors designs in this gallery.

From the project

Open-source, dual-channel PID temperature-control hardware for Arduino Nano Every, with SSR control, dual MAX31865 RTD sensing, Python/XLSX logging, and single-step FOPDT/SIMC analytical tuning.

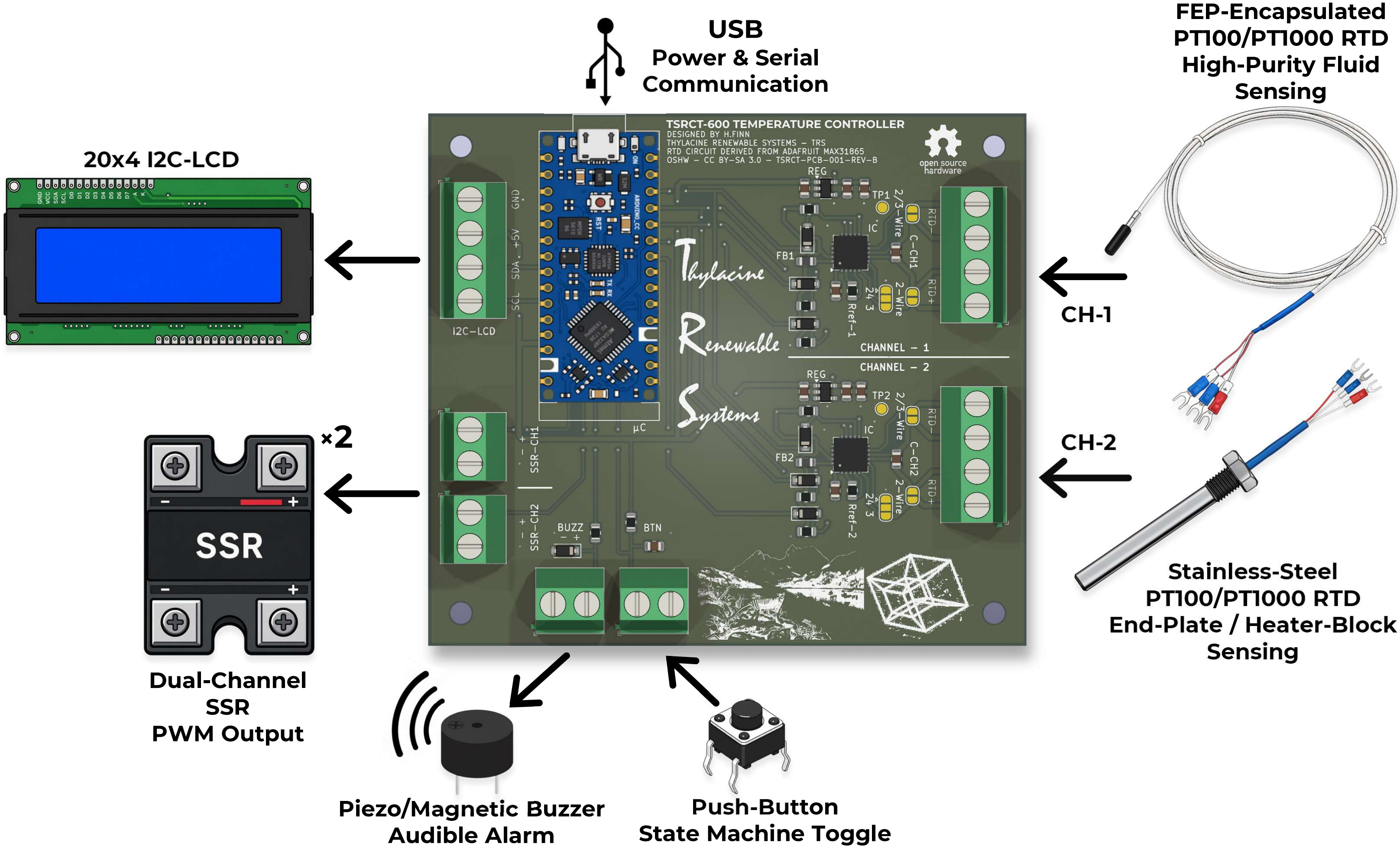

TSRCT-PCB-01 is an Arduino Nano Every–based temperature-control board for experimental thermal management. It connects two Pt100 or Pt1000 resistance temperature detectors (RTDs) to independent 5 V digital solid-state-relay (SSR) control outputs, with controller power and host communication through a single USB connection. External SSRs switch a separately powered heater circuit.

TSRCT-PT100-SSR-PID-Temperature-Controller, from the project README
From the project README

Main components on the TSRCT-PT100-SSR-PID-Temperature-Controller

MAX31865ATP+

TSRCT-PT100-SSR-PID-Temperature-Controller bill of materials (BOM)

42 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
MAX31865ATP+
MAX31865
Analog Devices
IC1, IC2
2
1715747
Screw_Terminal_01x04
Phoenix Contact
J6, J7
2
1715721
Screw_Terminal_01x02
Phoenix Contact
BTN1, BUZZ1
1
Screw_Terminal_01x04
I2C-LCD1
2
MIC5225-3.3YM5
MIC5225-3.3
Microchip
REG1, REG2
2
4.3k 0.1%
Rref-1, Rref-2
2
Screw_Terminal_01x02
SSR-CH1, SSR-CH2
1
ABX00033
Arduino_Nano_Every
Arduino
uC1
7
1N4148W-7-F-W
1N4148
Diodes Inc.
D1, D2, D3, D4, D5, D6, D7
2
BLM21PG221SN1D
FERRITE-0805NO
Murata
FB1, FB2
4
CL21B104KBCNNNC
0.1uF
Samsung
C1, C2, C8, C9
4
CL21A106KAYNNNG
10uF
Samsung
C4, C5, C11, C13
1
CL21B105KBFNNNE
1uF
Samsung
C6
2
10nF
C-CH1, C-CH2
7
RC0805FR-0710KL
10K
Yageo
R2, R3, R4, R6, R7, R8, R9
1
RC0805FR-07220RL
220
Yageo
R10

TSRCT-PT100-SSR-PID-Temperature-Controller design files

The KiCad project lives in the hefinn-lab/TSRCT-PT100-SSR-PID-Temperature-Controller repository on GitHub; these links point at the commit this page was built from.

TSRCT-PT100-SSR-PID-Temperature-Controller: common questions

What microcontroller does the TSRCT-PT100-SSR-PID-Temperature-Controller use?

The TSRCT-PT100-SSR-PID-Temperature-Controller is built around the ABX00033, from the AVR/Arduino family.

How big is the TSRCT-PT100-SSR-PID-Temperature-Controller PCB?

The TSRCT-PT100-SSR-PID-Temperature-Controller measures 90 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the TSRCT-PT100-SSR-PID-Temperature-Controller?

42 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TSRCT-PT100-SSR-PID-Temperature-Controller design files?

From the hefinn-lab/TSRCT-PT100-SSR-PID-Temperature-Controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the TSRCT-PT100-SSR-PID-Temperature-Controller design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the TSRCT-PT100-SSR-PID-Temperature-Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
