SuperCap2024V1.2R Power
About the SuperCap2024V1.2R Power PCB
SuperCap2024V1.2R Power is an open source PCB design by hkustenterprize, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 41 × 60 mm, with 42 components from 27 distinct parts.
Other key parts include the UCC27201ADR and INA240A1PW. By type, the board carries 14 capacitors, 10 resistors, 6 diodes, 4 transistors, 4 connectors and 2 ICs.
From the project

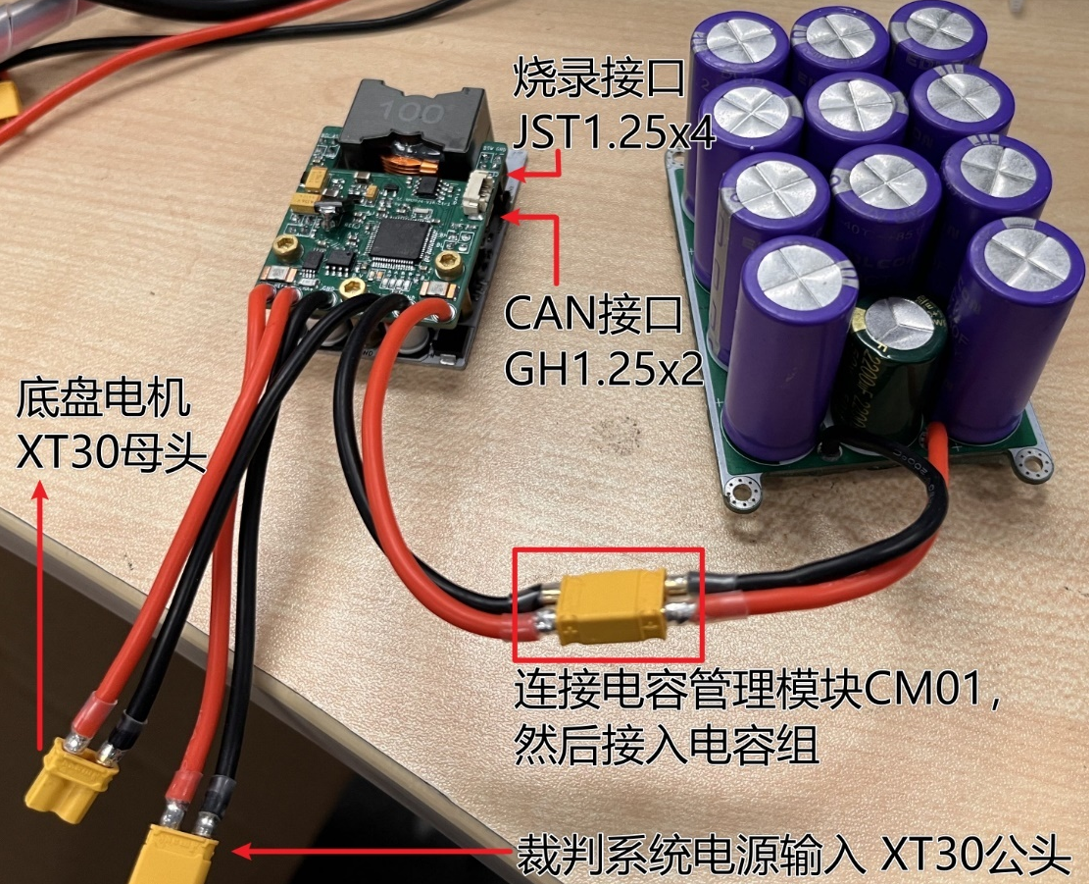

The super capacitor project of RM2024 Enterprize. Both Hardware and Software are included.
得到build/目录下RM2024-SuperCap-F3-V1R.elf文件即为编译成功。
用户代码全部位于 Core/ 中，将相应文件转移到另生成的项目中可以轻松移植。例如专用STM32G474作为开发用MCU。
Main components on the SuperCap2024V1.2R Power
SuperCap2024V1.2R Power bill of materials (BOM)
42 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | UCC27201ADR | SOP-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | INA240A1PW UCC27201ADR | SOP-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | AO3400A BSC070N10NS3G | TDSON-8-1_HandSolder | Q1 |
| 3 | BSC070N10NS3G | TDSON-8-1_HandSolder | Q2, Q3, Q4 |
| 2 | CONN_02X02_ODD_EVEN Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical_SMD | J1, J4 |
| 1 | CONN_01X02_MOUNTINGPIN Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical_SMD | J2 |
| 1 | CONN_01X04_MOUNTINGPIN Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical_SMD | J3 |
| 1 | 10k NTC | R_1206_3216Metric | TH1 |
| 2 | DSS34 TVS | D_SMC | D1, D2 |
| 1 | DSS34 SMF10A | D_SOD-123F | D3 |
| 1 | SMF3.3A SMF10A | D_SOD-123F | D4 |
| 1 | SMAJ28A SMF10A | D_SOD-123F | D5 |
| 1 | SMF10A | D_SOD-123F | D6 |
| 1 | 4.7U 10u 40A | PQ2617BHA | L1 |
| 2 | 100N 10u | C_0603_1608Metric | C1, C13 |
| 2 | 220u | CP_Elec_8x10 | C2, C6 |
| 2 | 10U 220u | CP_Elec_8x10 | C3, C5 |
| 1 | 20P 10u | C_1206_3216Metric | C4 |
| 1 | 100n | C_0603_1608Metric | C7 |
| 1 | 100N 100n | C_0603_1608Metric | C8 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10U 10u | C_1206_3216Metric | C9 |
| 4 | 100N 10u | C_1206_3216Metric | C10, C11, C12, C14 |
| 2 | 33R 120r | R_1206_3216Metric | R1, R2 |
| 3 | 33R 3.3r | R_0603_1608Metric | R3, R4, R5 |
| 1 | 10K 3.3r | R_0603_1608Metric | R6 |
| 3 | 2.2K 10k | R_0603_1608Metric | R7, R8, R10 |
| 1 | 2MR 10k | R_0603_1608Metric | R9 |
SuperCap2024V1.2R Power design files
The KiCad project lives in the hkustenterprize/RM2024-SuperCapacitorController repository on GitHub; these links point at the commit this page was built from.
SuperCap2024V1.2R Power: common questions
How big is the SuperCap2024V1.2R Power PCB?
The SuperCap2024V1.2R Power measures 41 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SuperCap2024V1.2R Power?
42 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SuperCap2024V1.2R Power design files?
From the hkustenterprize/RM2024-SuperCapacitorController repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SuperCap2024V1.2R Power design in my own project?
Yes, under the terms of its GPL-3.0 license, which hkustenterprize chose for the repository.
