About the Lava RSC Upgrade Board

Lava RSC Upgrade Board is an open source STM32 PCB design by hkzlab, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 21.8 × 42.4 mm, with 22 components from 12 distinct parts.

Its main chip is the 32F103C8T6, from the STM32 family. By type, the board carries 10 capacitors, 6 resistors, 2 connectors, 1 IC, 1 crystal and 1 diode.

It belongs with the retro computing designs in this gallery.

From the project

A board to perform upgrades to the Lava RSC Lite famiclone

Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.

I want to stress this out: You're on your own using this. It works for me, I cannot give guarantees to you. Also, do not go bother the Lava RSC people about it for support!!!

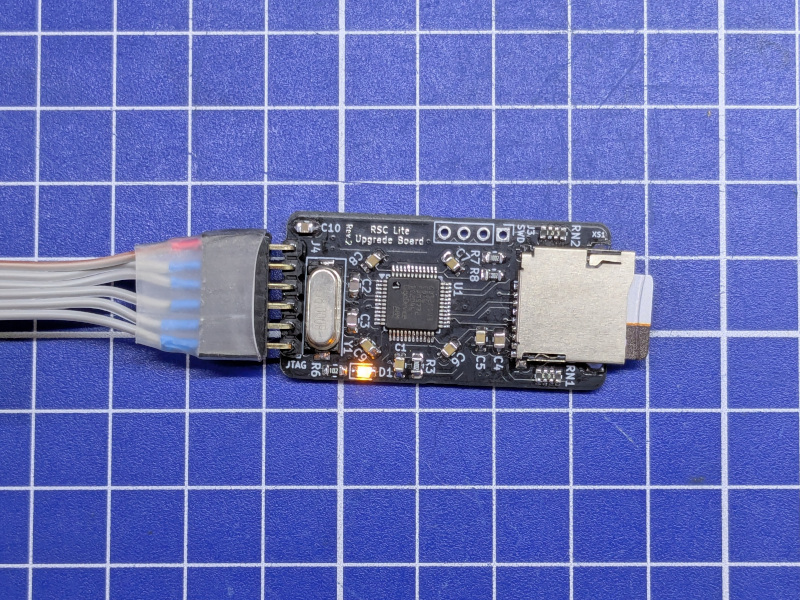

Lava RSC Upgrade Board, from the project README
From the project README

Main components on the Lava RSC Upgrade Board

32F103C8T6

Lava RSC Upgrade Board bill of materials (BOM)

22 components, 12 distinct parts.

QtyPartRefs
1
32F103C8T6
U1
1
8Mhz
Y1
1
SWD
J3
1
JTAG
J4
1
uSD_push_push
XS1
1
ACT
D1
6
100nF
C1, C5, C6, C7, C8, C9
2
22pF
C2, C3
2
10uF
C4, C10
3
10K
R3, R7, R8
1
1K
R6
2
10K
RN1, RN2

Lava RSC Upgrade Board design files

The KiCad project lives in the hkzlab/Lava_RSC_Upgrade_Board repository on GitHub; these links point at the commit this page was built from.

Lava RSC Upgrade Board: common questions

What microcontroller does the Lava RSC Upgrade Board use?

The Lava RSC Upgrade Board is built around the 32F103C8T6, from the STM32 family.

How big is the Lava RSC Upgrade Board?

The Lava RSC Upgrade Board measures 21.8 × 42.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lava RSC Upgrade Board?

22 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lava RSC Upgrade Board design files?

From the hkzlab/Lava_RSC_Upgrade_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Lava RSC Upgrade Board design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Lava RSC Upgrade Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
