About the Didot PCB
Didot is an open source PCB design by idan, published on GitHub. It is a 2-layer board measuring 156.2 × 118.1 mm, with 66 components from 10 distinct parts.
Other key parts include the nice!nano. By type, the board carries 2 connectors and 1 IC.
It belongs with the keyboards and iot & wireless designs in this gallery.
From the project

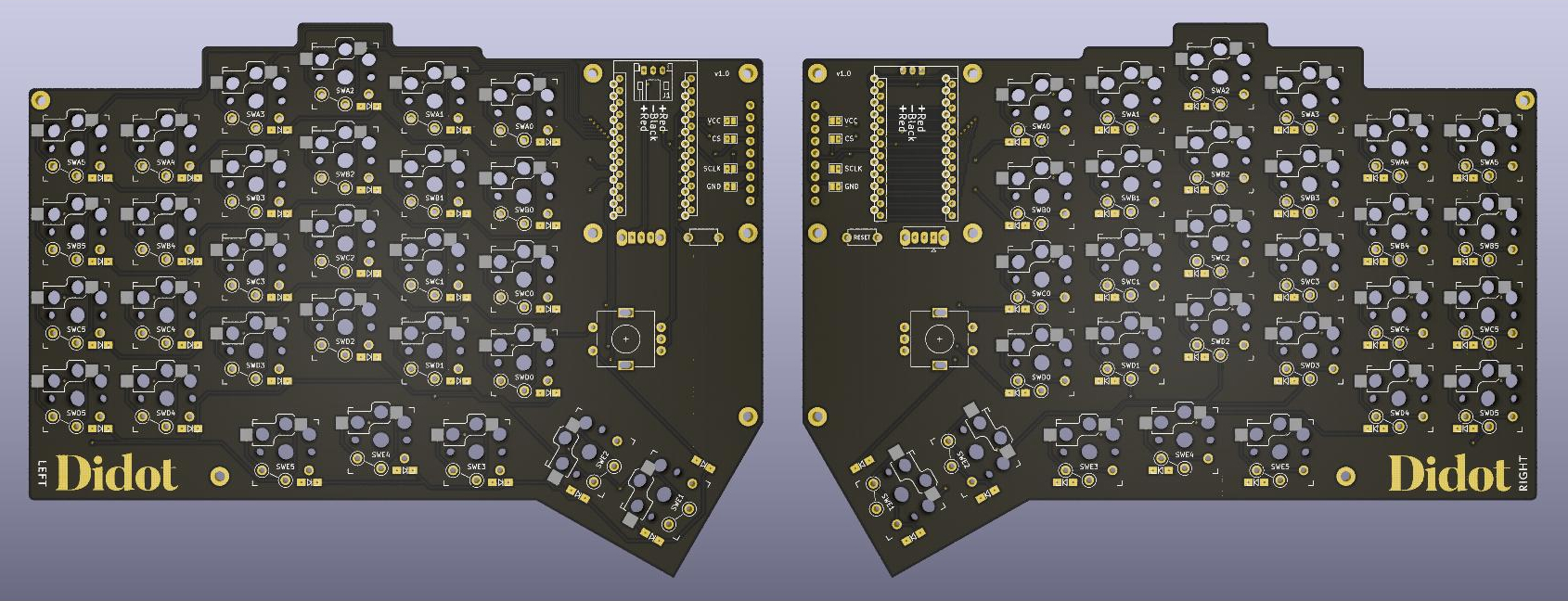

A fully wireless split keyboard. 6×4+5 column-staggered, with encoder support.
A fully-wireless split keyboard. 6×4+5 column-staggered, with a rotary encoder.

Main components on the Didot
Didot bill of materials (BOM)
66 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | nice!nano | ProMicro | U1 |
| 1 | JST_BATTERY | JST_PH_S3B-PH-K_1x03_P2.00mm_Horizontal | J1 |
| 1 | Display Socket | 1X09_ROUND_70 | J2 |
| 30 | 1N4148W | Diode_SOD123 | DA0, DA1, DA2, DA3, DA4, DA5, DB0, DB1 +22 |
| 27 | SW_KEY | Kailh_socket_PG1350_optional_reversible | SWA0, SWA1, SWA2, SWA3, SWA4, SWA5, SWB0, SWB1 +19 |
| 2 | SW_KEY | Kailh_socket_PG1350_optional_reversible_1.5u | SWE1, SWE2 |
| 1 | Rotary_Encoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm-keebio_modified | SWENC1 |
| 1 | SW_SPDT | SW_Slide_1P2T_CK_OS102011MS2Q | SW_PWR1 |
| 1 | SW_Push | TACT_SWITCH_TVBP06 | SW_RESET1 |
| 1 | HOLE | M2_HOLE_PCB | TH1 |
Didot design files
The KiCad project lives in the idan/didot repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCAD/didot.kicad_pcb
Didot: common questions
How big is the Didot PCB?
The Didot measures 156.2 × 118.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Didot?
66 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Didot design files?
From the idan/didot repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Didot design in my own project?
The repository has no license, so all rights stay with idan. Use it as a reference, and ask the author before reusing the design.
