Greaseweazle
About the Greaseweazle PCB
Greaseweazle is an open source PCB design by ifilot, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 95.3 × 49.7 mm, with 50 components from 31 distinct parts.
Other key parts include the AT32F403, AMS1117-3.3, 74LS07 and USBLC6-2SC6. By type, the board carries 18 capacitors, 14 resistors, 5 ICs, 5 connectors, 3 diodes and 1 crystal.
From the project
Independent Greaseweazle hardware derivative accompanied by GreaseGUI

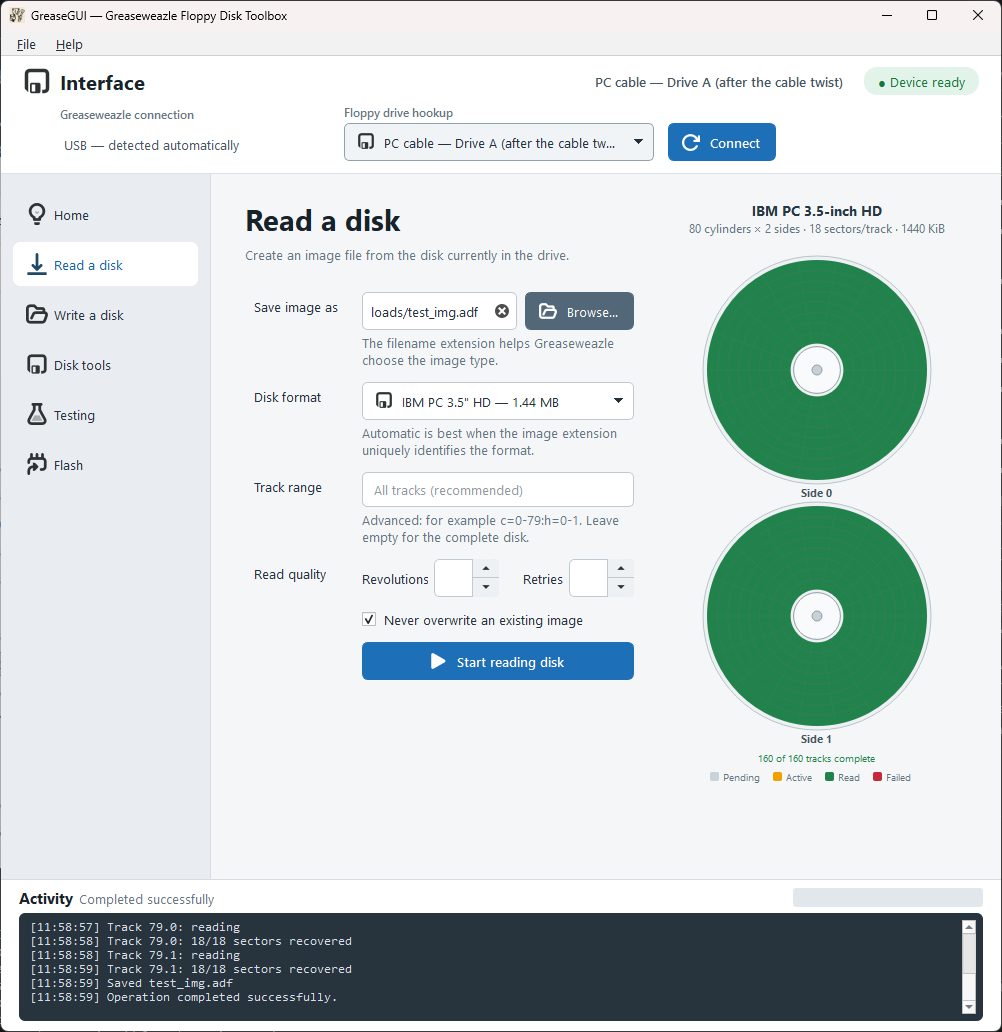

An independent Greaseweazle hardware derivative accompanied by GreaseGUI, a friendly stand-alone Qt 6 application for reading, writing, and maintaining floppy disks. GreaseGUI communicates directly with compatible Greaseweazle firmware over USB.
GreaseGUI turns the common Greaseweazle workflows into a guided desktop experience while retaining direct access to the important drive, format, track-range, retry, and verification controls.
Main components on the Greaseweazle
Greaseweazle bill of materials (BOM)
50 components, 31 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AT32F403 | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 2 | 74LS07 | SOIC-14_3.9x8.7mm_P1.27mm | U3, U4 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U5 |
| 1 | 8MHZ 8MHz | Crystal_SMD_5032-2Pin_5.0x3.2mm | Y1 |
| 1 | PWR | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | ACTY | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | CONN_02X17_ODD_EVEN Conn_02x17_Odd_Even | PinHeader_2x17_P2.54mm_Vertical | J3 |
| 1 | DEBUG | PinHeader_2x06_P2.54mm_Vertical | J4 |
| 1 | Berg | PinHeader_1x04_P2.54mm_Vertical | J5 |
| 1 | SMD0805-100 | Fuse_0805_2012Metric | F1 |
| 1 | Jumper | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | HRO-TYPE-C-31-M-12 | HRO-TYPE-C-31-M-12-HandSoldering | USB1 |
| 1 | PWR | LED_0805_2012Metric | D1 |
| 1 | ACT | LED_0805_2012Metric | D2 |
| 1 | SMF0.5A | D_SOD-123F | D3 |
| 1 | FerriteBead | R_0805_2012Metric | FB1 |
| 10 | 100NF 100nF | C_0805_2012Metric | C1, C4, C6, C7, C8, C12, C13, C15 +2 |
| 2 | 30PF 30pF | C_0805_2012Metric | C2, C3 |
| 2 | 1UF 1uF | C_0805_2012Metric | C5, C9 |
Show 11 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 10UF 10uF | C_0805_2012Metric | C10, C11, C14 |
| 1 | 4.7NF 4.7nF | C_0805_2012Metric | C18 |
| 2 | 22 | R_0805_2012Metric | R1, R2 |
| 1 | 2.4K 200 | R_0805_2012Metric | R3 |
| 1 | 5.1K 200 | R_0805_2012Metric | R4 |
| 1 | 1k | R_0805_2012Metric | R5 |
| 1 | 1M | R_0805_2012Metric | R10 |
| 2 | 5.1K 5.1k | R_0805_2012Metric | R11, R12 |
| 2 | 2.4K 2.4k | R_0805_2012Metric | R13, R14 |
| 3 | 10K 10k | R_Array_Concave_4x0603 | RN1, RN2, RN3 |
| 1 | 1k | R_Array_Concave_4x0603 | RN4 |
Greaseweazle design files
The KiCad project lives in the ifilot/greaseweazle repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/greaseweazle.kicad_pcb
- Schematicpcb/greaseweazle.kicad_sch
- BOMpcb/greaseweazle.csv
Greaseweazle: common questions
How big is the Greaseweazle PCB?
The Greaseweazle measures 95.3 × 49.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Greaseweazle?
50 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Greaseweazle design files?
From the ifilot/greaseweazle repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Greaseweazle design in my own project?
Yes, under the terms of its GPL-3.0 license, which ifilot chose for the repository.
