Di mipi lcd
About the Di mipi lcd PCB

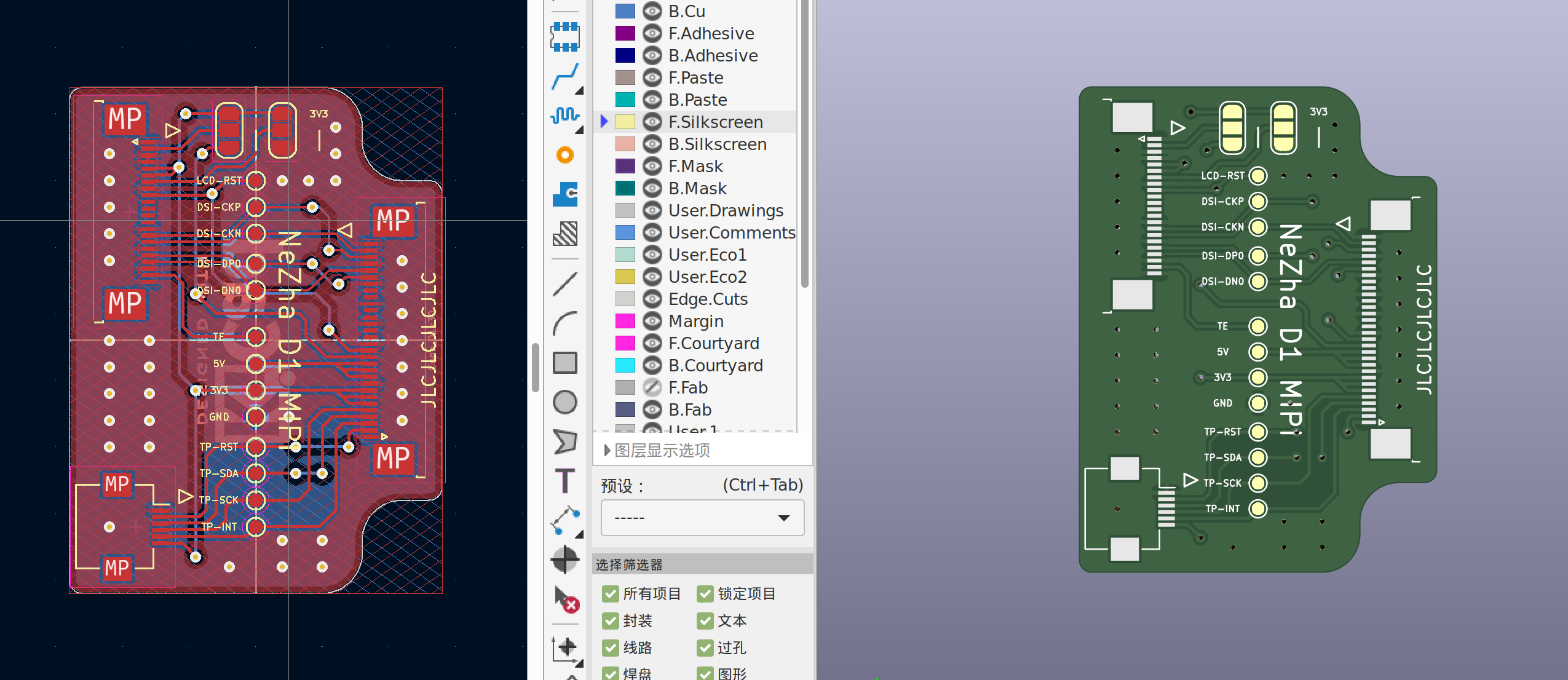

Di mipi lcd is an open source PCB design by imliubo, published on GitHub under the MIT license. It is a 2-layer board measuring 28 × 38 mm, with 5 components from 4 distinct parts.
By type, the board carries 3 connectors and 2 jumpers.
It belongs with the displays & leds designs in this gallery.
From the project
My opensource KiCad projects
Di mipi lcd bill of materials (BOM)
5 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x22 | TE_2-1734839-2_1x22-1MP_P0.5mm_Horizontal | J1 |
| 1 | Conn_01x30 | TE_3-1734839-0_1x30-1MP_P0.5mm_Horizontal | J2 |
| 1 | Conn_01x06 | Hirose_FH12-6S-0.5SH_1x06-1MP_P0.50mm_Horizontal | J3 |
| 2 | SolderJumper_3_Open | SolderJumper-3_P1.3mm_Open_RoundedPad1.0x1.5mm_NumberLabels | JP1, JP2 |
Di mipi lcd design files
The KiCad project lives in the imliubo/kicad-projects repository on GitHub; these links point at the commit this page was built from.
Di mipi lcd: common questions
How big is the Di mipi lcd PCB?
The Di mipi lcd measures 28 × 38 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Di mipi lcd?
5 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Di mipi lcd design files?
From the imliubo/kicad-projects repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Di mipi lcd design in my own project?
Yes, under the terms of its MIT license, which imliubo chose for the repository.
