OpenXsensor
About the OpenXsensor PCB
OpenXsensor is an open source PCB design by Ingwie, published on GitHub. It is a 2-layer board measuring 32.4 × 33 mm, with 40 components from 27 distinct parts.
By type, the board carries 19 connectors, 12 capacitors and 9 resistors.

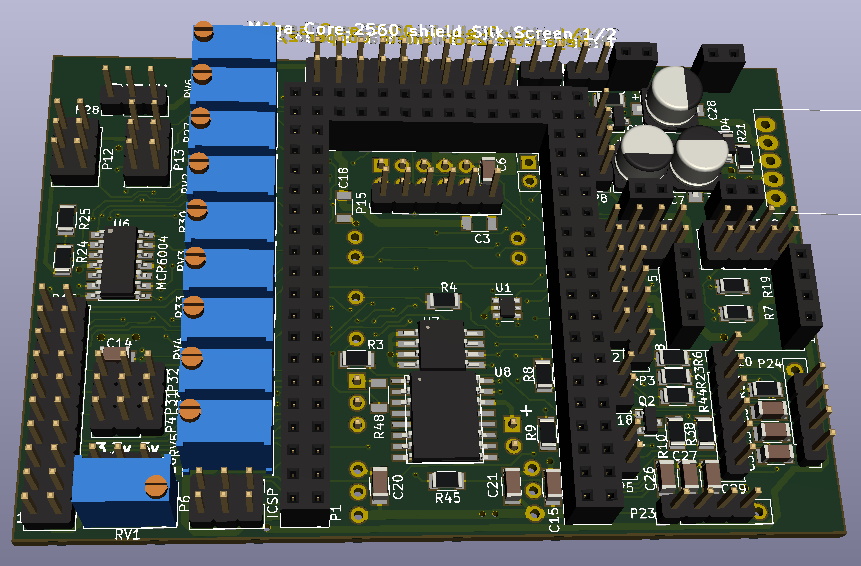

From the project
OpenAVRc Hardware and addons
This is the hardware / addons part of OpenAVRc.
For source code or documentation : Visit https://github.com/Ingwie/OpenAVRc_Dev
You will find here all hardwares developped by the OpenAVRc Team.
This is the main board used by our OpenAVRc project. V2.0 (deprecated) V2.1 * V2.2 (actually under development)
1. Long Range hardwares solutions MultiProtocol&Lora ExpressLrs Crossfire_TBS
OpenXsensor bill of materials (BOM)
40 components, 27 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Digital | Socket_Strip_Arduino_1x12 | P1 |
| 1 | Analog | Socket_Strip_Arduino_1x12 | P2 |
| 2 | ADC | Socket_Strip_Arduino_1x02 | P3, P4 |
| 1 | GPS | Pin_Header_Straight_1x04_Pitch2.54mm | P5 |
| 1 | HUB/SPORT | Pin_Header_Straight_1x03_Pitch2.54mm | P6 |
| 1 | PPM | Pin_Header_Straight_1x02_Pitch2.54mm | P7 |
| 1 | FUEL | Pin_Header_Straight_1x03_Pitch2.54mm | P8 |
| 1 | RPM | Pin_Header_Straight_1x03_Pitch2.54mm | P9 |
| 1 | VFAS/COURANT | Pin_Header_Straight_1x04_Pitch2.54mm | P10 |
| 1 | GY-86 | Pin_Header_Straight_1x05_Pitch2.54mm | P11 |
| 1 | NTC1 | Pin_Header_Straight_1x02_Pitch2.54mm | P12 |
| 1 | NTC2 | Pin_Header_Straight_1x02_Pitch2.54mm | P13 |
| 1 | ALIM | Pin_Header_Straight_1x03_Pitch2.54mm | P14 |
| 1 | SEQUENCEUR | Pin_Header_Straight_1x05_Pitch2.54mm | P15 |
| 1 | 4S | Pin_Header_Straight_1x05_Pitch2.54mm | P16 |
| 1 | ADS1115 | Pin_Header_Straight_1x10_Pitch2.54mm | P17 |
| 1 | MS4525DO | Pin_Header_Straight_1x04_Pitch2.54mm | P18 |
| 1 | MPXV7002DP | Pin_Header_Straight_1x03_Pitch2.54mm | P19 |
| 10 | 100nF | C_1206 | C1, C2, C3, C4, C7, C8, C9, C10 +2 |
| 2 | 10uF | CP_EIA-3216-18_Kemet-A_Pad1.58x1.35mm_HandSolder | C5, C6 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 10K | R_1206 | R1, R3, R5 |
| 1 | 12K | R_1206 | R4 |
| 1 | 8,2K | R_1206 | R7 |
| 1 | 22K | R_1206 | R8 |
| 1 | 27K | R_1206 | R9 |
| 1 | 220 | R_1206 | R10 |
| 1 | 0 | R_1206 | R11 |
OpenXsensor design files
The KiCad project lives in the Ingwie/OpenAVRc_Hw repository on GitHub; these links point at the commit this page was built from.
OpenXsensor: common questions
How big is the OpenXsensor PCB?
The OpenXsensor measures 32.4 × 33 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the OpenXsensor?
40 components, from 27 distinct parts. The full bill of materials is listed on this page.
Where can I download the OpenXsensor design files?
From the Ingwie/OpenAVRc_Hw repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the OpenXsensor design in my own project?
The repository has no license, so all rights stay with Ingwie. Use it as a reference, and ask the author before reusing the design.
