Isw oozy

is-watering·isw_oozy·hardware/pcb/isw-oozy-pcb.kicad_pcb

Isw oozy PCB layout, top view — open source board by is-watering

About the Isw oozy PCB

Isw oozy is an open source PCB design by is-watering, published on GitHub under the MIT license. It is a 2-layer board measuring 277 × 120 mm, with 132 components from 8 distinct parts.

Other key parts include the ProMicro_RP2040. By type, the board carries 58 switches, 58 diodes, 12 LEDs, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

An orthoish keyboard with offset clusters.

ISW-OOZY is an orthoish keyboard with offset clusters.

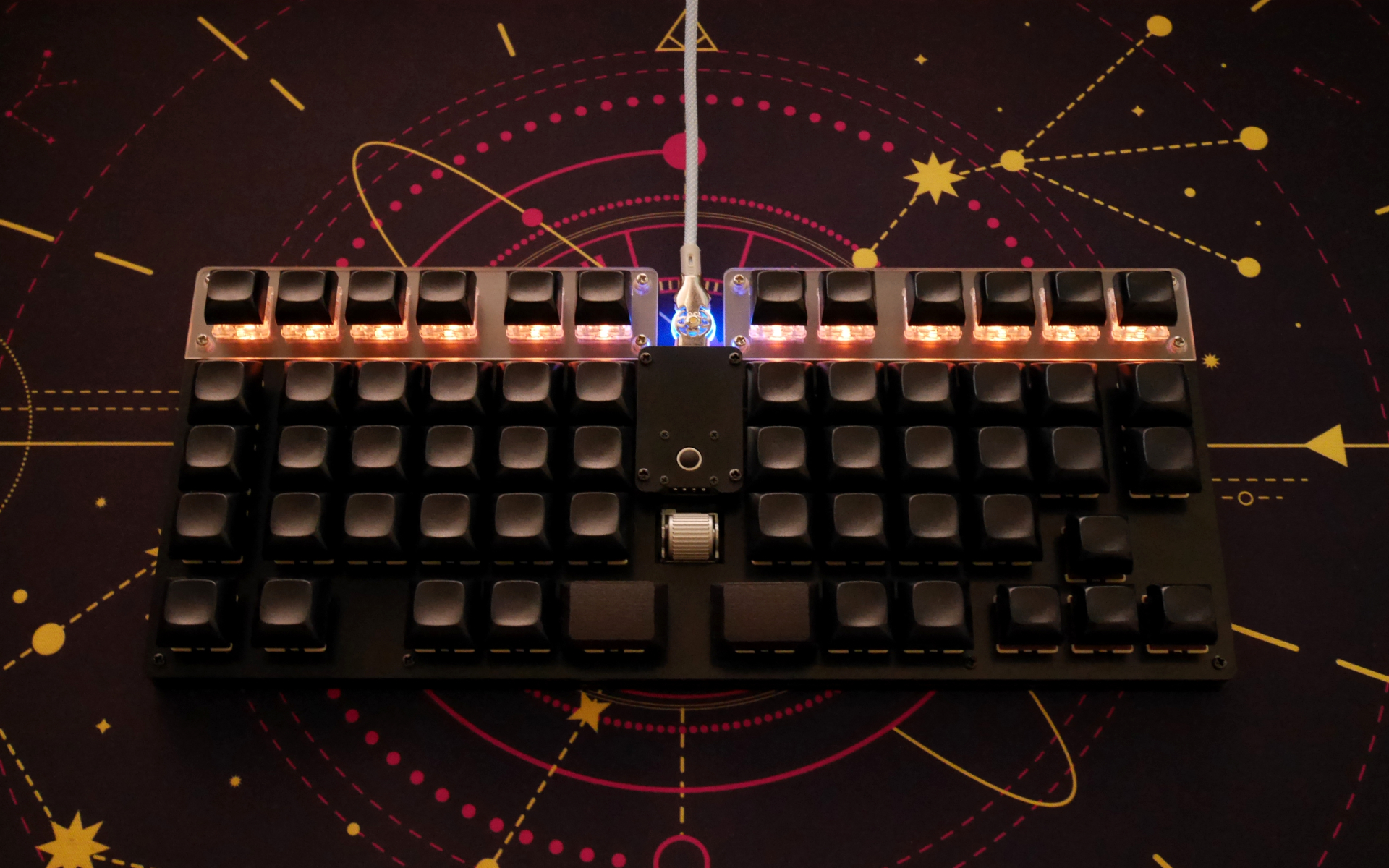

Isw oozy, from the project README
From the project README

Main components on the Isw oozy

ProMicro_RP2040

Isw oozy bill of materials (BOM)

132 components, 8 distinct parts.

QtyPartRefs
1
ProMicro_RP2040
U1
1
OLED-128x32
J1
1
D
RE_D1
1
RotaryEncoder_Switch
RE_SW1
56
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +48
2
SW_Push
SW52, SW53
12
LED_SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +4
58
D
D1, D2, D3, D4, D5, D6, D7, D8 +50

Isw oozy design files

The KiCad project lives in the is-watering/isw_oozy repository on GitHub; these links point at the commit this page was built from.

Isw oozy: common questions

How big is the Isw oozy PCB?

The Isw oozy measures 277 × 120 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Isw oozy?

132 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Isw oozy design files?

From the is-watering/isw_oozy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Isw oozy design in my own project?

Yes, under the terms of its MIT license, which is-watering chose for the repository.
