Isw oozy plate switch

is-watering·isw_oozy·hardware/plate/isw-oozy-plate_switch.kicad_pcb

Isw oozy plate switch PCB layout, top view — open source board by is-watering

About the Isw oozy plate switch PCB

Isw oozy plate switch is an open source PCB design by is-watering, published on GitHub under the MIT license. It is a 2-layer board measuring 277 × 90.9 mm, with 58 components from 2 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

An orthoish keyboard with offset clusters.

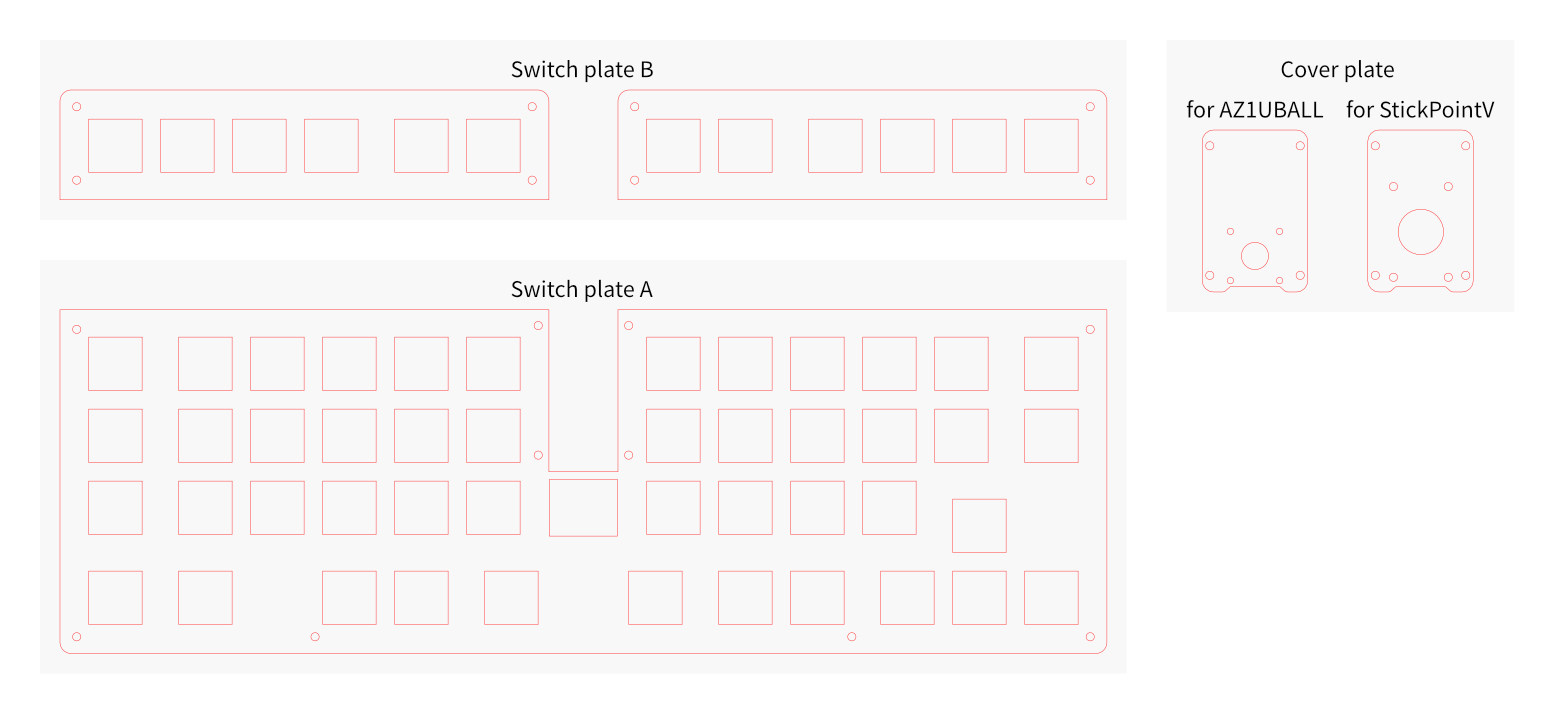

Isw oozy plate switch, from the project README
From the project README

Isw oozy plate switch bill of materials (BOM)

58 components, 2 distinct parts.

QtyPartRefs
56
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +48
2
SW_Push
SW52, SW53

Isw oozy plate switch design files

The KiCad project lives in the is-watering/isw_oozy repository on GitHub; these links point at the commit this page was built from.

Isw oozy plate switch: common questions

How big is the Isw oozy plate switch PCB?

The Isw oozy plate switch measures 277 × 90.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Isw oozy plate switch?

58 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Isw oozy plate switch design files?

From the is-watering/isw_oozy repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Isw oozy plate switch design in my own project?

Yes, under the terms of its MIT license, which is-watering chose for the repository.
