Lumen-132
About the Lumen-132 PCB
Lumen-132 is an open source PCB design by James328, published on GitHub under the MIT license. It is a board, with 170 components from 3 distinct parts.
By type, the board carries 156 diodes, 13 resistors and 1 connector.
It belongs with the wearables and displays & leds designs in this gallery.
From the project
An open-hardware LED wristwatch that tells time with light. No mechanical hands, no display module — time is shown by 132 individually-addressable LEDs in concentric rings on a PCB dial, their light carried to the face through optical guides set into a branded mask.

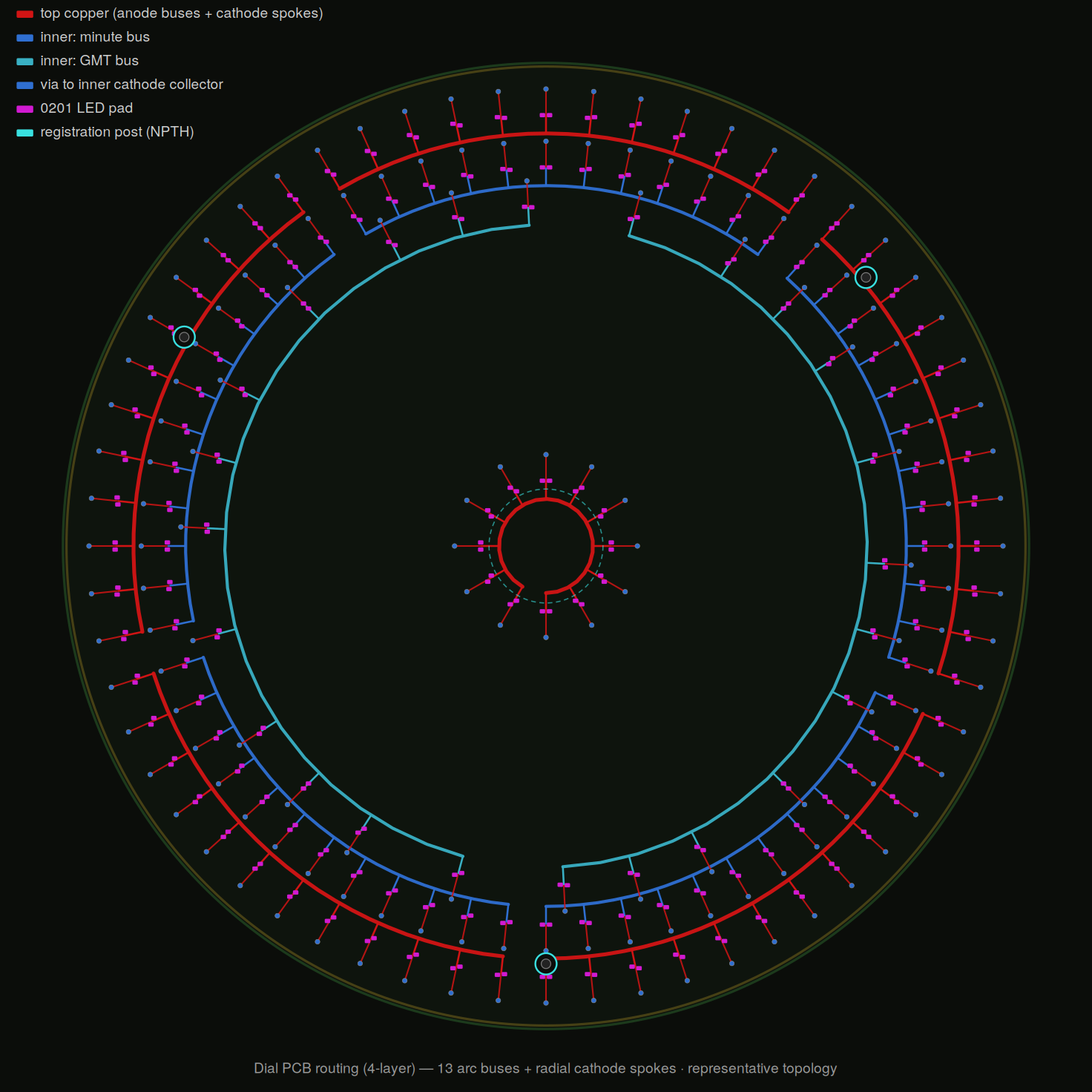

Generated artifacts for the 37 mm dial PCB (156 LEDs, 13-pin Charlieplex).
Lumen-132 bill of materials (BOM)
170 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | B2B_16 | Conn_16 | J1 |
| 156 | LED | LED_0201 | D1, D2, D3, D4, D5, D6, D7, D8 +148 |
| 13 | 47R | R_0402 | R1, R2, R3, R4, R5, R6, R7, R8 +5 |
Lumen-132 design files
The KiCad project lives in the James328/Lumen-132 repository on GitHub; these links point at the commit this page was built from.
- Netlistpcb/dial/dial.net
- BOMbom/LED_Watch_BOM.xlsx
Lumen-132: common questions
How many components are on the Lumen-132?
170 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Lumen-132 design files?
From the James328/Lumen-132 repository on GitHub, which has a netlist and the BOM; the links under Design files point to each one.
Can I use the Lumen-132 design in my own project?
Yes, under the terms of its MIT license, which James328 chose for the repository.
