Ligra front
About the Ligra front PCB
Ligra front is an open source PCB design by Jana-Marie, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 106.7 × 106.7 mm, with 4 components from 1 distinct parts.
From the project
an open source image projector build from scratch and based off of flea market parts.

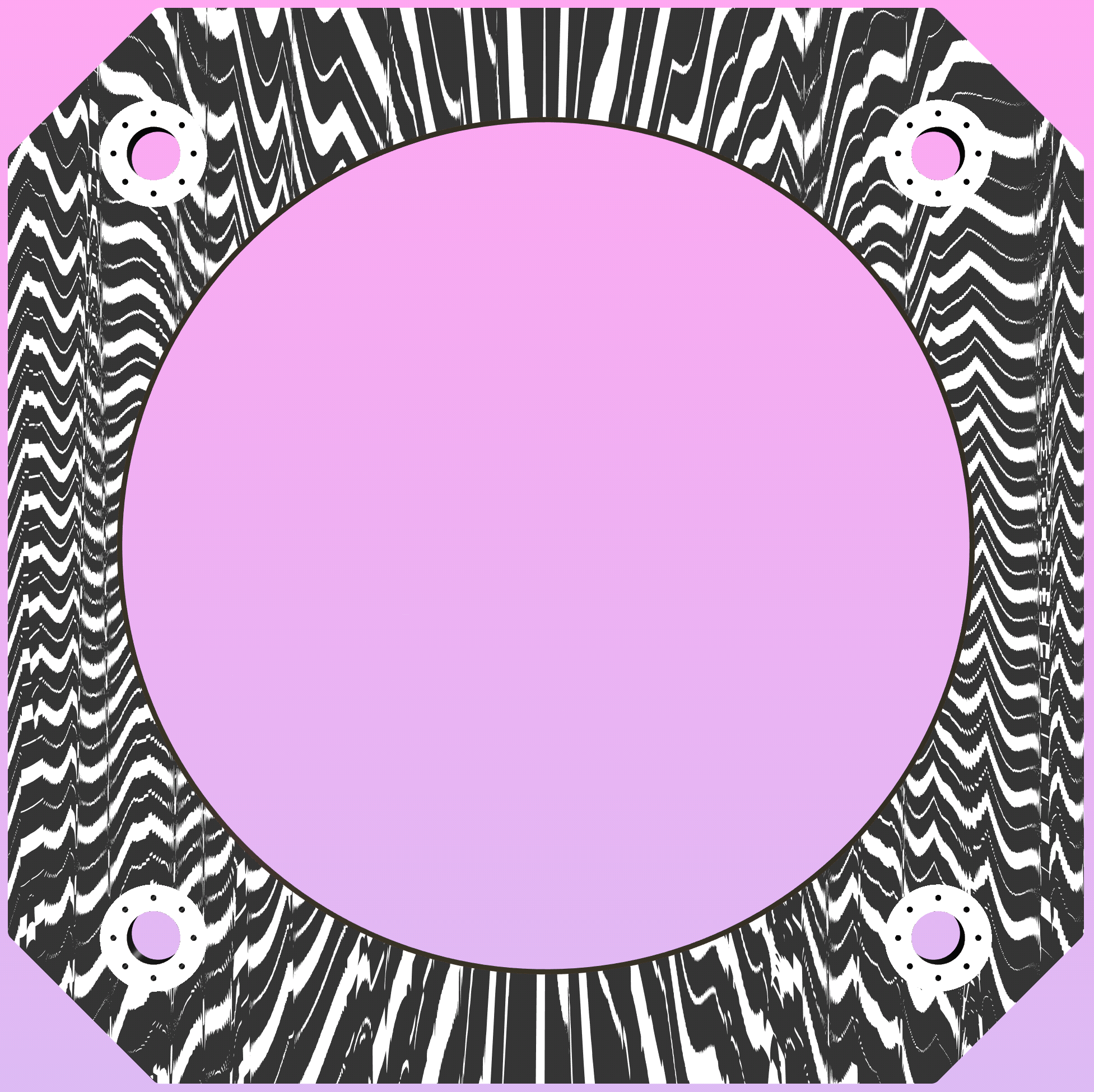

There is not a whole lot to say about this board, it serves no electrical function, merely an aesthetic one, as well as a protector against bumping into bare aluminium.
Please order them with a thickness of 1.6mm.
Ligra front bill of materials (BOM)
4 components, 1 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | Mount | MountingHole_5.3mm_M5_Pad_Via | J1, J2, J3, J4 |
Ligra front design files
The KiCad project lives in the Jana-Marie/ligra repository on GitHub; these links point at the commit this page was built from.
Ligra front: common questions
How big is the Ligra front PCB?
The Ligra front measures 106.7 × 106.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ligra front?
4 components, from 1 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ligra front design files?
From the Jana-Marie/ligra repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ligra front design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Jana-Marie chose for the repository.
