LogicModule PCB layout, top view — open source AVR/Arduino board by JanBurp

About the LogicModule PCB

LogicModule is an open source AVR/Arduino PCB design by JanBurp, published on GitHub. It is a 2-layer board measuring 29.2 × 110.1 mm, with 59 components from 32 distinct parts.

Its main chip is the ARDUINO_NANO_V2.X, from the AVR/Arduino family. By type, the board carries 23 resistors, 17 diodes, 11 connectors, 4 transistors, 3 switches and 1 module.

It belongs with the audio designs in this gallery.

From the project

An eurorack logic module with several logic functions and a clock divider mode. Build around an arduino nano. So could be reprogrammed.

An Eurorack module based around a Arduino Nano.

With AND, OR, XOR logic functions, a Flip Flip (Q), a Clock Divider mode, and more.

- Basic logic funcions AND, OR, XOR (using the first inputs on the left side). - Flip Flop (Q) (first input will SET, second input will RESET). - NOT input, or MODE button, to inverse all logic outputs (NAND, NOR, NXOR, NQ) - CLOCK input, when present, all Logic outputs only are HIGH when CLOCK is HIGH - RESET button to reset Q and CLOCK

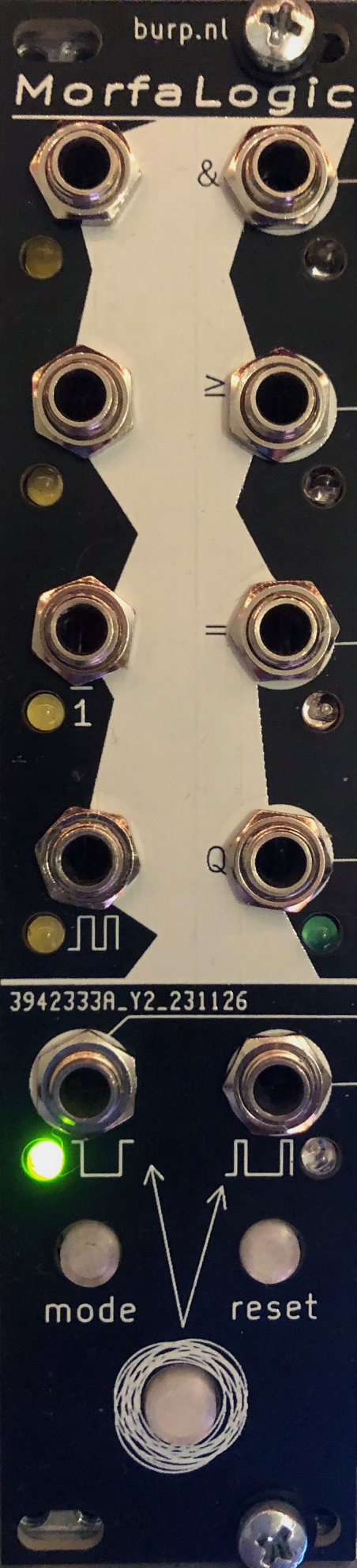

LogicModule, from the project README
From the project README

Main components on the LogicModule

ARDUINO_NANO_V2.X

LogicModule bill of materials (BOM)

59 components, 32 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ARDUINO_NANO_V2.X
Arduino_Nano_v2.x
A1
4
BC337
Q1, Q2, Q3, Q4
1
INPUT A
J1
1
INPUT B
J2
1
AND
J3
1
OR
J4
1
XOR
J5
1
INPUT NOT
J6
1
Q
J7
1
NGATE
J8
1
INPUT CLOCK
J9
1
TRIG
J10
1
CONN_02X05_ODD_EVEN
Conn_02x05_Odd_Even
J11
1
Button
SW1
1
Mode
SW2
1
Reset
SW3
1
LED button
D1
1
LED Mode
D2
1
LED Reset
D3
4
1N4148
D4, D7, D11, D15
Show 12 more
QtyPartRefs
1
LED inpA
D5
1
LED AND
D6
1
LED inpB
D8
1
LED OR
D9
1
LED XOR
D10
1
LED inpNOT
D12
1
LED Q
D13
1
LED ngate
D14
1
LED trig
D16
1
LED inpCLK
D17
19
1k
R1, R2, R3, R5, R6, R8, R9, R10 +11
4
10K
10k
R4, R7, R14, R20

LogicModule design files

The KiCad project lives in the JanBurp/MorphaLogic repository on GitHub; these links point at the commit this page was built from.

LogicModule: common questions

What microcontroller does the LogicModule use?

The LogicModule is built around the ARDUINO_NANO_V2.X, from the AVR/Arduino family.

How big is the LogicModule PCB?

The LogicModule measures 29.2 × 110.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LogicModule?

59 components, from 32 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LogicModule design files?

From the JanBurp/MorphaLogic repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the LogicModule design in my own project?

The repository has no license, so all rights stay with JanBurp. Use it as a reference, and ask the author before reusing the design.
