Cluster

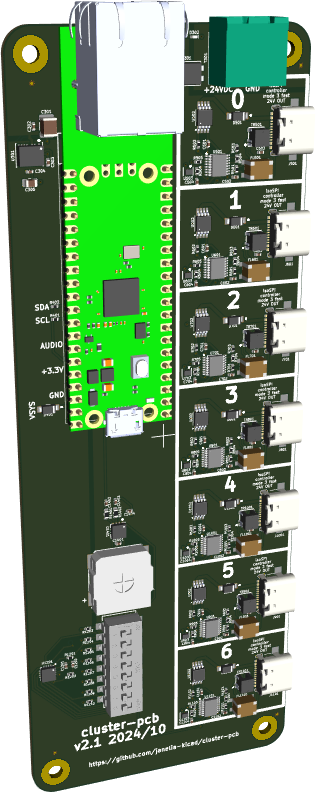

About the Cluster PCB
Cluster is an open source PCB design by janelia-kicad, published on GitHub under the Custom license license. It is a 4-layer board measuring 60 × 160 mm, with 154 components from 31 distinct parts.
Other key parts include the TPSM365R6V5RDNR, LTC6820HMS#3ZZTRPBF, C2653785, SN74LVC1G125DRYR and TCA6408ARGTR. By type, the board carries 57 resistors, 39 capacitors, 24 ICs, 10 diodes, 7 connectors and 1 switch.
From the project
PCB for each cluster of prisms in the Voigts Lab honeycomb maze.
- Repository Info - Images - Schematic - PCB - Bill of Materials - Development
- Project Name: cluster-pcb - Synopsis: PCB for each cluster of prisms in the Voigts Lab honeycomb maze. - Documentation Version: 2.1.0 - Pcb Version: 2.1 - Enclosure Version: 1.0 - Supplemental BOM Version: 2.1.0 - Release Date: 2025-05-23 - Creation Date: 2024-06-28 - Kicad Version: 9.0 - License: BSD-3-Clause - URL: - Author: Peter Polidoro - Email: peter@polidoro.io - Copyright: 2025 Howard Hughes Medical Institute - References: - - W5500-EVB-Pico
Main components on the Cluster
Cluster bill of materials (BOM)
154 components, 31 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TPSM365R6V5RDNR Texas Instruments | RDN0011A-MFG | U301 |
| 7 | LTC6820HMS#3ZZTRPBF LTC6820HMS-TRPBF Analog Devices | MS_05-08-1669_ADI | U501, U601, U701, U801, U901, U1001, U1101 |
| 7 | C2653785 TPS1H200AQDGNRQ1 Texas Instruments | SOP65P490X110-9N | U502, U602, U702, U802, U902, U1002, U1102 |
| 7 | SN74LVC1G125DRYR Buffer_74LVC1G125DRYR Texas Instruments | DRY6 | U503, U603, U703, U803, U903, U1003, U1103 |
| 1 | TCA6408ARGTR Texas Instruments | QFN50P300X300X100-17N | U1201 |
| 1 | TPA6204A1DRBR Texas Instruments | DRB8_1P75X1P5 | U1401 |
| 7 | GT-USB-7047C Connector_USB_C_Receptacle_USB2.0_16P_GT-USB-7047C G-Switch | USB_C_Receptacle_GT-USB-7047C_16P_TopMnt_Horizontal | J501, J601, J701, J801, J901, J1001, J1101 |
| 7 | ACT45B-220-2P-TL003 Choke_CMF_ACT45B-220-2P TDK | SMD_0-2P-TL003_TDK-L | FL501, FL601, FL701, FL801, FL901, FL1001, FL1101 |
| 1 | KLJ-01304T-08R07W Speaker_13x13mm_8Ohm_700mW KELIKING | Speaker_13x13mm_KLJ-01304T-08R07W | SP1401 |
| 1 | SDA08H1SBDR SW_DIP_x08_SDA08H1SBDR C&K | SW_DIP_SPSTx08_Slide_SDA08H1SBDR | SW1201 |
| 1 | 1757242 TERM_BLK_HDR_2POS_90DEG_0.2IN Phoenix Contact | PHOENIX_1757242 | T301 |
| 7 | FB020G00 1:1 Dongguan Mentech Optical & Magnetic | FB020G00 | TR501, TR601, TR701, TR801, TR901, TR1001, TR1101 |
| 1 | SBRT15U50SP5-13 D_50V_15A Diodes Incorporated | POWERDI5_DIO | D301 |
| 1 | APHHS1005SURCK LED_RED Kingbright | LED_0402-1005_KNB | D302 |
| 1 | MBR120VLSFT1G D_SCHOTTKY_20V_1A onsemi | SOD-123FL | D401 |
| 7 | DSK36 D_SCHOTTKY_20V_1A MDD(Microdiode Semiconductor) | SOD-123FL | D501, D601, D701, D801, D901, D1001, D1101 |
| 1 | FS32X335K500EGG 3.3uF_50V PSA(Prosperity Dielectrics) | C_1210_3225Metric | C301 |
| 24 | GRM155R62A104KE14D 0.1uF_100V Murata Electronics | C_0402_1005Metric | C302, C501, C502, C504, C601, C602, C604, C701 +16 |
| 2 | GRT155R61E105KE01D 1uF_25V Murata Electronics | C_0402_1005Metric | C303, C304 |
| 1 | CGA0805X5R476M100MT 47uF_10V HRE | C_0805_2012Metric | C305 |
Show 11 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 7 | 0402CG270J500NT 27pF_50V FH (Guangdong Fenghua Advanced Tech) | C_0402_1005Metric | C503, C603, C703, C803, C903, C1003, C1103 |
| 1 | CL05A105KL5NRNC 1uF_35V Samsung Electro-Mechanics | C_0402_1005Metric | C1401 |
| 3 | GRT155C81E224KE01D 0.22uF_25V Murata Electronics | C_0402_1005Metric | C1402, C1403, C1404 |
| 1 | RA73F2A2K32BTD 2.32k TE Connectivity Passive Product | R_0805_2012Metric | R301 |
| 16 | ERJ2GEJ182X 1.8k PANASONIC | R_0402_1005Metric | R401, R402, R505, R506, R605, R606, R705, R706 +8 |
| 7 | 0402WGF1000TCE 100 UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R501, R601, R701, R801, R901, R1001, R1101 |
| 7 | 0402WGF4701TCE 4.7k UNI-ROYAL(Uniroyal Elec) | R_0402_1005Metric | R502, R602, R702, R802, R902, R1002, R1102 |
| 7 | RC0402FR-071K4L 1.4k YAGEO | R_0402_1005Metric | R503, R603, R703, R803, R903, R1003, R1103 |
| 7 | ERJ2RKF6040X 604 PANASONIC | R_0402_1005Metric | R504, R604, R704, R804, R904, R1004, R1104 |
| 10 | ERJ2GEJ103X 10.0k PANASONIC | R_0402_1005Metric | R1201, R1202, R1203, R1204, R1205, R1206, R1207, R1208 +2 |
| 2 | SCR0603F40K 40k VO | R_0603_1608Metric | R1401, R1402 |
Cluster design files
The KiCad project lives in the janelia-kicad/cluster-pcb repository on GitHub; these links point at the commit this page was built from.
Cluster: common questions
How big is the Cluster PCB?
The Cluster measures 60 × 160 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Cluster?
154 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cluster design files?
From the janelia-kicad/cluster-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Cluster design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
