Y arena odor controller PCB layout, top view — open source NXP board by janelia-kicad

About the Y arena odor controller PCB

Y arena odor controller is an open source NXP PCB design by janelia-kicad, published on GitHub under the Custom license license. It is a 2-layer board measuring 74.9 × 80.7 mm, with 101 components from 16 distinct parts.

Its main chip is the 0305-0-15-15-47-27-10-0, from the NXP family. Other key parts include the DRV103U. By type, the board carries 28 resistors, 20 diodes, 19 capacitors, 10 switches, 10 inductors and 9 ICs.

From the project

This board controls the y-arena odors for the Janelia Turner lab.

- Repository Information - Description - Images - Schematic - Gerbers - Bill of Materials - PCB Parts - Supplemental Parts - Vendor Parts Lists - Supplemental Documentation - Assembly Instructions - Manufacturing Archive

- Name: y\arena\valve\controller - Version: 1.3 - License: Open-Source Hardware - URL: - Author: Peter Polidoro - Email:** peter@polidoro.io

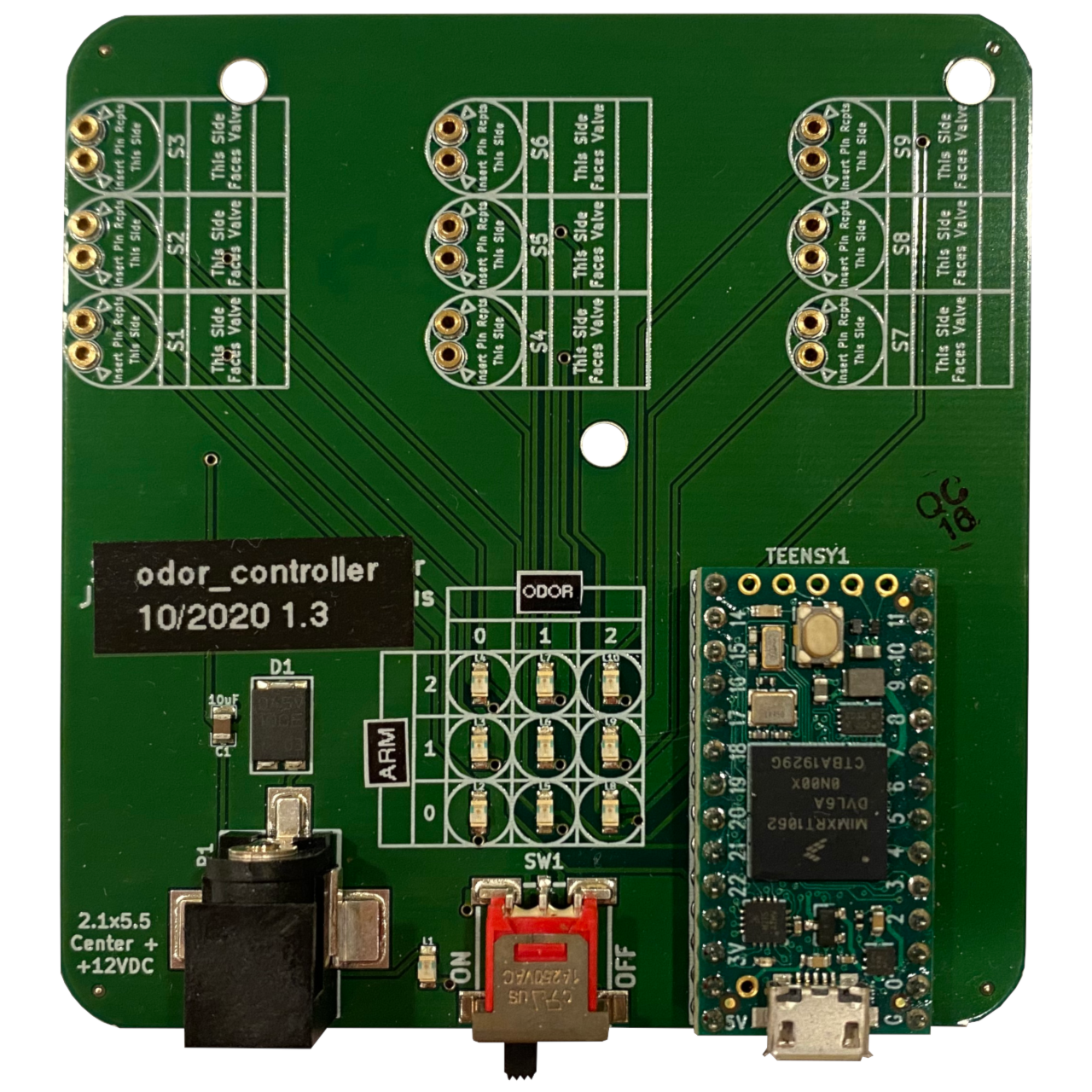

Y arena odor controller, from the project README
From the project README

Main components on the Y arena odor controller

DRV103U

Y arena odor controller bill of materials (BOM)

101 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
9
DRV103U
DRV103
Texas Instruments
U1, U2, U3, U4, U5, U6, U7, U8 +1
1
PJ-036AH-SMT
PWR_JACK_2.1x5.5_SMD_RA
CUI Devices
P1
3
VAL**
MH1, MH2, MH3
9
0305-0-15-15-47-27-10-0
VAL**
Mill-Max Manufacturing Corp
S1, S2, S3, S4, S5, S6, S7, S8 +1
1
500ASSP1SM6QE
SPDT_SLIDE_500A_SM
E-Switch
SW1
1
0305-0-15-15-47-27-10-0
TEENSY_4.0
Mill-Max Manufacturing Corp
TEENSY1
1
PMEG045V100EPDZ
DIODE_SCHOTTKY_45V_10A
Nexperia USA Inc.
D1
10
BAS116LPH4-7B
DIODE_LOW_REV_CURRENT_0402
Diodes Incorporated
D2, D3, D5, D7, D9, D11, D13, D15 +2
9
CDBQR0230L
DIODE_SCHOTTKY_0402
Comchip Technology
D4, D6, D8, D10, D12, D14, D16, D18 +1
10
LTST-C170GKT
LED_GRN
Lite-On Inc.
L1, L2, L3, L4, L5, L6, L7, L8 +2
1
C2012X5R1V106K085AC
10uF
TDK Corporation
C1
9
298D105X0016K2T
1uF
Vishay Sprague
C2, C4, C6, C8, C10, C12, C14, C16 +1
9
GCM155R71H153JA55D
15nF
Murata Electronics
C3, C5, C7, C9, C11, C13, C15, C17 +1
10
ERJ-PA2J391X
390
Panasonic Electronic Components
R1, R2, R5, R8, R11, R14, R17, R20 +2
9
ERJ-2RKF1503X
150k
Panasonic Electronic Components
R3, R6, R9, R12, R15, R18, R21, R24 +1
9
ERJ-2RKF2053X
205k
Panasonic Electronic Components
R4, R7, R10, R13, R16, R19, R22, R25 +1

Y arena odor controller design files

The KiCad project lives in the janelia-kicad/y_arena_odor_controller repository on GitHub; these links point at the commit this page was built from.

Y arena odor controller: common questions

What microcontroller does the Y arena odor controller use?

The Y arena odor controller is built around the 0305-0-15-15-47-27-10-0, from the NXP family.

How big is the Y arena odor controller PCB?

The Y arena odor controller measures 74.9 × 80.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Y arena odor controller?

101 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Y arena odor controller design files?

From the janelia-kicad/y_arena_odor_controller repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Y arena odor controller design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
