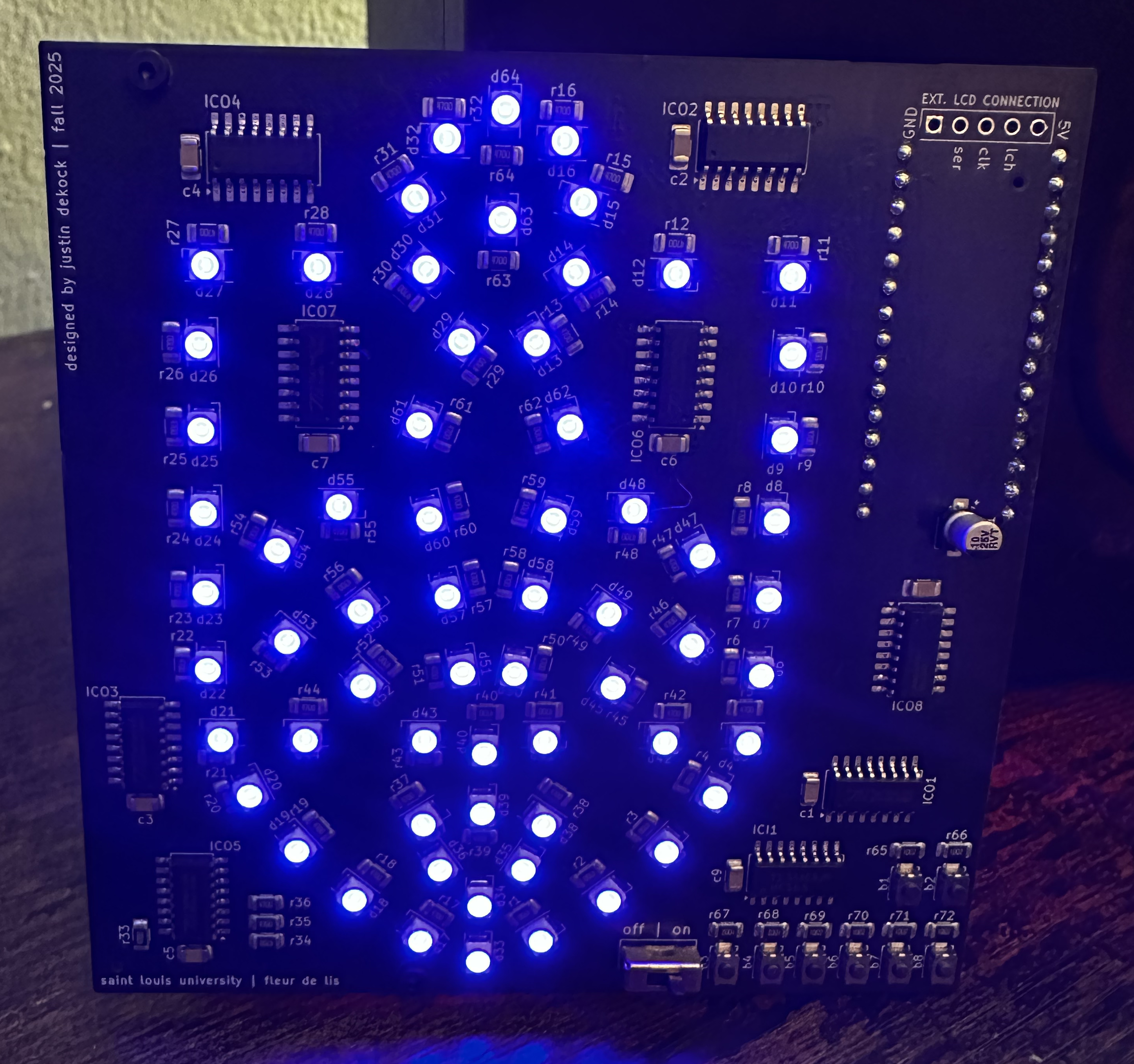

Slu leds c
About the Slu leds c PCB
Slu leds c is an open source PCB design by jdetok, published on GitHub. It is a 2-layer board measuring 99.6 × 100.9 mm, with 164 components from 9 distinct parts.
By type, the board carries 72 resistors, 64 diodes, 9 capacitors and 1 connector.
It belongs with the displays & leds designs in this gallery.
From the project
embedded code to run on arduino for SLU fleur de lis LEDs display
Slu leds c bill of materials (BOM)
164 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | lcd_out | 5pin_2.54 | J1 |
| 1 | 74HC165 | sop16_hc165 | ICI1 |
| 8 | 74HC595 | sop16_hc595 | ICO1, ICO2, ICO3, ICO4, ICO5, ICO6, ICO7, ICO8 |
| 8 | C720477 btn | btn_4x3 | b1, b2, b3, b4, b5, b6, b7, b8 |
| 1 | C3343 bc10µf_5054 | CP_Elec_4x5.4 | bc1 |
| 64 | LED | blue_led_3528 | d1, d2, d3, d4, d5, d6, d7, d8 +56 |
| 9 | 100NF 100nf | cap1206 | c1, c2, c3, c4, c5, c6, c7, c8 +1 |
| 64 | 470Ω | r_470Ω_1206 | r1, r2, r3, r4, r5, r6, r7, r8 +56 |
| 8 | 10KΩ | r_10KΩ_1206 | r65, r66, r67, r68, r69, r70, r71, r72 |
Slu leds c design files
The KiCad project lives in the jdetok/slu_leds_c repository on GitHub; these links point at the commit this page was built from.
Slu leds c: common questions
How big is the Slu leds c PCB?
The Slu leds c measures 99.6 × 100.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Slu leds c?
164 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Slu leds c design files?
From the jdetok/slu_leds_c repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Slu leds c design in my own project?
The repository has no license, so all rights stay with jdetok. Use it as a reference, and ask the author before reusing the design.
